HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

L.H.D.

am3zzw00004316

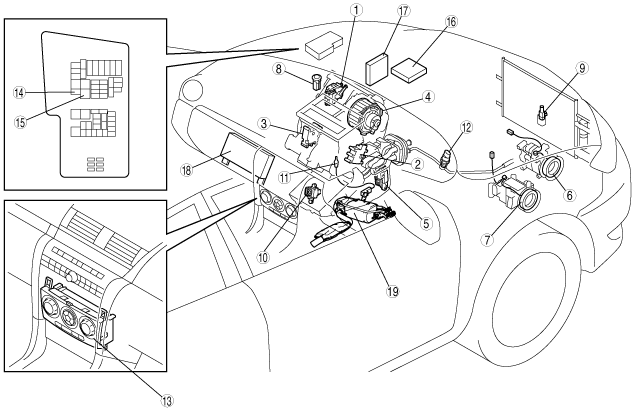

R.H.D.

am3zzw00004317

1	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See AIR MIX ACTUATOR INSPECTION.)
3	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See AIRFLOW MODE ACTUATOR INSPECTION.)
4	Blower motor (See BLOWER MOTOR REMOVAL.) (See BLOWER MOTOR INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
5	Power MOS FET (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION.) (See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION.)
6	Magnetic clutch (Z6, ZJ, ZY, L3 Turbo) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [ZJ, ZY, Z6].) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [L3 Turbo].) (See MAGNETIC CLUTCH ADJUSTMENT.) (See MAGNETIC CLUTCH INSPECTION [ZJ, ZY, Z6].) (See MAGNETIC CLUTCH INSPECTION [L3 Turbo].)
7	Magnetic clutch (LF, L3) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [LF, L3].) (See MAGNETIC CLUTCH ADJUSTMENT.) (See MAGNETIC CLUTCH INSPECTION [LF, L3].)
8	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
9	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
10	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
11	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
12	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SWITCH INSPECTION.)
13	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
14	A/C relay (See RELAY INSPECTION.)
15	Blower relay (See RELAY INSPECTION.)
16	PCM (Z6, ZY, ZJ) (See PCM INSPECTION [ZJ, ZY, Z6].)
17	PCM (LF, L3, L3 Turbo) (See PCM INSPECTION [LF, L3].) (See PCM INSPECTION [L3 Turbo].)
18	PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.) (See PASSENGER JUNCTION BOX (PJB) INSPECTION.)
19	Water heater unit (MZR-CD (RF Turbo)) (See WATER HEATER UNIT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See WATER HEATER SYSTEM CONFIGURATION [MZR-CD (RF Turbo)].) (See WATER HEATER SYSTEM INITIAL SETTING [MZR-CD (RF Turbo)].)
