HVAC CONTROL SYSTEM LOCATION INDEX[MANUAL AIR CONDITIONER]

id0740a2803600

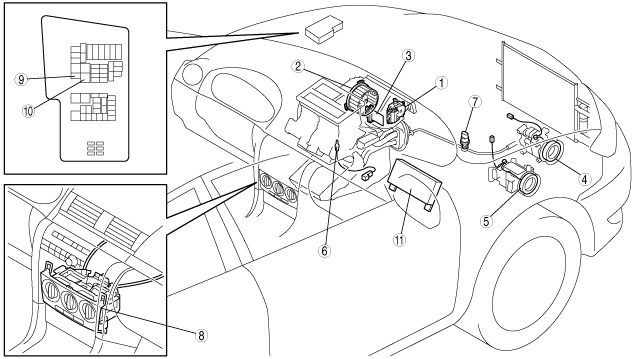

L.H.D.

am3zzw00000801

R.H.D.

am3zzw00000802

1	Air intake actuator (European (L.H.D. U.K.) specs.) (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Blower motor (See BLOWER MOTOR REMOVAL.) (See BLOWER MOTOR INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
3	Resistor (See RESISTOR REMOVAL/INSTALLATION.) (See RESISTOR INSPECTION.)
4	Magnetic clutch (Z6, ZJ, ZY) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].) (See MAGNETIC CLUTCH ADJUSTMENT.) (See MAGNETIC CLUTCH INSPECTION[ZJ, ZY, Z6].)
5	Magnetic clutch (LF, L3, L3 Turbo) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[LF, L3].) (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[L3 Turbo].) (See MAGNETIC CLUTCH ADJUSTMENT.) (See MAGNETIC CLUTCH INSPECTION[LF, L3].) (See MAGNETIC CLUTCH INSPECTION[L3 Turbo].)
6	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
7	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SWITCH INSPECTION.)
8	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSTALLATION[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION[MANUAL AIR CONDITIONER].)
9	A/C relay (See RELAY INSPECTION.)
10	Blower relay (See RELAY INSPECTION.)
11	PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.) (See PASSENGER JUNCTION BOX (PJB) INSPECTION.)
