HVAC CONTROL SYSTEM[MANUAL AIR CONDITIONER (MZ-CD 1.6 (Y6))]

id0740b5806700

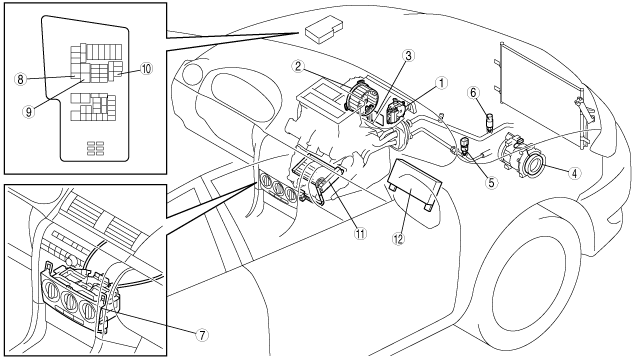

L.H.D.

am3zzw00000826

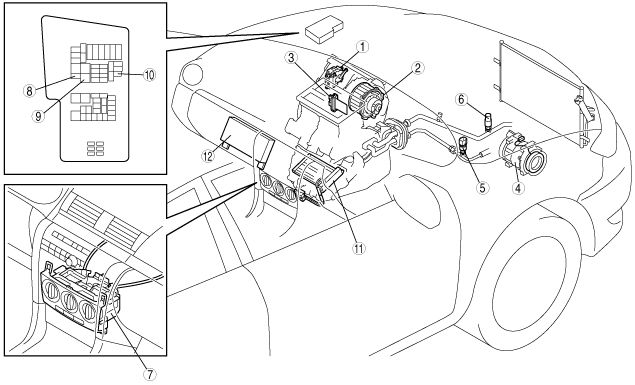

R.H.D.

am3zzw00000827

1	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
2	Blower motor (See BLOWER MOTOR REMOVAL.) (See BLOWER MOTOR INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
3	Resistor (See RESISTOR REMOVAL/INSTALLATION.) (See RESISTOR INSPECTION.)
4	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[MZ-CD 1.6 (Y6)].) (See MAGNETIC CLUTCH ADJUSTMENT[MZ-CD 1.6 (Y6)].) (See MAGNETIC CLUTCH INSPECTION[MZ-CD 1.6 (Y6)].)
5	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See REFRIGERANT PRESSURE SWITCH INSPECTION[MZ-CD 1.6 (Y6)].)
6	A/C compressor cycling switch (See A/C COMPRESSOR CYCLING SWITCH REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See A/C COMPRESSOR CYCLING SWITCH INSPECTION[MZ-CD 1.6 (Y6)].)
7	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSTALLATION[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION[MANUAL AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
8	A/C relay (See RELAY INSPECTION.)
9	Blower relay (See RELAY INSPECTION.)
10	PTC heater relay (See RELAY INSPECTION.)
11	PTC heater (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION[MZ-CD 1.6 (Y6)].)
12	PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.) (See PASSENGER JUNCTION BOX (PJB) INSPECTION.)
