INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

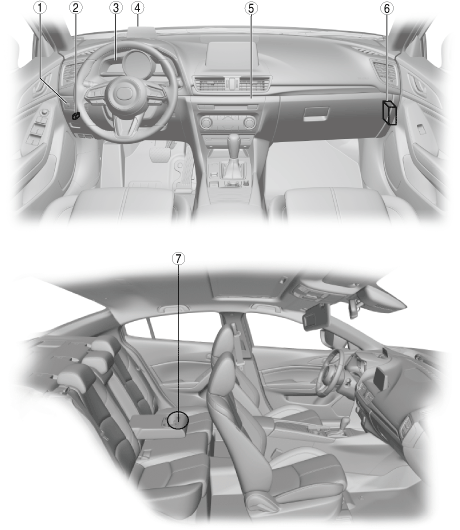

Interior

am3zzw00018381

1	Parking sensor switch (with parking sensor system) (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR SWITCH INSPECTION.)
2	Front parking sensor buzzer (with parking sensor system) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See FRONT PARKING SENSOR BUZZER INSPECTION.)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER OPERATION RECORD.)
4	Active driving display (with center display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
5	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
6	Parking assist unit (with parking sensor system) (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT INSPECTION.) (See PARKING SENSOR SYSTEM OPERATION SWITCHING PROCEDURE.) (See BEEP SOUND ADJUSTMENT.)
7	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)

Exterior

am3zzw00018382

1	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
2	Front ultrasonic sensor short-cord (with parking sensor system, with front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
3	Front ultrasonic sensor (with parking sensor system, with front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
4	Rear parking sensor buzzer (with parking sensor system, with front ultrasonic sensor) (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See REAR PARKING SENSOR BUZZER INSPECTION.)
5	Rear ultrasonic sensor short-cord (with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
6	Rear ultrasonic sensor (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

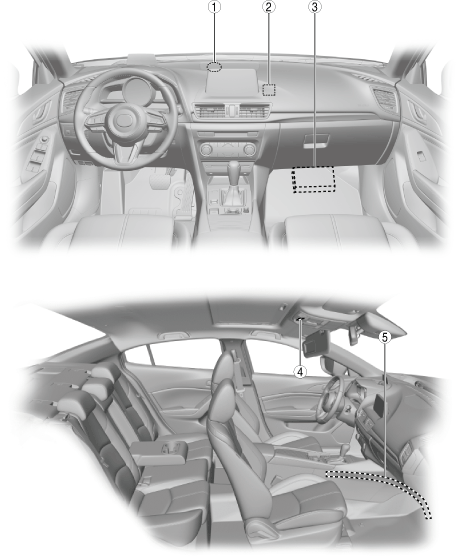

With Mazda ERA-GLONASS

am3zzw00020419

1	Mazda ERA-GLONASS speaker (See MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SPEAKER INSPECTION.)
2	TEL antenna (See TEL ANTENNA REMOVAL/INSTALLATION.)
3	Mazda ERA-GLONASS control module (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS CONTROL MODULE INSPECTION.) (See MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS CONTROL MODULE CONFIGURATION.) (See MAZDA ERA-GLONASS CONTROL MODULE FINALIZATION PROCEDURE.) (See MAZDA ERA-GLONASS OPERATION RECORD.)
4	Mazda ERA-GLONASS switch (See MAZDA ERA-GLONASS SWITCH REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS SWITCH INSPECTION.)
5	Mazda ERA-GLONASS control module short-cord (See MAZDA ERA-GLONASS CONTROL MODULE SHORT-CORD REMOVAL/INSTALLATION.) (See MAZDA ERA-GLONASS CONTROL MODULE SHORT-CORD INSPECTION.)
