CONDENSER REMOVAL/INSTALLATION

id071100801200

Except MZ-CD 1.6

1. Remove the battery cover and battery duct. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

4. Remove the aerodynamic under cover No.1. (See AERODYNAMIC UNDER COVER NO.1 REMOVAL/INSTALLATION.)

5. Discharge the refrigerant. (See REFRIGERANT CHARGING.)

6. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.5, MZR 1.6].) (See ENGINE COOLANT REPLACEMENT [MZR 2.0, MZR 2.5].) (See ENGINE COOLANT REPLACEMENT [MZR 2.0 DISI i-stop].) (See ENGINE COOLANT REPLACEMENT [MZR 2.3 DISI Turbo].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0].) (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)

7. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

8. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

9. Disconnect the radiator hose from the radiator.

10. Remove the cooling fan component. (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2].)

11. Remove the radiator. (See RADIATOR REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See RADIATOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See RADIATOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See RADIATOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See RADIATOR REMOVAL/INSTALLATION [MZR-CD 2.2].)

12. Disconnect the cooler hose (HI) and cooler pipe. Do not allow remaining compressor oil in the refrigerant line to spill. (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

Caution

• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

13. Remove the condenser, being careful not to allow remaining compressor oil in the condenser to spill. (See Condenser Installation Note.)

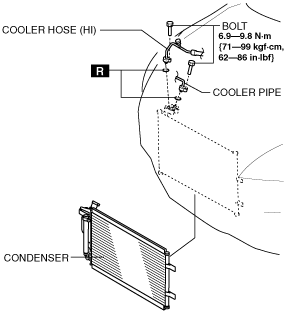

am3zzw00006788

Caution

14. Install in the reverse order of removal.

15. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.5, MZR 1.6].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 2.0, MZR 2.5].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 2.0 DISI i-stop].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 2.3 DISI Turbo].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR-CD 2.2].)

16. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

MZ-CD 1.6

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

3. Remove the aerodynamic under cover No.1. (See AERODYNAMIC UNDER COVER NO.1 REMOVAL/INSTALLATION.)

4. Discharge the refrigerant. (See REFRIGERANT CHARGING.)

5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6].)

6. Remove the fresh air duct (No.1, No.2), air cleaner and air hose component, charge air cooler hose (inlet and outlet), and charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)

7. Remove the cooling fan component. (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZ-CD 1.6].)

8. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

9. Remove the radiator. (See RADIATOR REMOVAL/INSTALLATION [MZ-CD 1.6].)

10. Disconnect the cooler hose (HI) and cooler pipe. Do not allow remaining compressor oil in the refrigerant line to spill. (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

Caution

11. Remove the condenser, being careful not to allow remaining compressor oil in the condenser to spill. (See Condenser Installation Note.)

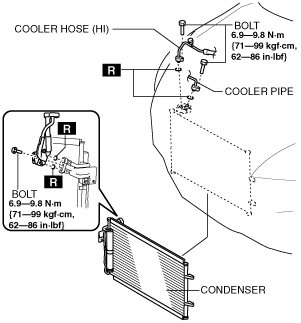

am3zzw00006789

Caution

12. Install in the reverse order of removal.

13. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZ-CD 1.6].)

14. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Condenser Installation Note

1. After replacing the condenser, add compressor oil to the refrigeration cycle.

Supplemental oil amount (approx. quantity)

20 ml {20 cc, 0.68 fl oz}
