CONTROL SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]

id0140z7804100

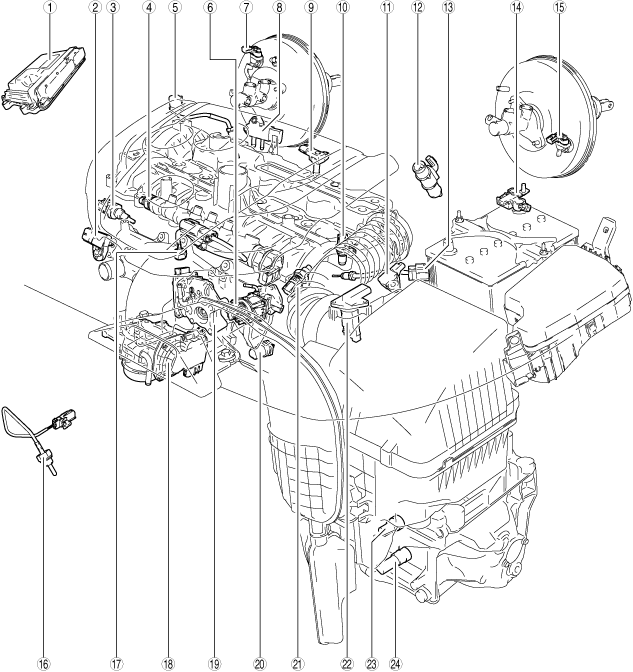

Engine Compartment (Fuel injector (2pin type))

ac5wzw00005485

1	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See PCM INSPECTION [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-D 2.2].)
2	MAP sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
3	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
4	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
5	Exhaust gas temperature sensor No.2 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
6	EGR cooler bypass valve position sensor (See EGR COOLER BYPASS VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR COOLER BYPASS VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
7	Power brake unit vacuum sensor (R.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-D 2.2].)
8	Exhaust gas pressure sensor No.2 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
9	Exhaust gas pressure sensor No.1 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
10	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
11	MAP sensor No.1 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
12	Blow-by heater (See BLOW-BY HEATER INSPECTION [SKYACTIV-D 2.2].)
13	Exhaust gas temperature sensor No.1 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
14	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CURRENT SENSOR INSPECTION [SKYACTIV-D 2.2].)
15	Power brake unit vacuum sensor (L.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-D 2.2].)
16	Boost air temperature sensor (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
17	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
18	Intake shutter valve position sensor (See INTAKE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
19	EGR valve position sensor (See EGR VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
20	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
21	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
22	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-D 2.2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
23	Neutral switch No.1 (MTX) (See NEUTRAL SWITCH INSPECTION [SKYACTIV-D 2.2].)
24	Neutral switch No.2 (MTX) (See NEUTRAL SWITCH INSPECTION [SKYACTIV-D 2.2].)

Engine Compartment (Fuel injector (6pin type))

ac5wzw00012100

1	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See PCM INSPECTION [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-D 2.2].)
2	MAP sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
3	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
4	IAT sensor No.2 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
5	Power brake unit vacuum sensor (R.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-D 2.2].)
6	Exhaust gas pressure sensor No.2 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
7	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
8	Exhaust gas pressure sensor No.1 (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
9	Exhaust gas temperature sensor No.1 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
10	Blow-by heater (See BLOW-BY HEATER INSPECTION [SKYACTIV-D 2.2].)
11	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CURRENT SENSOR INSPECTION [SKYACTIV-D 2.2].)
12	MAP sensor No.1 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
13	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-D 2.2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-D 2.2].)
14	EGR cooler bypass valve position sensor (See EGR COOLER BYPASS VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR COOLER BYPASS VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
15	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
16	EGR valve position sensor (See EGR VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
17	Intake shutter valve position sensor (See INTAKE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
18	Boost air temperature sensor (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)

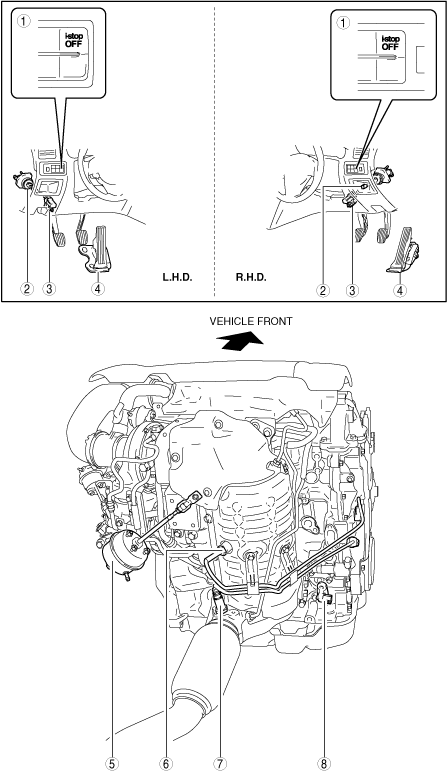

Except Engine Compartment (Fuel injector (2pin type))

ac5wzw00008688

1	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-D 2.2].)
2	Clutch stroke sensor (MTX) (See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-D 2.2].)
3	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [SKYACTIV-D 2.2].)
4	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
5	Regulating valve position sensor (See REGULATING VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See REGULATING VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
6	Exhaust gas temperature sensor No.3 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
7	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2].)
8	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-D 2.2].)

Except Engine Compartment (Fuel injector (6pin type))

ac5wzw00012101

1	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-D 2.2].)
2	Clutch stroke sensor (MTX) (See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-D 2.2].)
3	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [SKYACTIV-D 2.2].)
4	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
5	Regulating valve position sensor (See REGULATING VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See REGULATING VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
6	Exhaust gas temperature sensor No.2 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
7	Exhaust gas temperature sensor No.3 (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
8	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-D 2.2].)
9	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-D 2.2].)
10	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2].)
11	Variable turbine geometry turbocharger actuator position sensor (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)
12	Urea quality sensor (See UREA QUALITY SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See UREA QUALITY SENSOR INSPECTION [SKYACTIV-D 2.2].)
13	Urea level sensor / Urea temp sensor (See UREA LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See UREA LEVEL SENSOR INSPECTION [SKYACTIV-D 2.2].) (See UREA TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See UREA TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2].)
