SUNROOF UNIT REMOVAL/INSTALLATION


id091500800700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glass panel (See GLASS PANEL REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(8)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(9)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(11)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(12)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(16)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(17)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(18)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(19)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(20)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(21)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(22)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(23)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(24)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(25)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(26)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(27)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

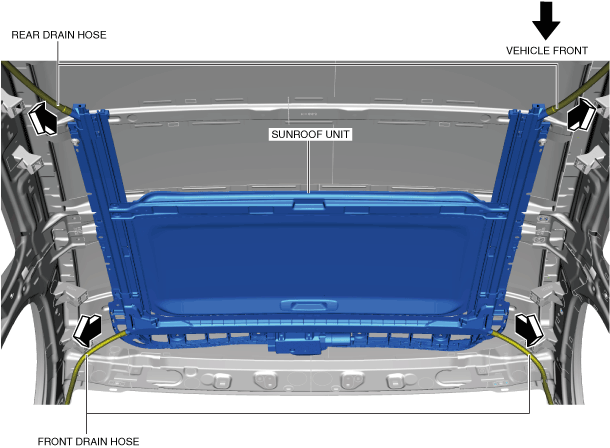

3.  Disconnect the front drain hoses and the rear drain hoses in the directions of the arrows shown in the figure.

ac8ccw00000502

4.  Remove nuts (1).

ac8wzw00004049

5.  Remove the bolts.

6.  Remove nuts (2).

Warning
•  Support the sunroof unit before removing the bolts and nuts and always perform the procedure with at least one other person to prevent the sunroof unit from falling. Otherwise, it may fall and cause injury.

7.  Remove the sunroof unit from the driver-side or passenger-side front door.

8.  Install in the reverse order of removal.
