ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

id092000812200


Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(7)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(11)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(14)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(16)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(17)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(18)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(19)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(20)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(21)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(22)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(24)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(25)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(26)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Peel off the tape and remove antenna feeder No.1.

Vehicles without sunroof

ac8wzw00001866

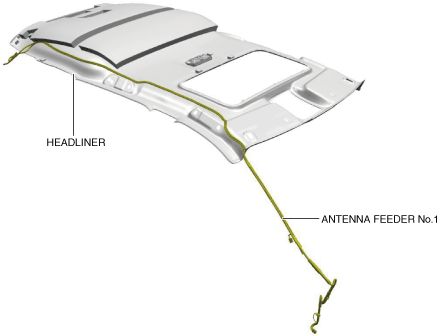

Vehicles with sunroof

ac8wzw00004124


Installation

1.  Align antenna feeder No.1 with the dimension shown in the figure, apply tape to the tape application position of the headliner, and then install antenna feeder No.1.

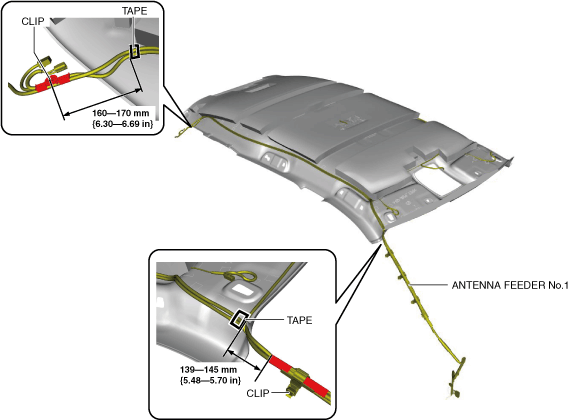

Vehicles without sunroof

ac8wzw00002273

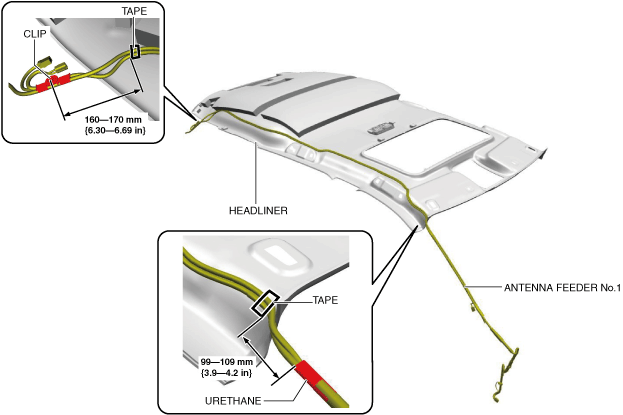

Vehicles with sunroof

ac8wzw00004125

2.  Install the following parts:

(1)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)
(2)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(5)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(8)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(9)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(10)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(11)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(12)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(13)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(16)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(17)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(18)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(19)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(20)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(21)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(22)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(23)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(24)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(25)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(26)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
