DASHBOARD INSTALLATION [(E)]

id0917000473x2

Replacement parts

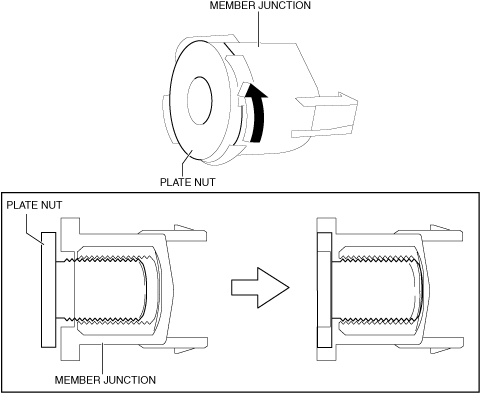

1.  Rotate the plate nut by hand in the direction of the arrow shown in the figure until it is seated.

Caution

•  After removing the dashboard, the plate nuts of the member junctions will have loosened. If the dashboard is installed with the plate nuts loosened, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, seat the plate nuts of the member junctions.

•  If the plate nuts are tightened excessively, the plate nuts may not move when installing the bolts, resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.

Note

•  If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

a30zzw00000197

2.  Verify that the member junction tabs are engaged to the dashboard.

Caution

•  If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

a30zzw00000198

3.  Insert the dashboard from either the driver-side or passenger-side front door opening.

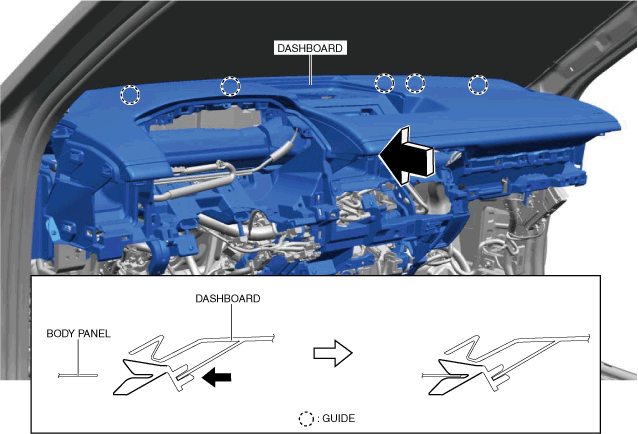

4.  Move the dashboard in the direction of the arrow shown in the figure and attach the guides to the body panel.

a30zzw00000199

5.  Seat bolts (1).

a30zzw00006021

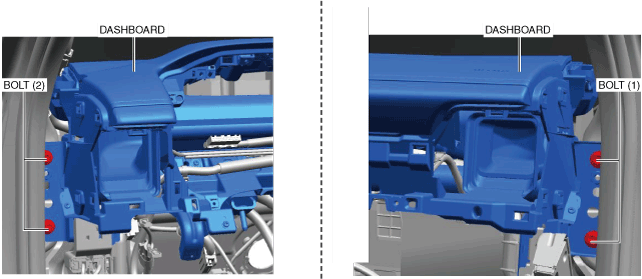

6.  Seat bolts (2).

7.  Tighten the new bolts temporarily.

Caution

•  If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.

am30jw00003005

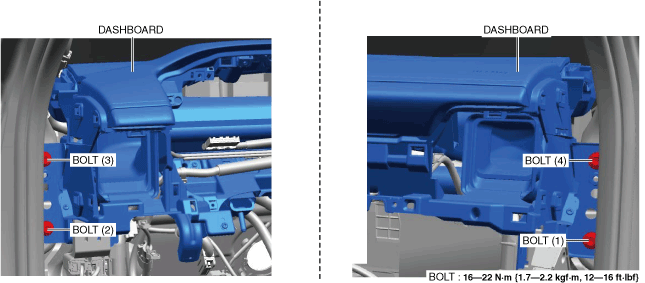

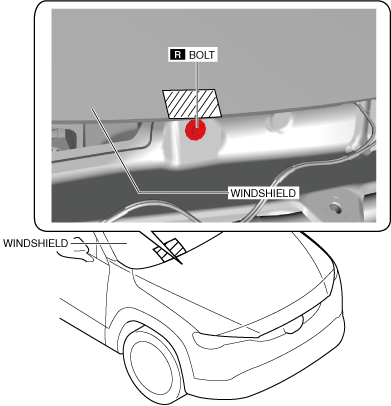

8.  Install the bolts in the order of (1), (2), (3), then (4).

a30zzw00006022

9.  Install the bolt.

am30jw00003007

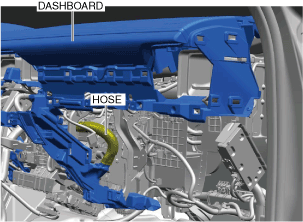

10.  Install the hose.

am30jw00003008

11.  Install the dashboard bracket.

am30jw00003009

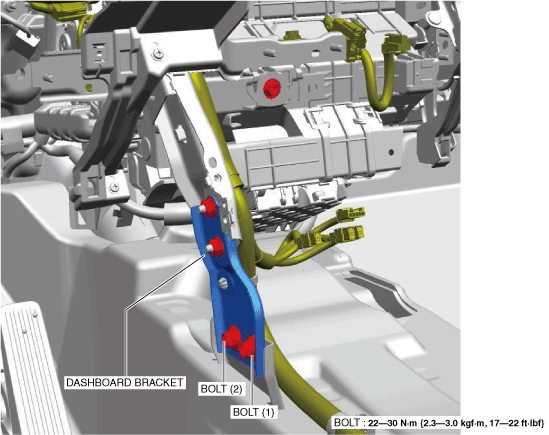

12.  Install the bolts in the order of (1) then (2).

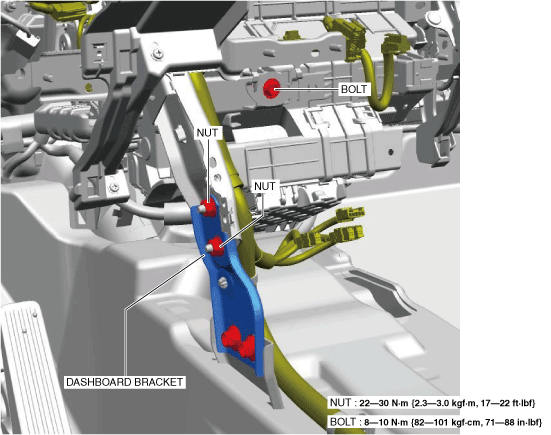

13.  Install the nuts.

am30jw00003010

14.  Install the bolt.

15.  Install the bolts.

a30zzw00000400

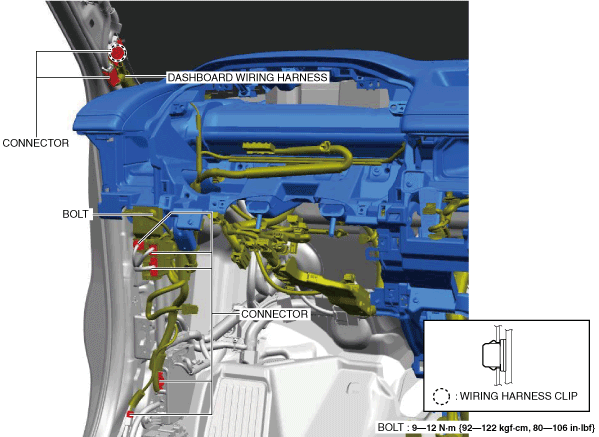

16.  Connect the connectors and attach the wiring harness clip.

17.  Connect the connectors.

a30zzw00006023

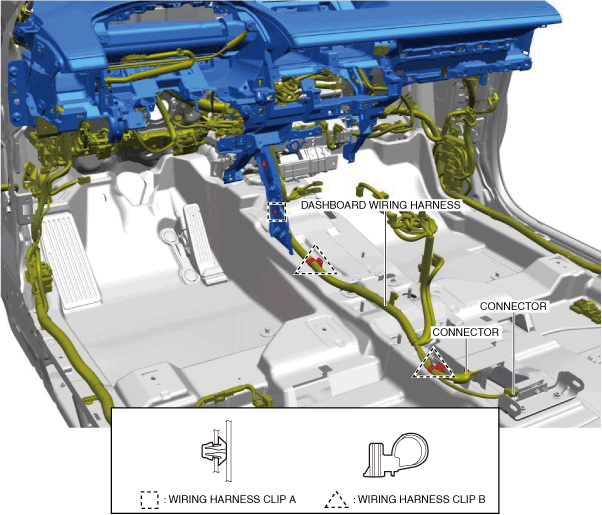

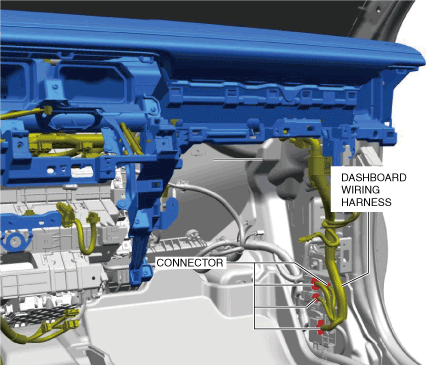

18.  Connect the connectors and attach the wiring harness clips A and B.

a30zzw00000401

19.  Install the following parts:

(1)  Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION [(E)].)

(2)  Driver monitoring camera unit (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)

(3)  Inverter (With AC power outlet) (See INVERTER REMOVAL/INSTALLATION.)

(4)  Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION [(E)].)

(5)  Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(6)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(7)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].)

(8)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(9)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(10)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(11)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(12)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(13)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(14)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(15)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(16)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(17)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(18)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(19)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(20)  Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(21)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(22)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL INSTALLATION [(E)].)

(23)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(24)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)

(25)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(26)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(27)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(28)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(29)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(30)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(31)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(32)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(33)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(34)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(35)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(36)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(37)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(38)  Select lever knob (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

(39)  Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(40)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(41)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

20.  Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
