INTERIOR TRIM LOCATION INDEX

id091700047100

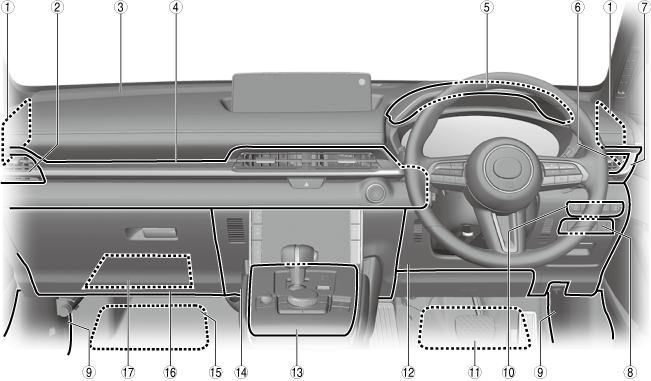

a30jjw00000653

1	Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION.)
2	Passenger-side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
3	Dashboard (See DASHBOARD REMOVAL.) (See DASHBOARD INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
4	Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
5	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
6	Driver-side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
7	Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
8	Cluster switch No.2 (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
9	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
10	Cluster switch No.1 (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
11	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION.)
12	Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.) (See DRIVER-SIDE LOWER PANEL DISASSEMBLY/ASSEMBLY.)
13	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
14	Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
15	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)
16	Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL.) (See PASSENGER-SIDE LOWER PANEL INSTALLATION.)
17	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

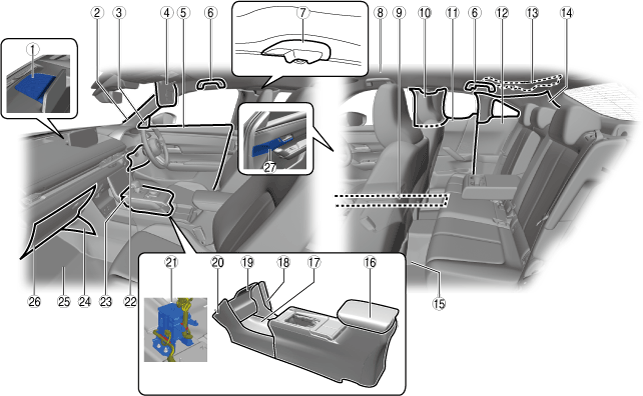

a30jjw00000654

1	Center speaker grille (With Bose®) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
2	Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)
3	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
4	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
5	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
6	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
7	Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
8	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
9	Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
10	Rear door upper trim (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION.)
11	Rear door lower trim (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)
12	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
13	Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION.)
14	Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)
15	Rear floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
16	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
17	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
18	Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
19	Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)
20	Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
21	Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)
22	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
23	Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
24	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
25	Front floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
26	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
27	Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

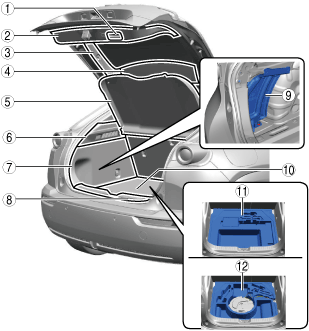

a30jjw00000655

1	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
4	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
5	Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
6	Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
7	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
8	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
9	Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)
10	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
11	Trunk board (Without Bose®) (See TRUNK BOARD REMOVAL/INSTALLATION.)
12	Trunk board (With Bose®) (See TRUNK BOARD REMOVAL/INSTALLATION.)
