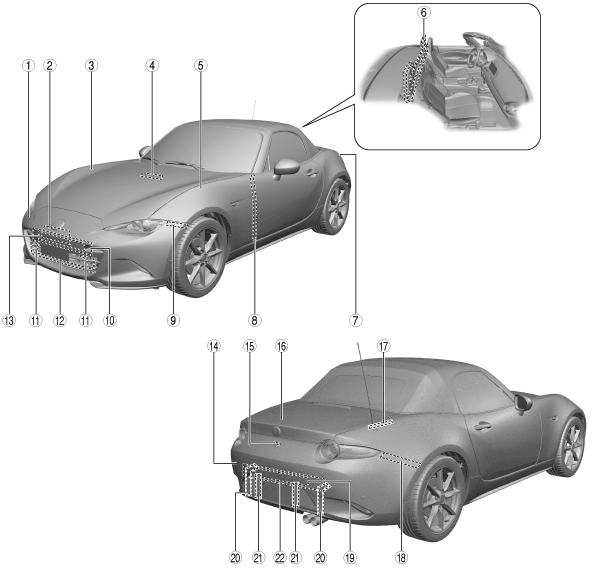

BODY PANELS LOCATION INDEX
id091000802600
amxzzw00002930
|
|
1
|
Front bumper
(See FRONT BUMPER REMOVAL.)
(See FRONT BUMPER INSTALLATION.)
|
|
2
|
Air seal cowl up
|
|
3
|
Bonnet
(See BONNET REMOVAL/INSTALLATION.)
(See BONNET DISASSEMBLY/ASSEMBLY.)
(See BONNET ADJUSTMENT.)
|
|
4
|
Air box complete
|
|
5
|
Front fender panel
|
|
6
|
Seat back crossmember assembly
|
|
7
|
Fuel-filler lid
(See FUEL-FILLER LID ADJUSTMENT.)
|
|
8
|
Front fender insulator
|
|
9
|
Front bumper slider
|
|
10
|
Front bumper reinforcement
|
|
11
|
Seal plate
|
|
12
|
Bumper stiffener lower (with bumper stiffener lower)
|
|
13
|
Energy-absorbing form (front side) (with energy-absorbing form)
|
|
14
|
Rear bumper
(See REAR BUMPER REMOVAL.)
(See REAR BUMPER INSTALLATION.)
|
|
15
|
Rear bumper bracket
|
|
16
|
Trunk lid
(See TRUNK LID ADJUSTMENT.)
|
|
17
|
Stay damper
(See STAY DAMPER DISPOSAL.)
|
|
18
|
Rear bumper slider
|
|
19
|
Energy-absorbing form (rear side) (with energy-absorbing form)
|
|
20
|
Rear bumper stay
|
|
21
|
Rear bumper retainer No.1
|
|
22
|
Rear bumper reinforcement
|
