ENTERTAINMENT LOCATION INDEX

id092000800100

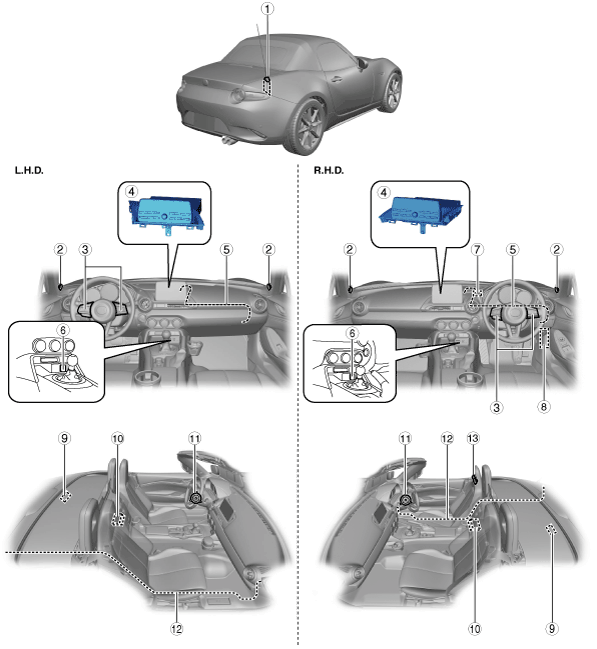

Without Center Display

amxzzw00003660

1	Rod antenna (See ROD ANTENNA REMOVAL/INSTALLATION.) (See ROD ANTENNA INSPECTION.)
2	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
3	Steering switch (with steering switch) (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
4	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.) (See AUDIO UNIT DISASSEMBLY/ASSEMBLY.)
5	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
6	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
7	Microphone (with Bluetooth® unit) (See MICROPHONE REMOVAL/INSTALLATION.)
8	Bluetooth® unit (with Bluetooth® unit) (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
9	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
10	CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.) (See CD PLAYER DISASSEMBLY/ASSEMBLY.)
11	Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.) (See DOOR SPEAKER INSPECTION.)
12	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
13	Headrest speaker (with Bluetooth® unit) (See HEADREST SPEAKER REMOVAL/INSTALLATION.) (See HEADREST SPEAKER INSPECTION.)

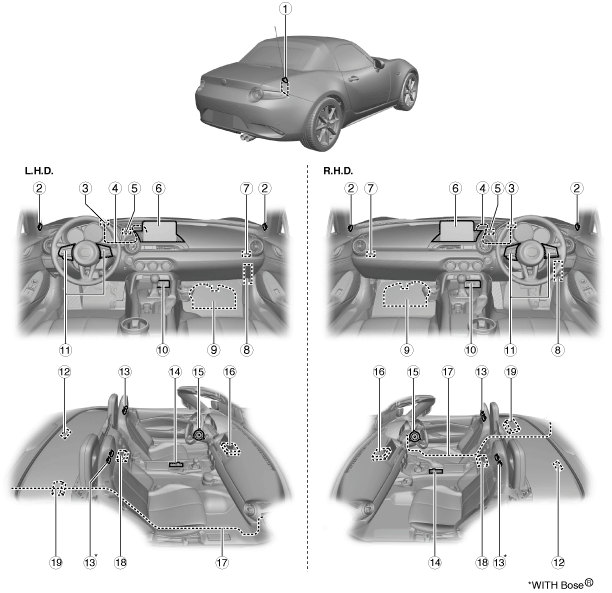

With Center Display

amxzzw00003661

1	Rod antenna (See ROD ANTENNA REMOVAL/INSTALLATION.) (See ROD ANTENNA INSPECTION.)
2	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
3	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
4	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
5	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
6	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY DISASSEMBLY/ASSEMBLY.)
7	AudioPilot® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION.)
8	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.) (See TUNER AND AMP UNIT (TAU) DISASSEMBLY/ASSEMBLY.)
9	Woofer (with Bose®) (See WOOFER REMOVAL/INSTALLATION.) (See WOOFER INSPECTION.)
10	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
11	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
12	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
13	Headrest speaker (See HEADREST SPEAKER REMOVAL/INSTALLATION.) (See HEADREST SPEAKER INSPECTION.)
14	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
15	Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.) (See DOOR SPEAKER INSPECTION.)
16	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)
17	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
18	CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.) (See CD PLAYER DISASSEMBLY/ASSEMBLY.)
	DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION.) (See DVD/CD PLAYER DISASSEMBLY/ASSEMBLY.)
19	Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
