HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

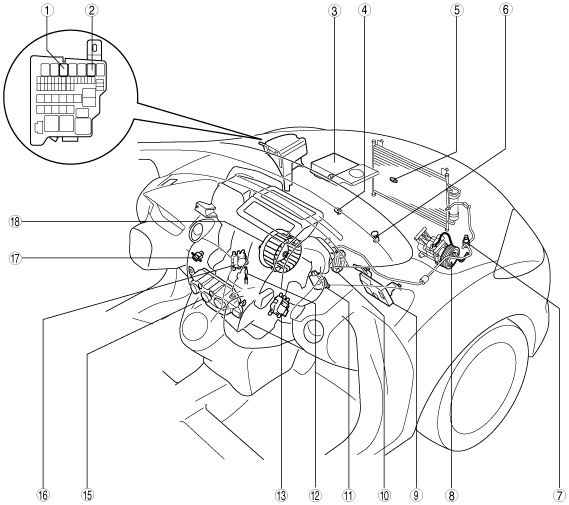

L.H.D. (ZJ, ZY)

am2zzw00002978

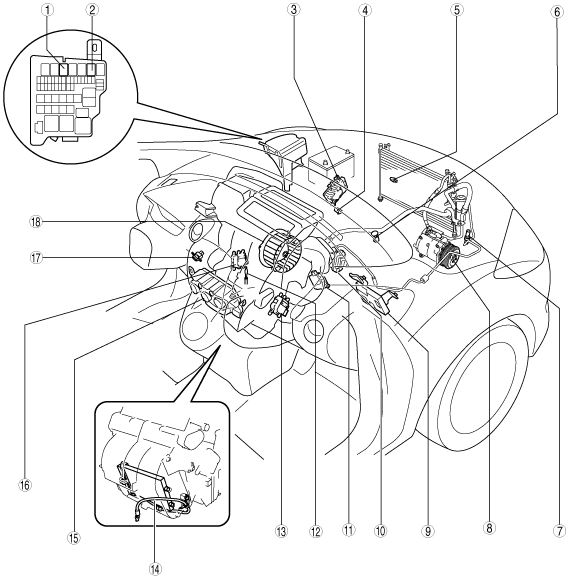

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzw00002979

1
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
PCM
(See PCM REMOVAL/INSTALLATION [ZJ, ZY].)
(See PCM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
(See PCM INSPECTION [ZJ, ZY].)
(See PCM INSPECTION [MZ-CD 1.4 DI Turbo].)
(See PCM CONFIGURATION [ZJ, ZY].)
(See PCM CONFIGURATION [MZ-CD 1.4 DI Turbo].)
4
Engine coolant temperature sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [ZJ, ZY].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.4 DI Turbo].)
5
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Refrigerant pressure switch (ZJ, ZY)
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
Refrigerant pressure sensor (MZ-CD 1.4 DI Turbo)
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
BCM
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
(See BODY CONTROL MODULE (BCM) INSPECTION.)
(See BODY CONTROL MODULE (BCM) CONFIGURATION.)
(See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
10
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
PTC heater (MZ-CD 1.4 DI Turbo)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
18
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

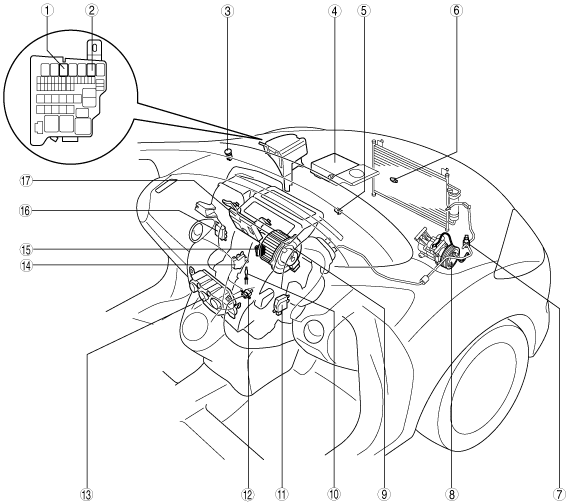

R.H.D. (ZJ, ZY)

adejjw00001962

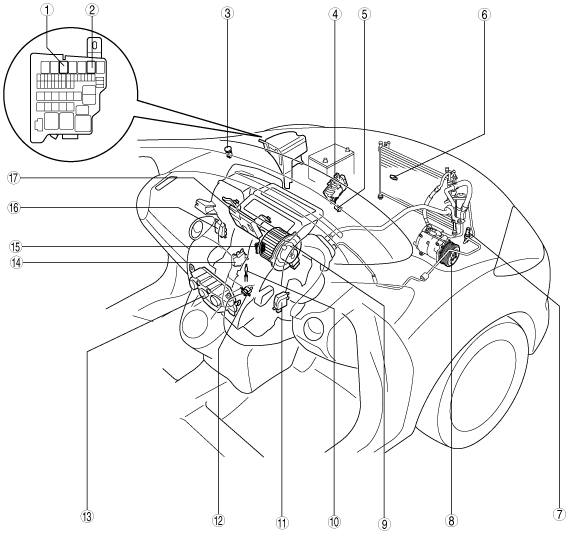

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzw00002980

1
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4
PCM
(See PCM REMOVAL/INSTALLATION [ZJ, ZY].)
(See PCM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
(See PCM INSPECTION [ZJ, ZY].)
(See PCM INSPECTION [MZ-CD 1.4 DI Turbo].)
(See PCM CONFIGURATION [ZJ, ZY].)
(See PCM CONFIGURATION [MZ-CD 1.4 DI Turbo].)
5
Engine coolant temperature sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [ZJ, ZY].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZ-CD 1.4 DI Turbo].)
6
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7
Refrigerant pressure switch (ZJ, ZY)
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
Refrigerant pressure sensor (MZ-CD 1.4 DI Turbo)
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
9
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11
Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
14
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)
16
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17
BCM
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
(See BODY CONTROL MODULE (BCM) INSPECTION.)
(See BODY CONTROL MODULE (BCM) CONFIGURATION.)
(See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
