DASHBOARD REMOVAL/INSTALLATION

id091700800300

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Front scuff plates (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trims (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(7)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(8)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(9)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(10)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(11)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(12)  Bonnet release lever knob (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(13)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(15)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(16)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(17)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(18)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(19)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(20)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)

(21)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(22)  Dashboard upper garnish (See DASHBOARD UPPER GARNISH REMOVAL/INSTALLATION.)

(23)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(24)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(25)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(26)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(27)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.1 clip from the A-pillar inner panel.

4.  Disconnect the washer hose (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

5.  Disconnect the dashboard wiring harness connectors.

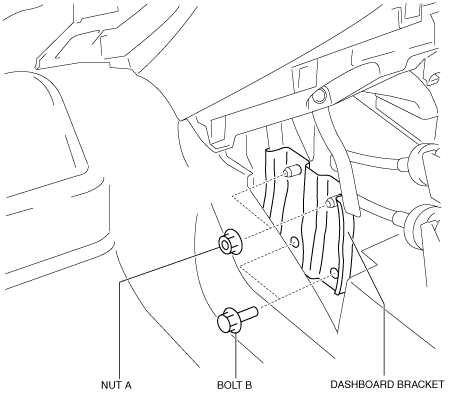

6.  Remove nuts A and bolts B then remove the dashboard bracket.

L.H.D.

am6zzw00001332

R.H.D.

am6zzw00001333

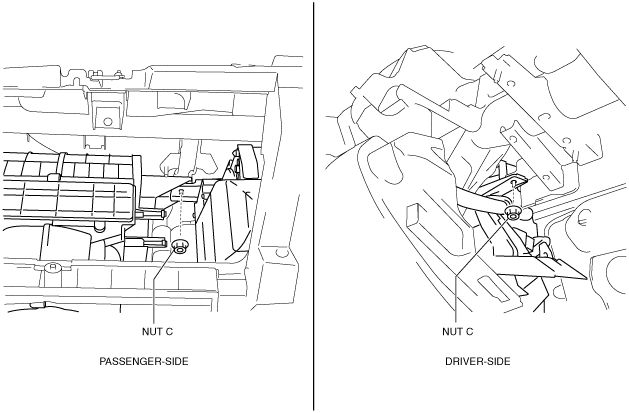

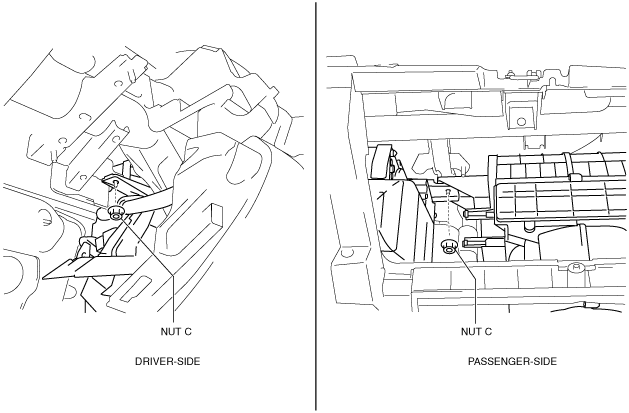

7.  Remove nuts C shown in the figure.

L.H.D.

am6zzw00001334

R.H.D.

am6zzw00001335

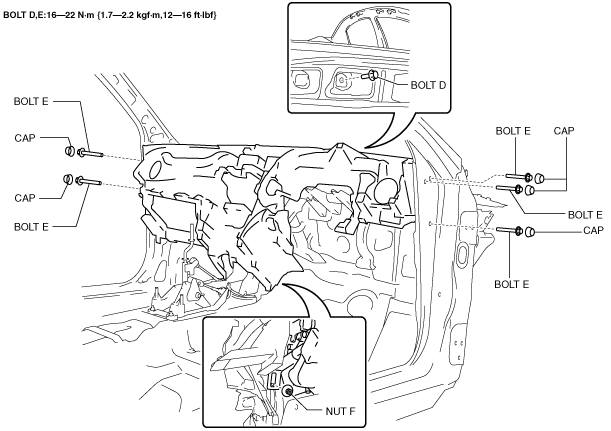

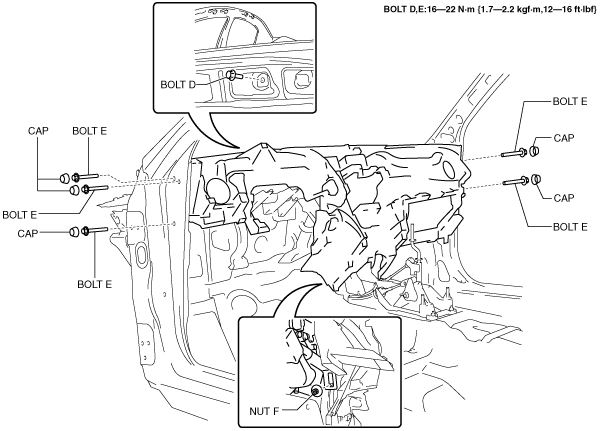

8.  Remove the caps, remove the bolt D, E and nut F.

L.H.D.

am6zzw00001336

R.H.D.

am6zzw00001337

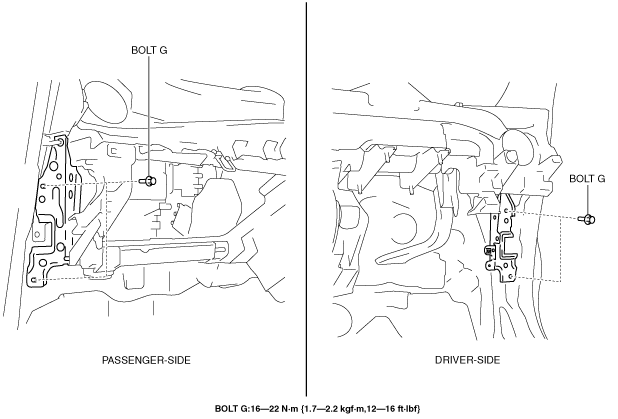

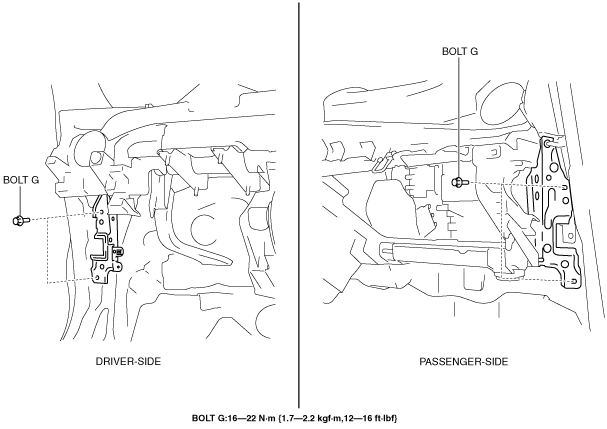

9.  Remove the bolts G.

L.H.D.

am6zzw00001338

R.H.D.

am6zzw00001339

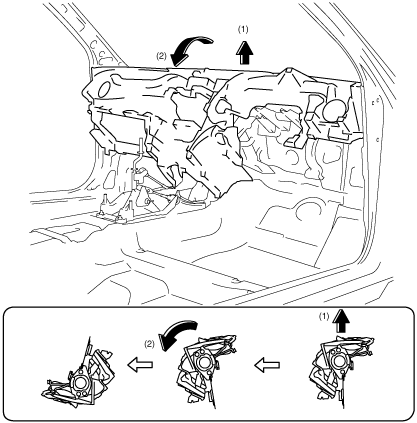

10.  Raise the back side of the dashboard in the direction of the arrow (1) shown in the figure and rotate it in the direction of the arrow (2).

L.H.D.

am6zzw00000633

R.H.D.

am6zzw00001340

11.  Take the dashboard out through the opened driver’s door.

12.  Install in the reverse order of removal.
