INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200801000

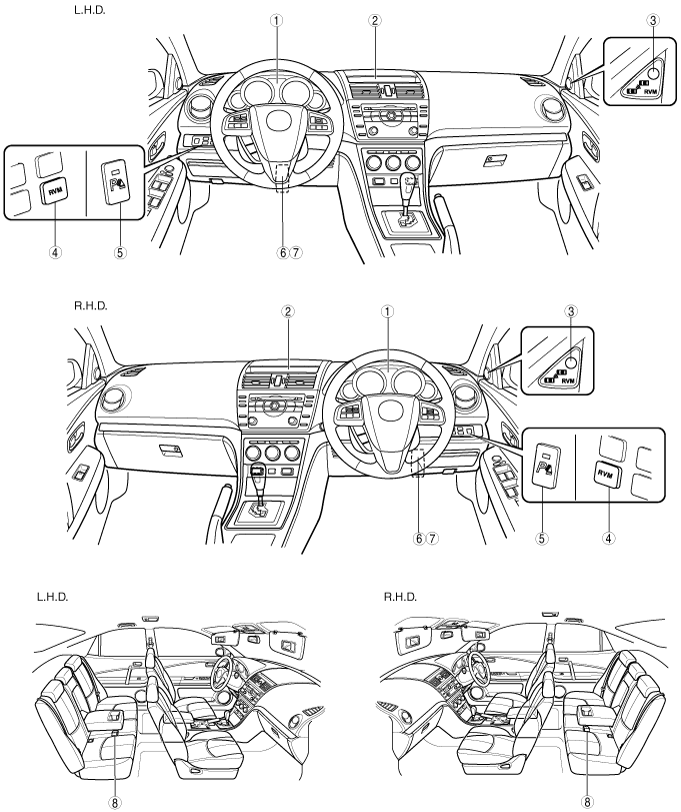

Interior

am6zzw00006251

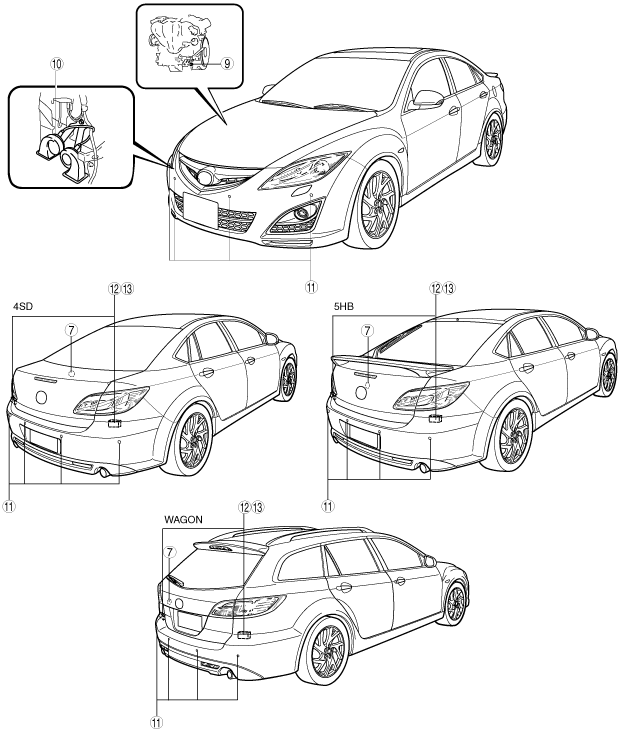

Exterior

am6zzw00006298

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.) (See INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE.)
3	RVM warning indicator light (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION.) (See RVM WARNING INDICATOR LIGHT INSPECTION.)
4	RVM switch (See RVM SWITCH REMOVAL/INSTALLATION.) (See RVM SWITCH INSPECTION.)
5	Parking sensor switch (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR SWITCH INSPECTION.)
6	Parking sensor control module (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.) (See PARKING SENSOR CONTROL MODULE INSPECTION.)
7	Parking sensor buzzer (See PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See PARKING SENSOR BUZZER INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
8	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZR-CD 2.2].) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5, MZR 2.0 DISI].) (See FUEL GAUGE SENDER UNIT INSPECTION [MZR-CD 2.2].) (See FUEL GAUGE SENDER UNIT INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5, MZR 2.0 DISI].)
9	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
10	Horn (See HORN REMOVAL/INSTALLATION.)
11	Ultrasonic sensor (See ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
12	Rear vehicle monitoring control module (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.) (See REAR VEHICLE MONITORING CONTROL MODULE INSPECTION.) (See REAR VEHICLE MONITORING CONTROL MODULE CONFIGURATION.) (See REAR VEHICLE MONITORING RADAR AIMING.) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE.)
13	Rear vehicle monitoring bracket (See REAR VEHICLE MONITORING BRACKET REMOVAL/INSTALLATION.)
