HVAC BASIC SYSTEM LOCATION INDEX

id071100801700


L.H.D.

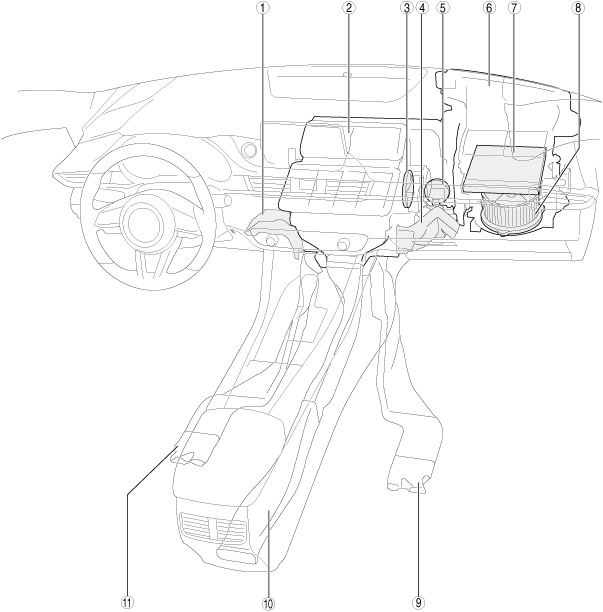

Inside cabin

am6zzw00015985

1
Driver-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
2
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
3
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL.)
(See AIRFLOW MODE MAIN LINK INSTALLATION.)
4
Passenger-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
5
Blower fan controller
(See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.)
(See BLOWER FAN CONTROLLER INSPECTION.)
6
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
7
Air filter
(See AIR FILTER REMOVAL/INSTALLATION.)
(See AIR FILTER INSPECTION.)
8
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION.)
(See BLOWER MOTOR INSPECTION.)
9
Passenger-side rear heat duct
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
10
Rear vent duct (With rear vent duct)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
11
Driver-side rear heat duct
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)

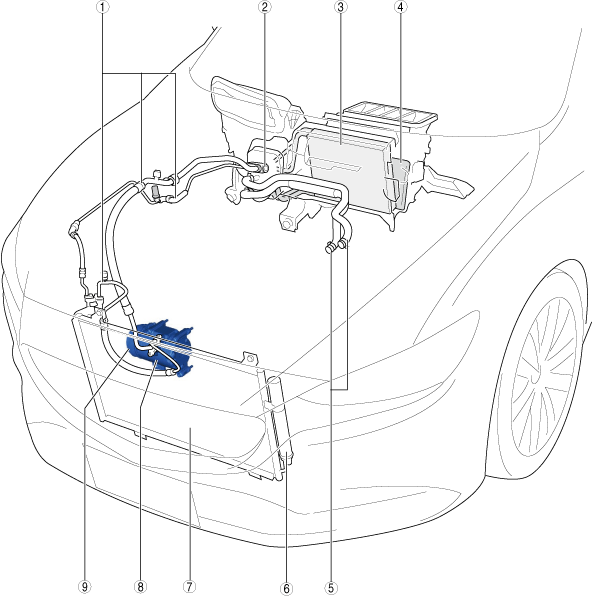

Exterior (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am6zzw00015986

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Evaporator
(See EVAPORATOR INSPECTION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

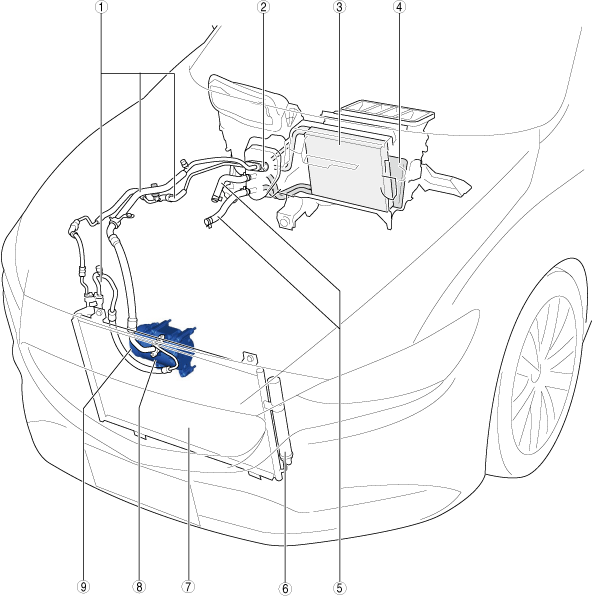

Exterior (SKYACTIV-G 2.5T)

am6zzw00015987

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Evaporator
(See EVAPORATOR INSPECTION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.5T].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.5T].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.5T].)

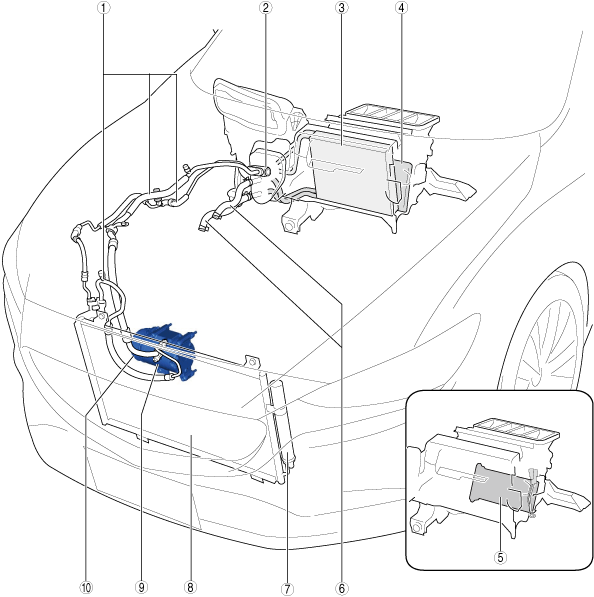

Exterior (SKYACTIV-D 2.2)

am6zzw00015988

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Evaporator
(See EVAPORATOR INSPECTION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
PTC heater
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION.)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION.)
6
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
8
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See CONDENSER INSPECTION [SKYACTIV-D 2.2].)
9
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
10
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 2.2].)


R.H.D.

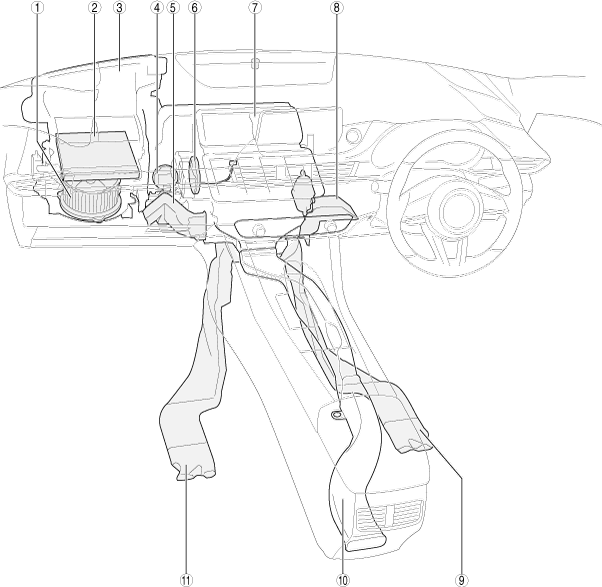

Inside cabin

am6zzw00015989

1
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION.)
(See BLOWER MOTOR INSPECTION.)
2
Air filter
(See AIR FILTER REMOVAL/INSTALLATION.)
(See AIR FILTER INSPECTION.)
3
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
4
Blower fan controller
(See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.)
(See BLOWER FAN CONTROLLER INSPECTION.)
5
Passenger-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
6
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL.)
(See AIRFLOW MODE MAIN LINK INSTALLATION.)
7
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION.)
(See A/C UNIT DISASSEMBLY/ASSEMBLY.)
8
Driver-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
9
Driver-side rear heat duct
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)
10
Rear vent duct (With rear vent duct)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
11
Passenger-side rear heat duct
(See REAR HEAT DUCT REMOVAL/INSTALLATION.)

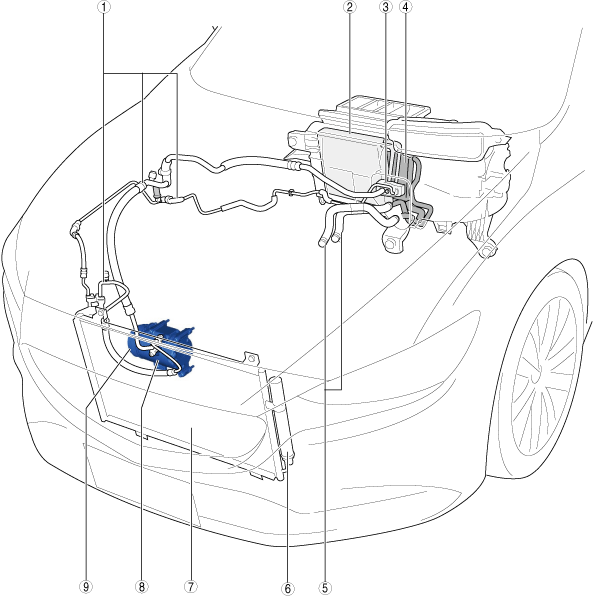

Exterior (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am6zzw00015990

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2
Evaporator
(See EVAPORATOR INSPECTION.)
3
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

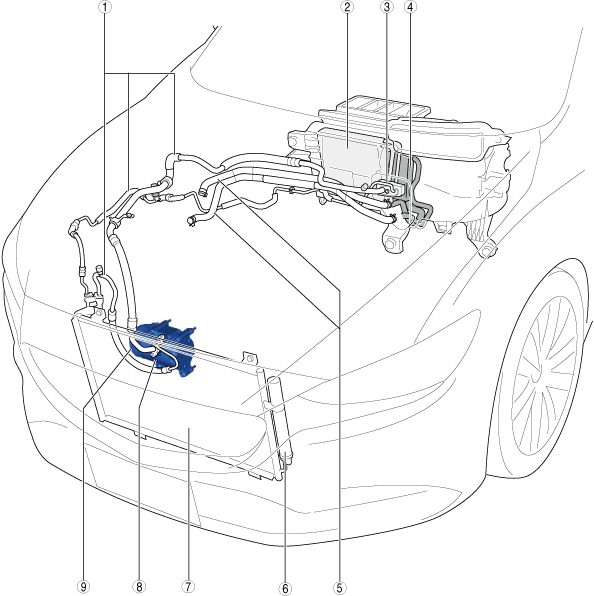

Exterior (SKYACTIV-G 2.5T)

am6zzw00015991

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2
Evaporator
(See EVAPORATOR INSPECTION.)
3
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.5T].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.5T].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.5T].)

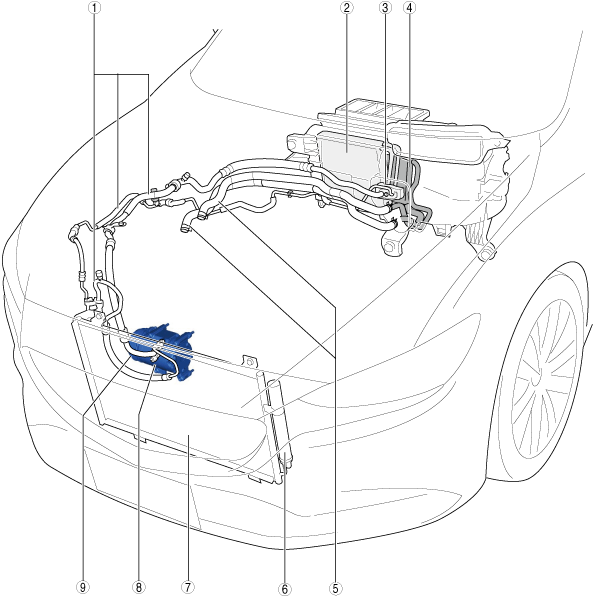

Exterior (SKYACTIV-D 2.2)

am6zzw00015992

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Evaporator
(See EVAPORATOR INSPECTION.)
3
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION.)
4
Heater core
(See HEATER CORE INSPECTION.)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See CONDENSER INSPECTION [SKYACTIV-D 2.2].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 2.2].)
