MAP LIGHT INSPECTION

id091800801300

Map Light (Bulb Type)

Front map light

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

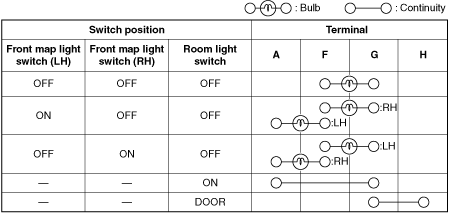

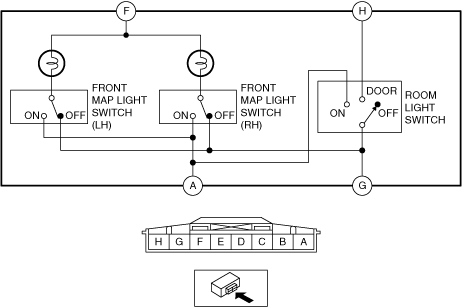

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am6zzw00017438

am6zzw00017439

•  If not as indicated in the table, replace the front map light or front map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)

Rear map light

1.  Remove the following parts:

4SD

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

22.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

23.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

24.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

25.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

26.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

WGN

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See Front map light.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

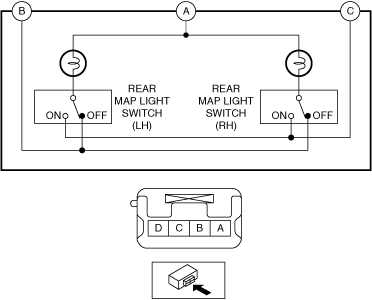

2.  Verify that the continuity between the rear map light terminals is as indicated in the table.

am6zzw00017440

am6zzw00017441

•  If not as indicated in the table, replace the rear map light or rear map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)

Map Light (LED Type)

Front map light

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

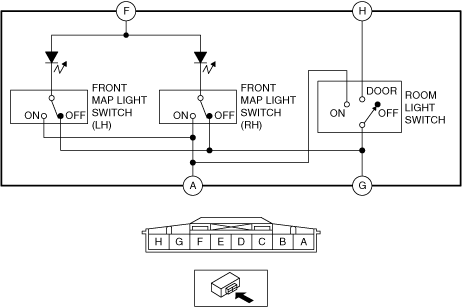

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

am6zzw00017442

am6zzw00017443

•  If not as indicated in the table, replace the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

Rear map light

1.  Remove the following parts:

4SD

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

22.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

23.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

24.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

25.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

26.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

WGN

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See Front map light.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

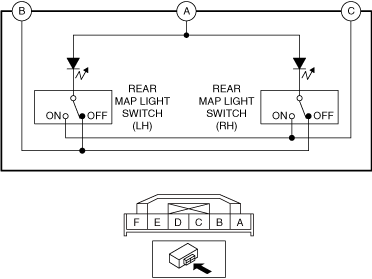

2.  Verify that the continuity between the rear map light terminals is as indicated in the table.

am6zzw00017444

am6zzw00017445

•  If not as indicated in the table, replace the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

Console Ambient Light (With Down Light)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

3.  Apply battery voltage to front map light terminal D, and connect terminal B to ground.

am6zzw00015419

4.  Verify that the LED turns on.

•  If the LED does not turn on, replace the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)
