A/C UNIT REMOVAL/INSTALLATION

id071100800200

Replacement Part

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module.

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Caution

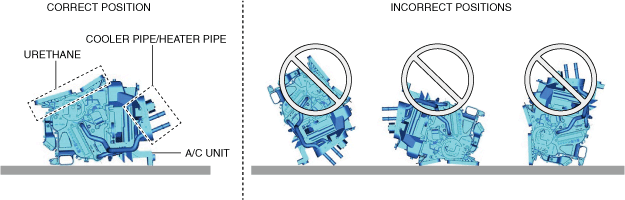

•  When leaving the A/C unit, store it in the correct position shown in the figure. If the A/C unit is left in an incorrect position, the cooler pipe, heater pipe, or urethane could be deformed or damaged.

ac5wzw00008758

Note

•  When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON (engine off or on).

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

6.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT REPLACEMENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

7.  Remove the following parts:

(1)  Plug hole plate (SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Engine cover (SKYACTIV-D 2.2) (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(3)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(4)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(9)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(10)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(12)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(14)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(15)  Center display component (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(16)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(17)  Meter hood No.2 (with Active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(18)  Active driving display (with Active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(19)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(20)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(21)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(22)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(23)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(24)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(25)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(26)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(27)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(29)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(30)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(31)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)

(32)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(33)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(34)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(35)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(36)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(37)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(38)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(39)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(40)  Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(41)  Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(42)  Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(43)  Shift lever component (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(44)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

(45)  Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

(46)  Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

(47)  Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)

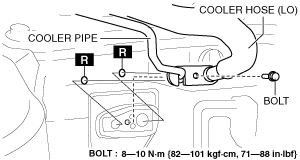

8.  Remove the bolt.

am3uuw00014195

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunctions could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

9.  Disconnect the cooler hose (LO) and cooler pipe.

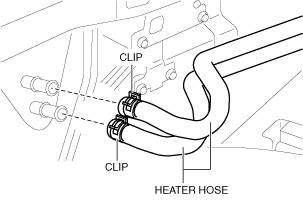

10.  Disconnect the heater hose.

ac5wzw00011345

11.  Disconnect the drain hose.

am3uuw00014194

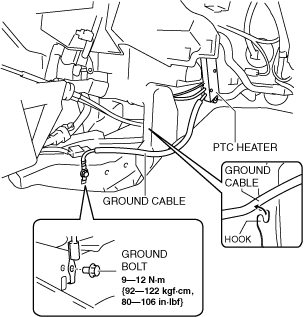

12.  Remove the ground bolt. (with PTC heater)

ac5wzw00008760

13.  Disconnect the ground cable. (with PTC heater)

14.  Remove the ground cable from the hook. (with PTC heater)

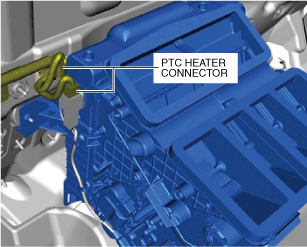

15.  Disconnect the PTC heater connectors. (with PTC heater)

ac5wzw00008761

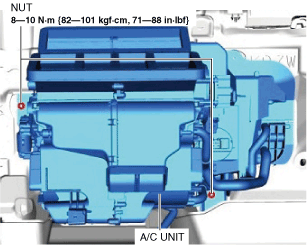

16.  Remove the nuts.

ac5wzw00008762

17.  Remove the A/C unit. Do not allow compressor oil to spill.

18.  Install in the reverse order of removal. (See A/C Unit Installation Note.) (See Drain Hose Installation Note.)

19.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT LEAKAGE INSPECTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

20.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

A/C Unit Installation Note

1.  When replacing the A/C unit or evaporator, add compressor oil to the refrigerant cycle.

Drain Hose Installation Note

1.  Install the drain hose as shown in the figure.

ac5wzw00008763
