AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1801100

Special Service Tool (SST)

49 H066 002

Deployment tool
49 B066 004

Adapter harness
49 G066 003

Adapter harness
49 L066 002

Adapter harness
—
—

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module or pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL) [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module, pre-tensioner seat belt, and the SST (Adapter harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side air bag module

Warning
•  The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.
Note
•  The SSTs, two types of adapter harnesses (for inflators No.1 and No.2) and two deployment tools are to be used to operate (deploy) the driver-side air bag module.

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Connect the SST (Adapter harness) to the driver-side air bag module.

ac8wzw00000219

3.  Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

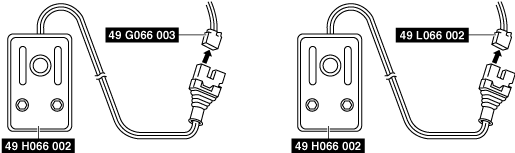

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac8wzw00000220

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the driver-side air bag module (both inflators).

ac9uuw00009115

Warning
•  Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side air bag module

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

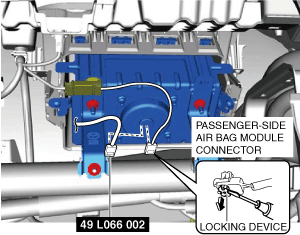

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac8wzw00000221

3.  Disconnect the passenger-side air bag module connector.

4.  Connect the SST (Adapter harness) to the passenger-side air bag module.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side air bag module

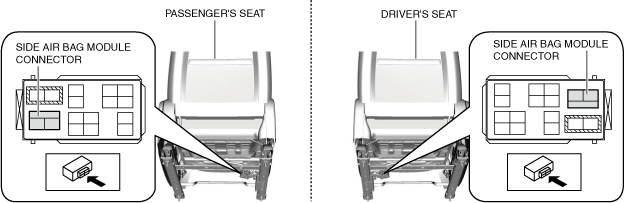

1.  Disconnect the side air bag module connector.

ac8wzw00000222

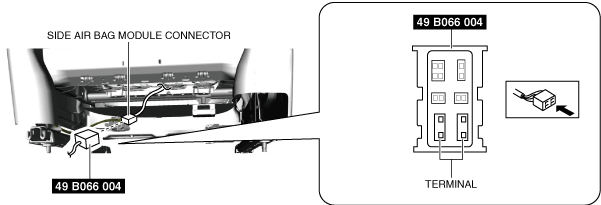

2.  Connect the SST (Adapter harness) to the side air bag module connector.

am3zzw00018422

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009121

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain air bag module

1.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(7)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(11)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(14)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(16)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(17)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(18)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(19)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(20)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(21)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(22)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(24)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(25)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Peel back the headliner.

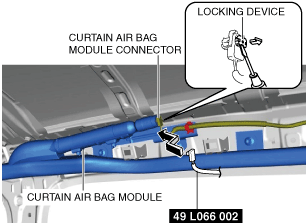

3.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac8wzw00000223

4.  Disconnect the curtain air bag module connector.

5.  Connect the SST (Adapter harness) to the curtain air bag module.

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Front pre-tensioner seat belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac9wzw00004580

3.  Disconnect the front pre-tensioner seat belt connector.

4.  Connect the SST (Adapter harness) as shown in the figure.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the front pre-tensioner seat belt.

ac9uuw00009115

Warning
•  The front pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the front pre-tensioner seat belt for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Rear Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(6)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(7)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(10)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

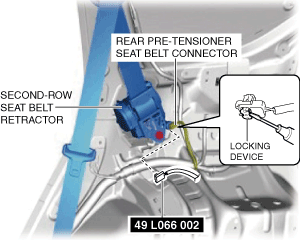

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac8wzw00000224

3.  Disconnect the rear pre-tensioner seat belt connector.

4.  Connect the SST (Adapter harness) as shown in the figure.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the rear pre-tensioner seat belt.

ac9uuw00009115

Warning
•  The rear pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the rear pre-tensioner seat belt for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL) [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Switch the ignition off.

3.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module, pre-tensioner seat belt, and the SST (Adapter harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side air bag module

Warning
•  The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.
Note
•  The SSTs, two types of adapter harnesses (for inflators No.1 and No.2) and two deployment tools are to be used to operate (deploy) the driver-side air bag module.

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Wrap the wiring harness (cross section 1.25 mm2{0.002 in2} or more) at least four times around the position shown in the figure for the driver-side air bag module.

ac8wzw00000225

3.  Connect the SST (Adapter harness) to the driver-side air bag module.

ac8wzw00000226

4.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the air bag module at least 4 times.

ac9uuw00009126

Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the air bag module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

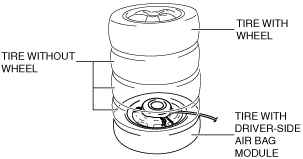

5.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009127

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac8wzw00000227

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the driver-side air bag module.

11.  Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the driver-side air bag module (both inflators).

ac8wzw00000220

Warning
•  Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 11 again. If a total of two operation (explosive) sounds cannot be verified even though Step 11 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side air bag module

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

3.  Connect the SST (Adapter harness) to the passenger-side air bag module.

ac8wzw00000228

4.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

ac9uuw00009131

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

5.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009132

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the passenger-side air bag module.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side air bag module

1.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
(2)  Front seat back trim and seat back pad (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)

2.  Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

3.  Install the nuts.

ac8wzw00000229

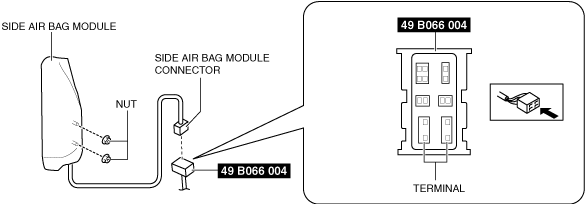

4.  Connect the side air bag module connector to either one of the SST (Adapter harness) terminals shown in the figure.

5.  Put the side air bag module inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt at least 4 times.

ac9uuw00009141

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

6.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009142

7.  Secure the tires with wire.

ac9uuw00009128

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00006020

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the side air bag module.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain air bag module

1.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(7)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(11)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(14)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(16)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(17)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(18)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(19)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(20)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(21)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(22)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(24)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(25)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(26)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

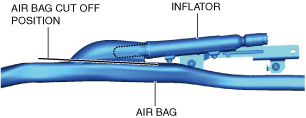

3.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

ac8wzw00000230

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

4.  Connect the SST (Adapter harness) to the curtain air bag module.

ac8wzw00000231

5.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

ac9uuw00009137

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the air bag module is operated (deployed). Make sure to install the air bag module securely.

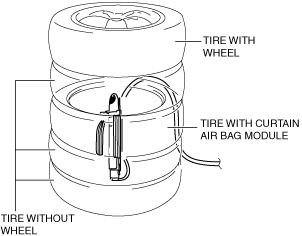

6.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009138

7.  Secure the tires with wire.

ac9uuw00009128

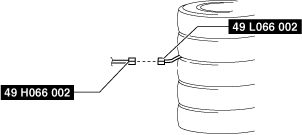

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009139

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the curtain air bag module.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

ac9uuw00009115

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Front pre-tensioner seat belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Remove the front seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) to the front pre-tensioner seat belt.

ac9wzw00004583

4.  Put the front pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

ac9wzw00004584

Warning
•  If the front pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the front pre-tensioner seat belt to the tire, verify that the pre-tensioner part is inside the tire.

5.  Stack the tire with the front pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the front pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

ac9wzw00004585

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the front pre-tensioner seat belt.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the front pre-tensioner seat belt.

ac9uuw00009115

Warning
•  The front pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the front pre-tensioner seat belt for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Rear Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(6)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
(7)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(10)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Remove the second-row seat belt. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) to the rear pre-tensioner seat belt.

ac8wzw00000232

4.  Put the rear pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

ac9wzw00004587

Warning
•  If the rear pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the rear pre-tensioner seat belt to the tire, verify that the pre-tensioner part is inside the tire.

5.  Stack the tire with the rear pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the rear pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

ac9wzw00004588

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the rear pre-tensioner seat belt.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the rear pre-tensioner seat belt.

ac9uuw00009115

Warning
•  The rear pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the rear pre-tensioner seat belt for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
