ROOF RAIL REMOVAL/INSTALLATION

id091600806200

Replacement part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(11)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(14)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(16)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(17)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(18)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(19)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(20)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(21)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(22)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(23)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(24)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(25)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(26)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(27)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Remove the curtain air bag module installation bolts and set the curtain air bag module aside to a position where the roof rail can be removed. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

4.  Remove the nuts in the order of (1), (2), (3), (4), (5), and (6).

ac8wzw00000817

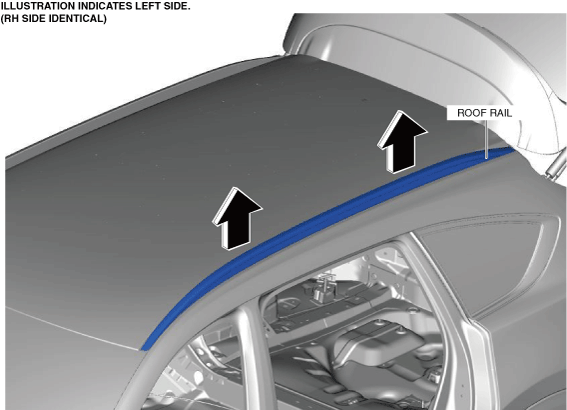

5.  Move the roof rail in the direction of the arrows shown in the figure and remove it.

ac8wzw00000818

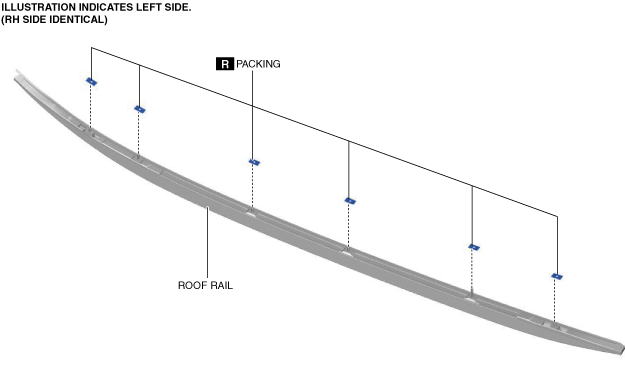

6.  Remove the packings.

ac8wzw00000819

7.  Install in the reverse order of removal.
