DASHBOARD REMOVAL/INSTALLATION

id091700800300

Replacement part

Removal

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition is switched OFF with the driver-side door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON (engine off or on).

2.  Open the driver-side door.

3.  Switch the ignition OFF.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(5)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(6)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(7)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(8)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(10)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(11)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(12)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(13)  Meter hood No.2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(14)  Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(15)  Console side panel (rear console) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(16)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(17)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(18)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(19)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(20)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(21)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(22)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(23)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(24)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(25)  Cabin temperature sensor and duct hose (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

(26)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(27)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(28)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(29)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(30)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(31)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(32)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(33)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(34)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(35)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(36)  Selector lever bracket (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(37)  SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(38)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(39)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

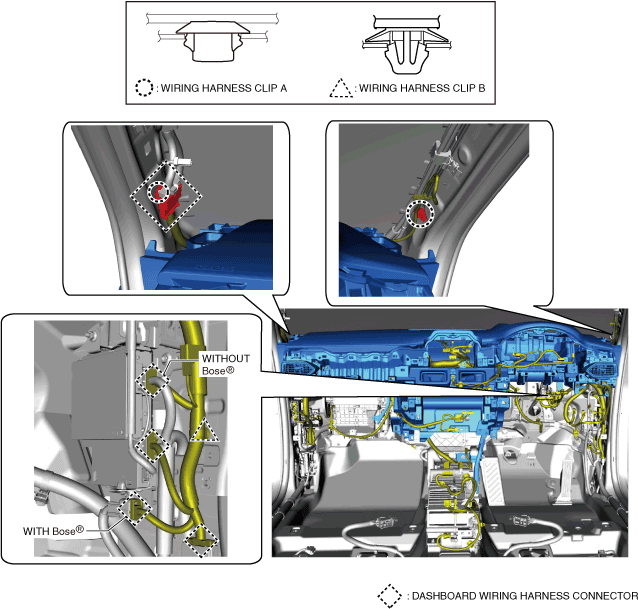

6.  Disconnect the dashboard wiring harness connectors and remove wiring harness clips A and B.

ac8wzw00001613

7.  Remove the bolt.

ac8wzw00001614

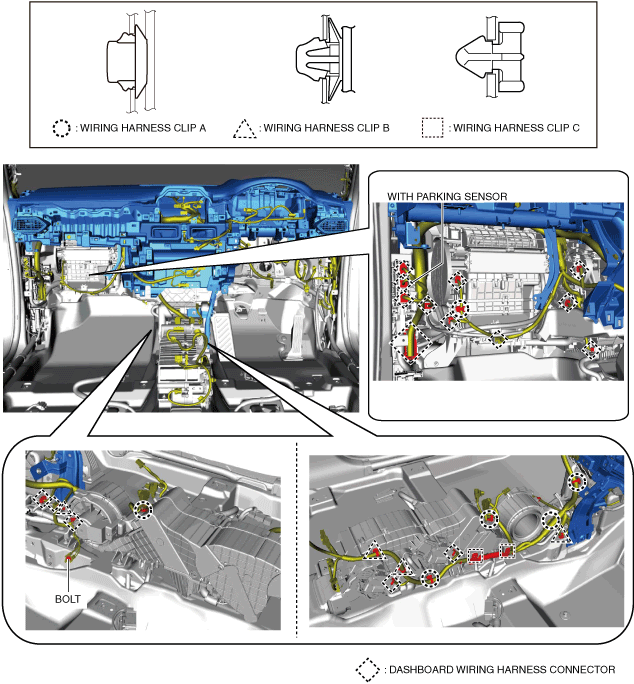

8.  Disconnect the dashboard wiring harness connectors and remove wiring harness clips A, B, and C.

9.  Remove bolts A, B, and C.

ac8wzw00001615

10.  Remove the nuts.

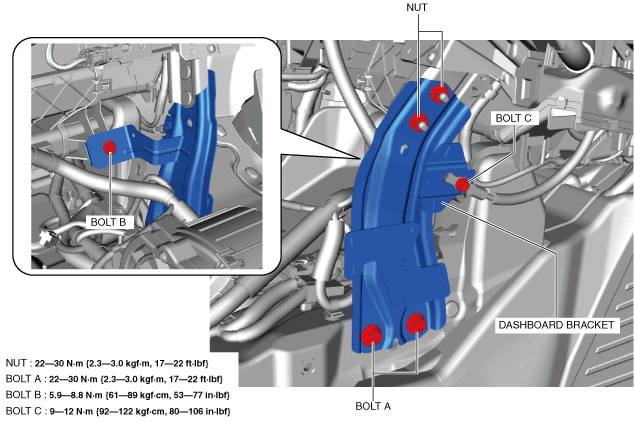

11.  Remove the dashboard bracket.

12.  To prevent damage to the windshield, apply protective tape to the positions shown in the figure.

ac8wzw00001616

13.  Remove the bolts.

ac8wzw00001617

14.  Remove the caps and the bolts.

ac8wzw00001618

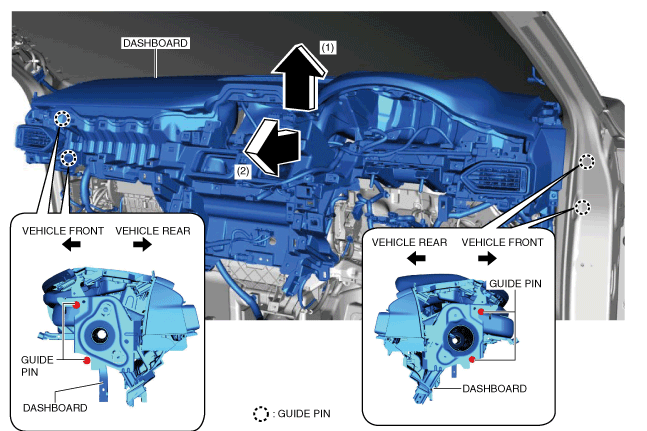

15.  Lift the dashboard up in the direction of arrow (1) shown in the figure and remove it from the guide pins on the vehicle body sides, and pull out the dashboard in the direction of arrow (2).

ac8wzw00001619

16.  Rotate the dashboard in the direction shown in the figure.

ac8wzw00001620

17.  Remove the dashboard from either the driver-side or passenger-side front door opening.

Installation

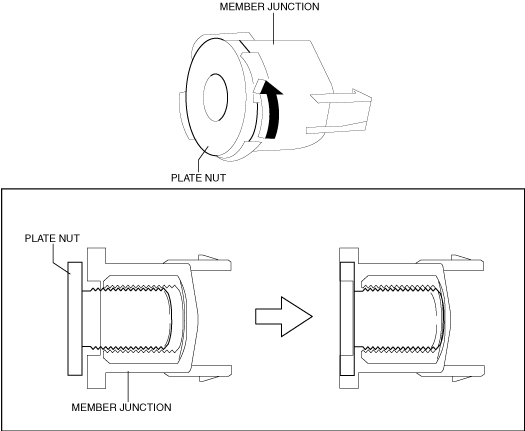

1.  Rotate the plate nut by hand in the direction of the arrow shown in the figure until it is seated.

Caution

•  After removing the dashboard, the plate nuts of the member junctions will have loosened. If the dashboard is installed with the plate nuts loosened, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, seat the plate nuts of the member junctions.

•  If the plate nuts are tightened excessively, the plate nuts may not move when installing the bolts, resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.

Note

•  If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

ac8wzw00001621

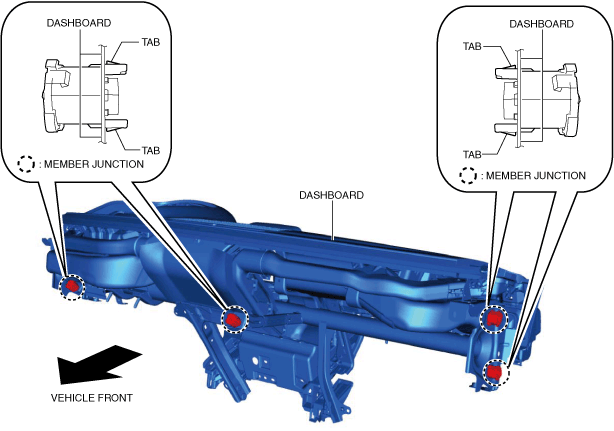

2.  Verify that the member junction tabs are engaged to the dashboard.

Caution

•  If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

ac8wzw00001622

3.  Insert the dashboard from either the driver-side or passenger-side front door opening.

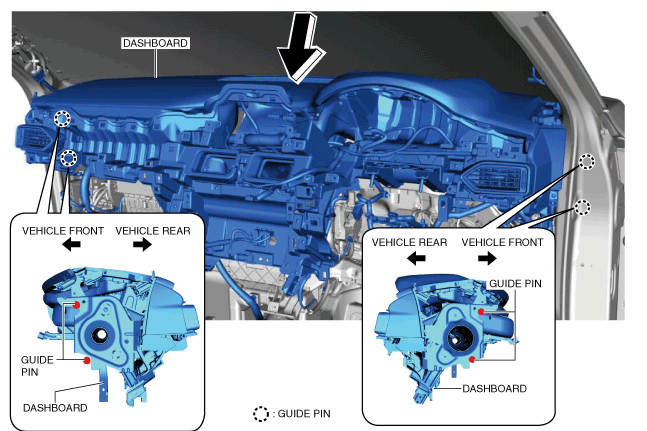

4.  Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and then set it.

Note

•  Visually verify the installation condition of the guide pins on the vehicle body sides and the dashboard from the position shown in the figure.

ac8wzw00002224

5.  Insert the bolts on the passenger-side.

Note

•  Tighten the bolts to the specified torque after positioning the member junction.

ac8wzw00002225

6.  Tighten the bolts on the driver-side temporarily.

ac8wzw00002226

7.  Tighten the bolts on the passenger-side temporarily.

Note

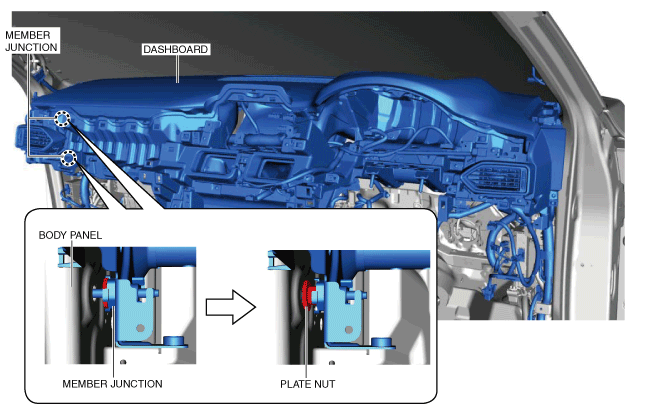

•  When seating the bolts, visually verify from the lower side of the dashboard that the plate nuts of the member junctions emerge toward the body panel while rotating.

ac8wzw00002227

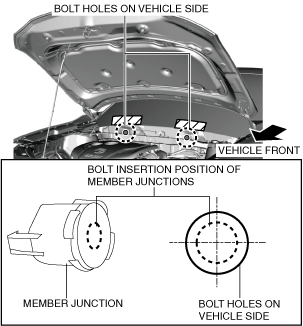

8.  Verify that the bolt holes on the vehicle side and the bolt insertion position of the member junctions are aligned.

Note

•  If the bolt holes on the vehicle side and the bolt insertion position of the member junctions are not aligned, remove the bolts on the driver-side and passenger-sides and repeat from Step 5.

ac8wzw00002228

9.  Tighten the new bolts temporarily.

Caution

•  If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.

ac8wzw00002229

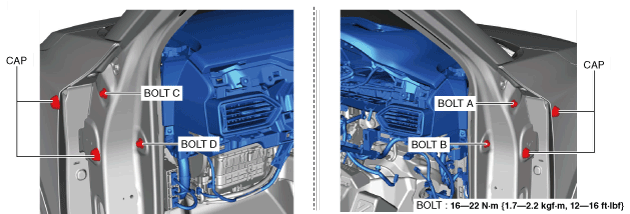

10.  Tighten the bolts A,B on the driver-side to the specified torque and install the caps.

ac8wzw00002230

11.  Tighten the bolts C,D on the front passenger-side to the specified torque and install the caps.

12.  Tighten the bolts to the specified torque.

ac8wzw00002231

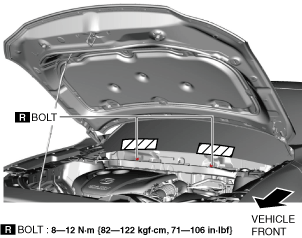

13.  Peel off the protective tape.

ac8wzw00002232

14.  Install the dashboard bracket.

ac8wzw00002445

15.  Install the nuts.

16.  Install bolts A, B, and C.

17.  Connect the dashboard wiring harness connectors and install wiring harness clips A, B, and C.

ac8wzw00001614

18.  Install the bolt.

19.  Connect the dashboard wiring harness connectors and install wiring harness clips A and B.

ac8wzw00001613

20.  Install the following parts:

(1)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(2)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(3)  SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(4)  Selector lever bracket (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(5)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(8)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(9)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(10)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(12)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(13)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(14)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(15)  Cabin temperature sensor and duct hose (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

(16)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(18)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(19)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(20)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(21)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(22)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(23)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(24)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(25)  Console side panel (rear console) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(26)  Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(27)  Meter hood No.2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(28)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(29)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(30)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(31)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(32)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(33)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(34)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(35)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(36)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(37)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(38)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(39)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

21.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
