FLOOR COVERING REMOVAL/INSTALLATION
id091700803000
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (5) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
-
- (6) Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
-
- (7) Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
-
- (8) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (9) Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
-
- (10) Console side panel (rear console) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (11) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (12) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (14) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (15) Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)
-
- (16) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (17) Second-row seat console box (with second-row seat console box) (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (18) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (19) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (20) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (21) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (22) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (23) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (24) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (25) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (26) Third-row seat belt installation bolt (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-

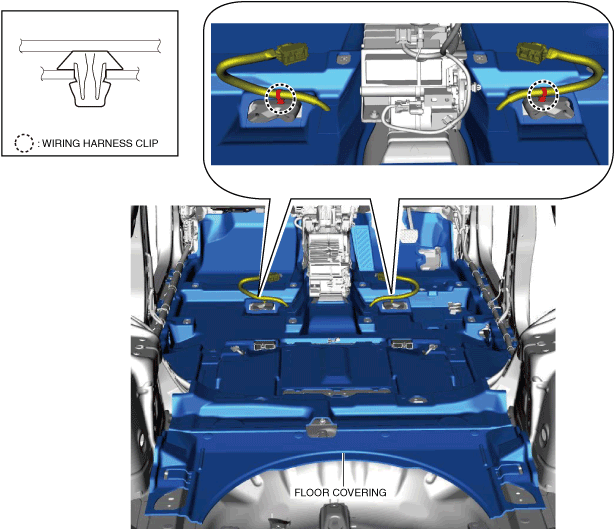

3. Remove the wiring harness clips.

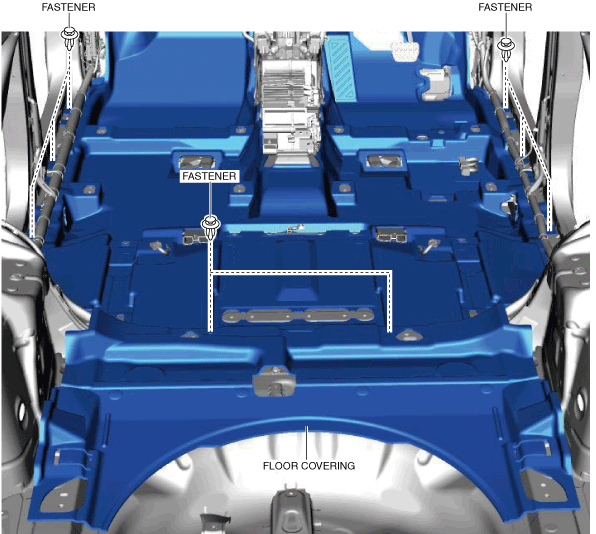

4. Remove the fasteners.
5. Fold the floor covering and remove it from the door opening.
6. Install in the reverse order of removal. (See Floor Covering Installation Note.)
Floor Covering Installation Note
-
Caution
-

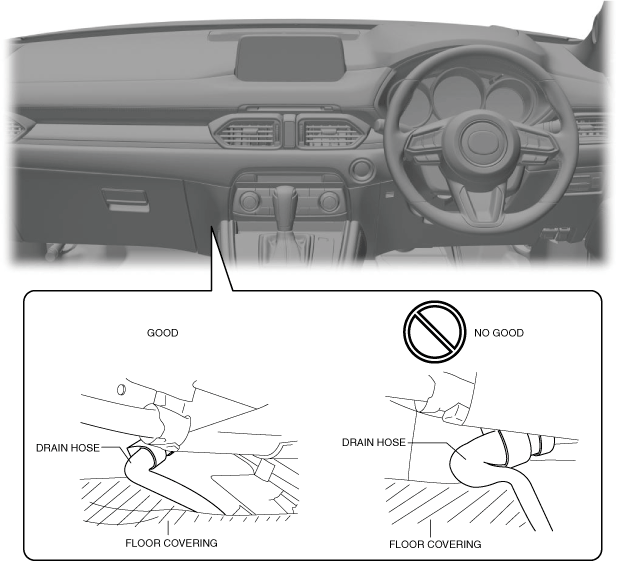

• When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.
1. Place the floor covering with it aligned to the body.
2. Before installing the side wall, verify that the A/C unit drain hose is not deformed.

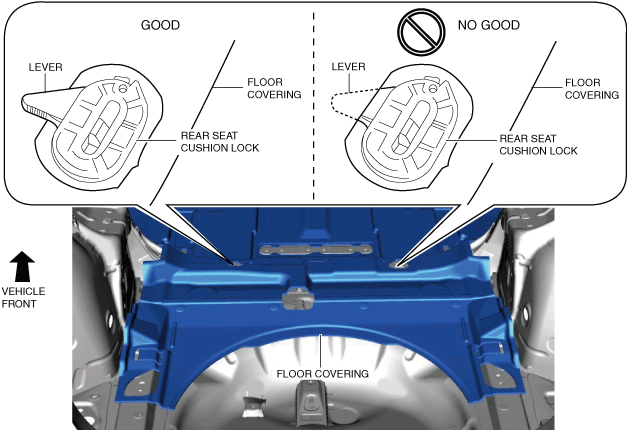

• If the rear seat cushion lock lever is covered by the floor covering, the rear seat cushion lock cannot be released. When installing the floor covering, do not cover the rear seat cushion lock lever with the floor covering.
