CENTER MAP LIGHT INSPECTION

id091800808800

Bulb Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

7.  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

8.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

9.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

10.  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

11.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

17.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

18.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

19.  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

20.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

21.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

22.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

23.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

24.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

25.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

26.  Center map light (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)

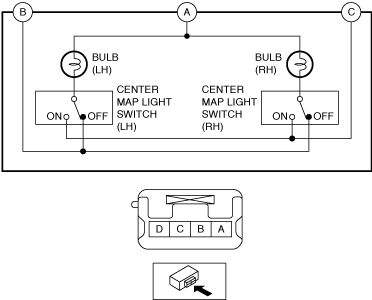

3.  Verify that the continuity between the center map light terminals is as indicated in the table.

ac9wzw00003457

ac9wzw00003458

•  If not as indicated in the table, replace the center map light or center map light bulb. (See CENTER MAP LIGHT REMOVAL/INSTALLATION.) (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION.)

LED Type (Without Interior Light Door Open Interlock Switch For Front Map Light)

LED illumination inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center map light LED. (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION.)

3.  Apply battery voltage to the center map light LED and connect it to the ground.

ac9wzw00003459

4.  Verify that the LED turns on.

•  If the LED does not turn on, replace the center map light LED. (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION.)

Center map light switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

7.  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

8.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

9.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

10.  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

11.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

17.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

18.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

19.  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

20.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

21.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

22.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

23.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

24.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

25.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

26.  Center map light (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)

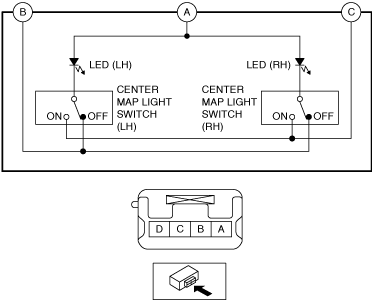

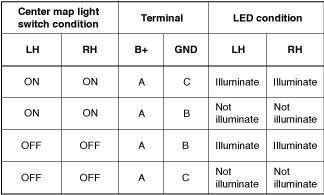

3.  Verify that the LED illumination condition is as indicated in the table by applying battery voltage to each terminal of the center map light and connecting them to the ground.

ac9wzw00003460

ac9wzw00003461

•  If the LED does not turn on as indicated in the table, replace the center map light. (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)

LED Type (With Interior Light Door Open Interlock Switch For Front Map Light)

LED illumination inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center map light LED. (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION.)

3.  Apply battery voltage to the center map light LED and connect it to the ground.

ac9wzw00003459

4.  Verify that the LED turns on.

•  If the LED does not turn on, replace the center map light LED. (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION.)

Center map light switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

7.  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

8.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

9.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

10.  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

11.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

17.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

18.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

19.  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

20.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

21.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

22.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

23.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

24.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

25.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

26.  Center map light (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)

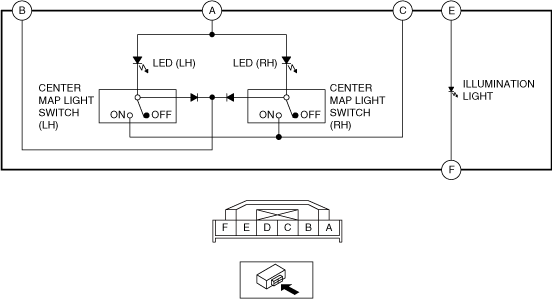

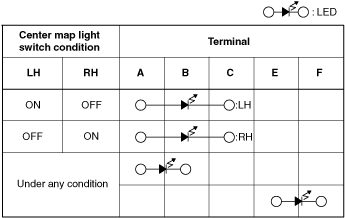

3.  Verify that the continuity between the center map light terminals is as indicated in the table.

ac9uuw00010731

ac9uuw00010732

•  If not as indicated in the table, replace the center map light. (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)
