ANTENNA FEEDER NO.1 INSPECTION
id092000812400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (2) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (6) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (7) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (8) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (9) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (10) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (11) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (16) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (17) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (18) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (19) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (20) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (21) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (22) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (23) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (24) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (25) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
3. Disconnect tuner and amp unit (TAU) side connector.
4. Disconnect antenna feeder No.2 side connector (center roof antenna).
5. Disconnect antenna feeder No.2 side connector (DAB antenna).

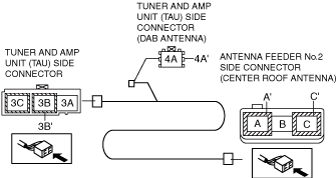

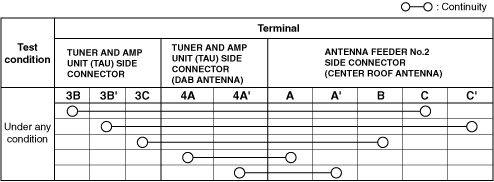

6. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.
-
