HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]
id0740a1703100
Structural View (inside cabin)

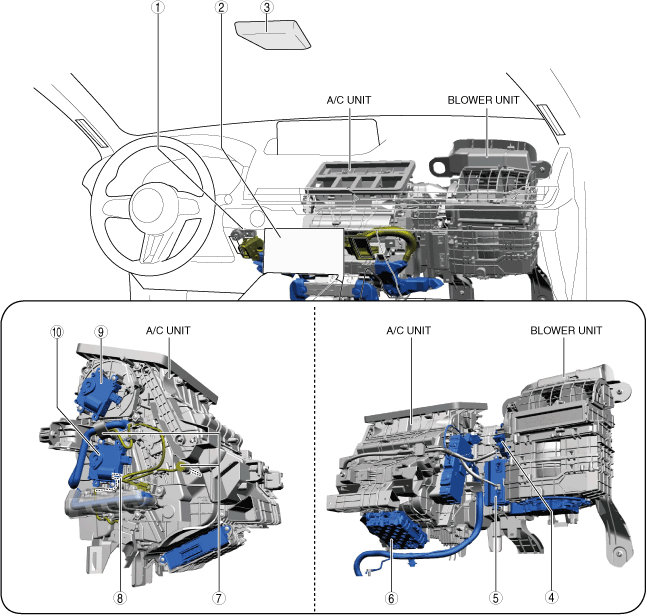

L.H.D.
a30zzw00002850
|
|
1
|
Passenger compartment temperature sensor
|
|
2
|
Climate control unit
|
|
3
|
Solar radiation sensor/humidity sensor
|
|
4
|
Air intake actuator
|
|
5
|
Dash-electrical supply unit
|
|
6
|
Heat pump control unit
|
|
7
|
Temperature sensor of air for PTC/temperature sensor of refrigerant line for electric compressor outlet
|
|
8
|
Evaporator temperature sensor
|
|
9
|
Airflow mode actuator
|
|
10
|
Air mix actuator
|

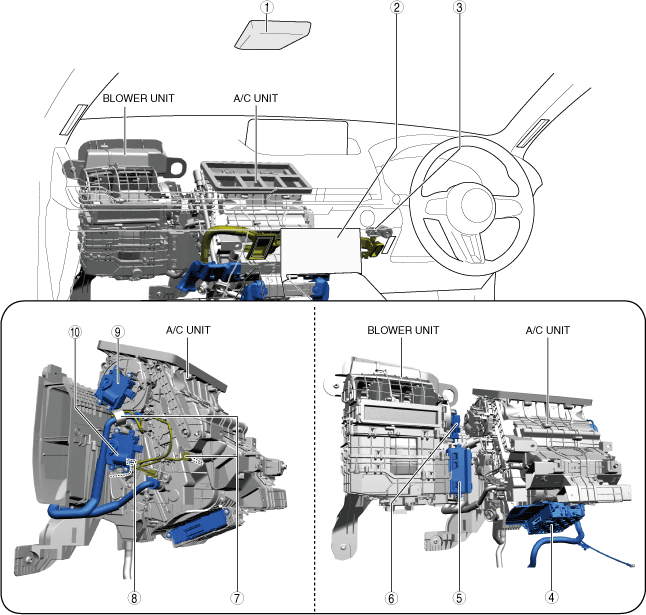

R.H.D.
a30zzw00006709
|
|
1
|
Solar radiation sensor/humidity sensor
|
|
2
|
Climate control unit
|
|
3
|
Passenger compartment temperature sensor
|
|
4
|
Heat pump control unit
|
|
5
|
Dash-electrical supply unit
|
|
6
|
Air intake actuator
|
|
7
|
Temperature sensor of air for PTC/temperature sensor of refrigerant line for electric compressor outlet
|
|
8
|
Evaporator temperature sensor
|
|
9
|
Airflow mode actuator
|
|
10
|
Air mix actuator
|
Structural View (exterior)

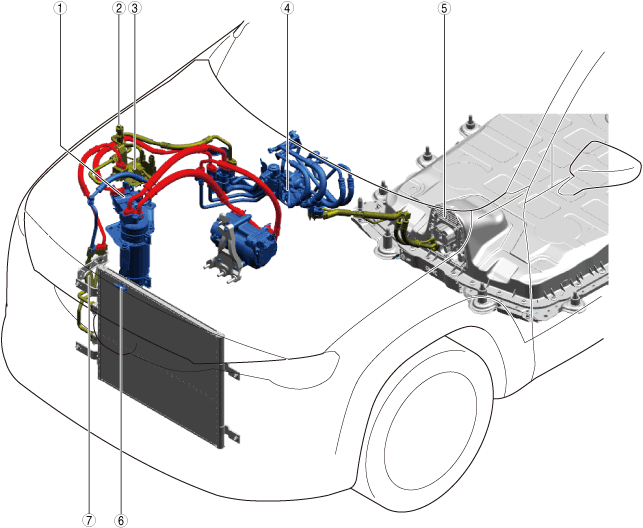

L.H.D.
a30zzw00002851
|
|
1
|
3way valve for refrigerant
|
|
2
|
Refrigerant pressure sensor No.1
|
|
3
|
2way valve for refrigerant
|
|
4
|
Temperature sensor of refrigerant line for evaporator outlet
|
|
5
|
Refrigerant pressure sensor No.2
|
|
6
|
Ambient temperature sensor
|
|
7
|
Temperature sensor of refrigerant line for condenser outlet
|

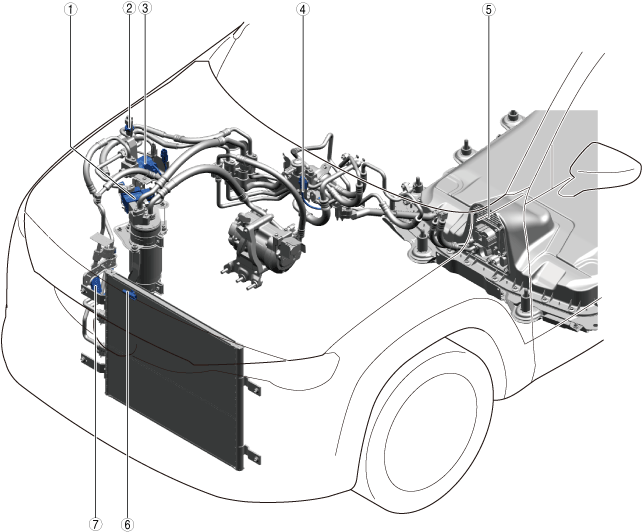

R.H.D.
a30jjw00004959
|
|
1
|
3way valve for refrigerant
|
|
2
|
Refrigerant pressure sensor No.1
|
|
3
|
2way valve for refrigerant
|
|
4
|
Temperature sensor of refrigerant line for evaporator outlet
|
|
5
|
Refrigerant pressure sensor No.2
|
|
6
|
Ambient temperature sensor
|
|
7
|
Temperature sensor of refrigerant line for condenser outlet
|
