EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]


id0740a1703900

Oil and chemical type

Refrigerant

Type: HFO-1234yf (R-1234yf)

Warning
•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module.(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

High Voltage Part Inspection And Removal/Installation Notes

Warning
<<High voltage>>
•  If necessary measures such as wearing the correct protective gear are not taken when inspecting or removing/installing the high voltage parts, it could cause electrical shock and result in serious injury or, in the worst case, death.
•  Before inspecting or removing/installing the high voltage parts, refer to [HIGH VOLTAGE SERVICE CAUTIONS] in the general information and [High Voltage Part Inspection and Removal/Installation Notes] of the high voltage system service cautions and implement the necessary measures and preparations. (See HIGH VOLTAGE SERVICE CAUTIONS.) (See HIGH VOLTAGE SYSTEM SERVICE CAUTIONS.)
Warning
•  The EV system is hot immediately after driving and charging, and can cause severe burns. Turn off the EV system and wait until it is cool before performing the servicing.
•  If the cooling system cap is removed while the EV system is hot, hot coolant may be ejected, causing severe burns or injury. Perform the removal of the cooling system cap when the EV system is cool.
•  When removing the cooling system cap, cover the cooling system cap with a clean cloth and remove it slowly.
•  The cooling fan may suddenly start operating regardless of the main power switch position. Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan. When servicing the cooling fan or parts near the cooling fan, ensure the following.
―  Do not perform normal charging or quick charging
―  Do not select high voltage battery cooling on center display after EV system stops
―  Do not open/close doors frequently with main power switched OFF
―  Switch to connected vehicle maintenance mode (MyMazda App connected vehicle)
―  Cancel climate control timer
―  Operate center display and turn off battery heater operation
Warning
•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module.(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
Caution
•  When leaving the A/C unit, store it in the correct position shown in the figure. If the A/C unit is left in an incorrect position, the cooler pipe or urethane could be deformed or damaged.
a30zzw00002857

1.  Load the vehicle on the auto lift so that it can be lifted up.

2.  Verify that the READY indicator on the instrument cluster is not illuminated.

•  If the READY indicator is turned on, switch the main power OFF.

3.  Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

4.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Partially peel back the cover.

a30zzw00004019

6.  Remove the service hole cover.

a30zzw00004020

7.  Wear insulating gloves and remove the service plug using the following procedure.

Warning
<<High voltage>>
•  Touching the terminal on the vehicle side can result in serious injury or death from electric shock. For this reason, after removing the service plug, cover the vehicle-side terminals with insulating tape so that they cannot be touched.
•  Do not touch high voltage parts for 10 min after removing service plug. Electric charges may be stored on the condenser for 10 min after the service plug is removed, and touching high voltage parts during that time can result in serious injury or death from electric shock.
•  Service plugs must be removed by workers inspecting/removing/installing high voltage parts. Keep the removed service plug on your person until inspection/removal/installation of the high voltage parts is completed to prevent other workers from accidentally installing the service plug.
Caution
<<High voltage>>
•  After removing the service plug, cover the vehicle side terminals with insulating tape to prevent foreign matter from adhering to them.
•  When you are keeping the service plug on your person, cover the service plug terminals with insulating tape to prevent damage to them.
•  Do not switch the main power ON (READY on) after removing the service plug. If the main power is switched ON (READY on) after removing the service plug, the vehicle may malfunction.
(1)  Slide the lock in the direction of the arrow shown in the figure. (Do not pull out completely)
a30zzw00004021
(2)  Raise the lever.
a30zzw00004502
(3)  Press the area indicated by arrow (1) shown in the figure, release the tabs, and then raise the lever until it is perpendicular.
a30zzw00004503
(4)  Hold the lever and pull the service plug straight up.
a30zzw00004023

8.  After removing the service plug, leave it for 10 min.

9.  Wear insulating gloves and measure the voltage at the high voltage cable connection (junction box No.3 side) using the following procedure.

(1)  Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION.)
Caution
<<High voltage>>
•  Be careful not to allow foreign matter or water droplets to enter the junction box No.3. Since the junction box No.3 has a high voltage circuit, there is a risk of malfunction if foreign matter or water drops enter it.
•  Remove the terminal cover by pulling it straight up. The terminal cover is fitted with an interlock switch. This interlock switch may be damaged if the terminal cover is removed while being tilted.
•  Do not touch the moisture-proof seal on the terminal cover. If the seal is touched or damaged, replace the terminal cover.
a30zzw00004024
(2)  Remove the terminal cover. (See HIGH VOLTAGE CABLE REMOVAL/INSTALLATION.)
(3)  Measure the voltage at the high voltage cable connection.
Note
•  Use a voltmeter with a measurement range of 450 V DC or more.
a30zzw00004025
―  Verify that the voltmeter indicates 0 V and go to the next step.
•  Verify that the waterproof rubber on the terminal cover is securely installed.
•  Be careful not to damage the interlock, and install it securely.
(4)  Install the terminal cover. (See HIGH VOLTAGE CABLE REMOVAL/INSTALLATION.)

10.  Collect the refrigerant. (See REFRIGERANT RECOVERY.)

11.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

12.  Remove the bolt.

a30zzw00006771

13.  Remove the brackets.

14.  Disconnect the connectors.

a30zzw00006793

15.  Remove the grommet.

16.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
(3)  Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(5)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(7)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)
(8)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)
(9)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(10)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(11)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(12)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(13)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)
(14)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
(15)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(16)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(17)  Glove compartment(See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)
(18)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(19)  Passenger-side lower panel(See PASSENGER-SIDE LOWER PANEL REMOVAL [(E)].)(See PASSENGER-SIDE LOWER PANEL INSTALLATION [(E)].)
(20)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
(21)  Knee air bag module(See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
(22)  Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
(23)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(24)  Driver-side air bag module(See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
(25)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
(26)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(27)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(28)  Clock spring(See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
(29)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)
(30)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
(31)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
(32)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
(33)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
(34)  Instrument cluster(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].)
(35)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
(36)  Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)
(37)  Connectivity master unit (CMU)(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION [(E)].)
(38)  Dashboard side cover(See DASHBOARD SIDE COVER REMOVAL/INSTALLATION [(E)].)
(39)  Inverter (With AC power outlet) (See INVERTER REMOVAL/INSTALLATION.)
(40)  Driver monitoring camera unit(See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)
(41)  Dashboard(See DASHBOARD REMOVAL [(E)].)(See DASHBOARD INSTALLATION [(E)].)
(42)  Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

17.  Remove the blower unit. (See BLOWER UNIT REMOVAL/INSTALLATION.)

18.  Remove the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION.)

19.  Partially peel back the floor mat and pull out the grommet on the vehicle interior.

20.  Remove the bolt.

a30zzw00006912

21.  Disconnect the ground.

22.  Remove the following parts:

(1)  Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
(2)  Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

23.  Partially peel back the front passenger's floor covering.

24.  Disconnect the drain hose.

a30zzw00006913

25.  Disconnect the connectors.

L.H.D.

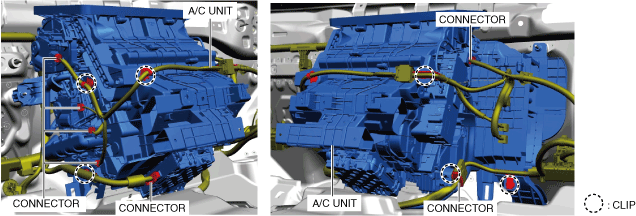

a30zzw00002770

R.H.D.

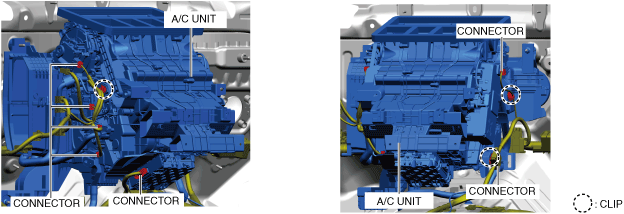

a30zzw00006914

26.  Remove the clips.

27.  Remove the PTC heater. (See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER REMOVAL/INSTALLATION.)

28.  Remove the A/C unit. (See A/C UNIT REMOVAL/INSTALLATION.)

29.  Remove the evaporator. (See A/C UNIT DISASSEMBLY/ASSEMBLY.)

30.  Remove the evaporator temperature sensor.

31.  Install in the reverse order of removal.

32.  Wear insulating gloves and install the service plug using the following procedure.

(1)  Insert the service plug as far as it will go.
a30zzw00004026
(2)  Depress the lever completely.
a30zzw00004027
(3)  Slide the lock in the direction of the arrow shown in the figure until the hook is engaged.
a30zzw00004028

33.  Install the service hole cover.

a30zzw00004020

34.  Close the cover.

a30zzw00004029

35.  Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

36.  Charge the refrigerant. (See REFRIGERANT CHARGING.)

37.  Perform the air-conditioning system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)
