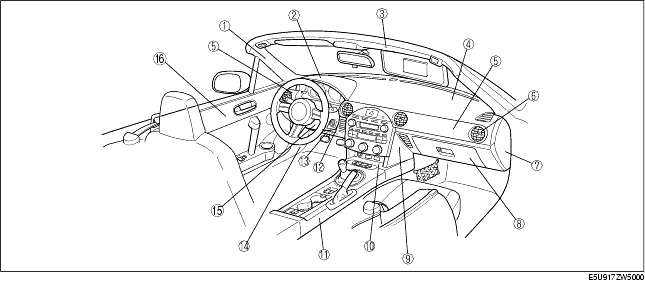

1
|
A-pillar trim
|
|
2
|
Meter hood
|
|
3
|
Front header trim
|
|
4
|
Dashboard
|
|
5
|
Decoration panel
|
|
6
|
Ventilator grille
|
|
7
|
Side panel
|
|
8
|
Glove compartment
|
|
9
|
Side wall
|
|
10
|
Console panel
|
|
11
|
Console
(See CONSOLE REMOVAL/INSTALLATION.)
(See CONSOLE DISASSEMBLY/ASSEMBLY.)
|
|
12
|
Lower panel
|
|
13
|
Front side trim
|
|
14
|
Column cover
|
|
15
|
Door trim
|
|

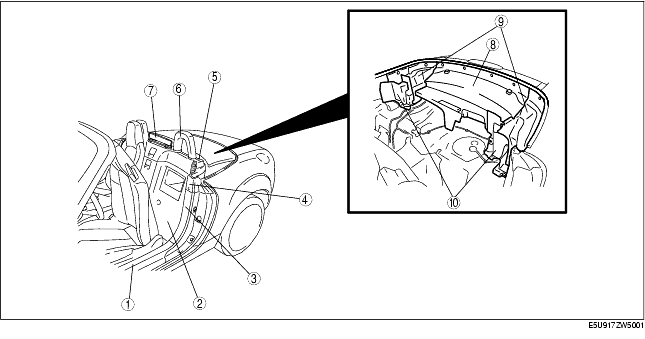

1
|
Scuff plate
|
|
2
|
Back trim
|
|
3
|
Tire house trim
|
|
4
|
Quarter trim
|
|
5
|
Seat back bar lower garnish
|
|
6
|
Seat back bar garnish
|
|
7
|
Aeroboard
|
|
8
|
Rear package trim
|
|
9
|
Rear side trim
|
|
10
|
Side shelf
|
