GPS ANTENNA FEEDER INSTALLATION

id092000812000

Caution

•  If the GPS antenna feeder is installed with tension on the cable and wiring harness it could result in loosening of the connection areas and poor contact. When installing and connecting the GPS antenna feeder, always make sure there is slack on the cable and wiring harness.

Note

•  The GPS antenna feeder is integrated with the dashboard wiring harness.

•  When installing a new GPS antenna feeder, secure it to the dashboard wiring harness along the installation route of the old GPS antenna feeder.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(6)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(7)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(9)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(10)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(11)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(12)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(13)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(14)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(15)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(16)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(17)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(18)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(19)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(20)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(21)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)

(22)  Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(23)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(24)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(25)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(26)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(27)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(28)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

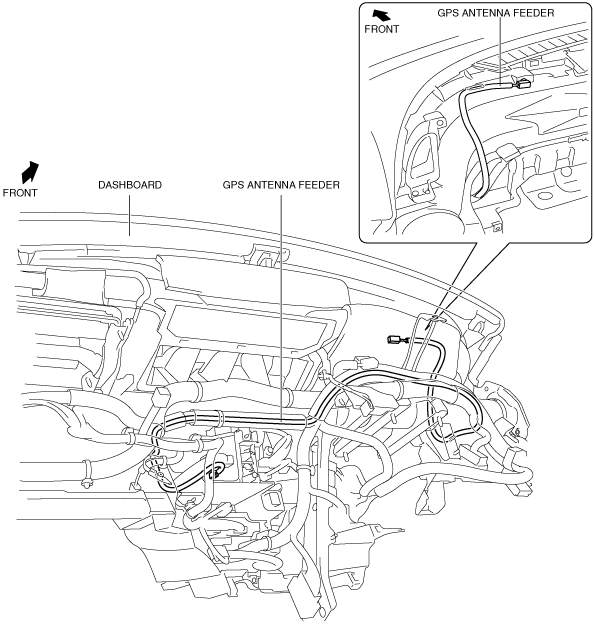

L.H.D.

am6zzw00001561

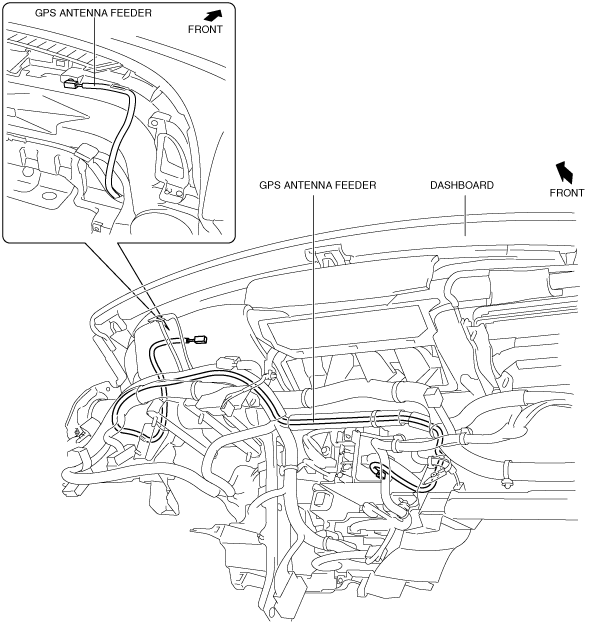

R.H.D.

am6zzw00004097
