DAB ANTENNA AMPLIFIER INSPECTION

id092000815900

4SD

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(11) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(17) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(18) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(21) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(22) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(23) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(24) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(25) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(26) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(27) Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

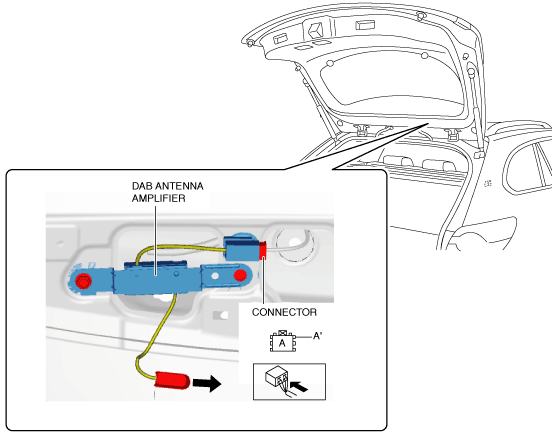

4. Measure the voltage at DAB antenna amplifier connector terminal A.

am6zzw00017515

If the voltage is the battery voltage:

• The DAB antenna amplifier is normal.

If the voltage is other than the battery voltage:

• Inspect the tuner and amp unit and the antenna feeder. (See ANTENNA FEEDER NO.1 INSPECTION.) (See ANTENNA FEEDER NO.2 INSPECTION.) (See ANTENNA FEEDER NO.3 INSPECTION.)

― If the tuner and amp unit and the antenna feeder are normal, replace the DAB antenna amplifier. (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

WGN
