ANTENNA FEEDER NO.3 INSPECTION

id092000813000

Without cennter display

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Remove the rear passenger's assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Disconnect antenna feeder No.1.

5.  Disconnect the center roof antenna connector.

6.  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

•  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

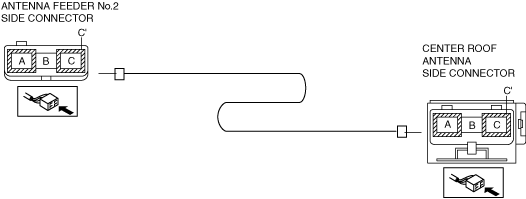

am6zzw00017500

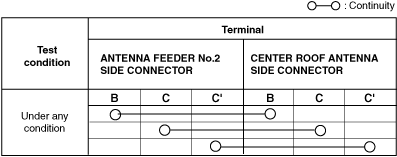

am6zzw00017540

With center display

4SD

With DAB antenna amplifier, Without FM antenna amplifier

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

22.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

23.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

24.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

25.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

26.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

27.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

28.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.3.

4.  Disconnect the center roof antenna connector.

5.  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

•  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

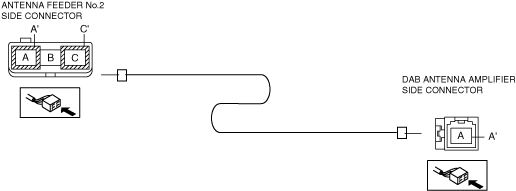

am6zzw00017501

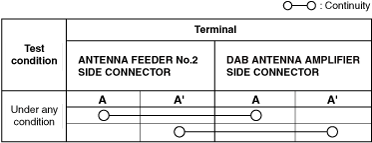

am6zzw00017502

Without DAB antenna amplifier, With FM antenna amplifier

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

22.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

23.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

24.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

25.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

26.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

27.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

28.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.3.

4.  Disconnect the center roof antenna connector.

5.  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

•  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

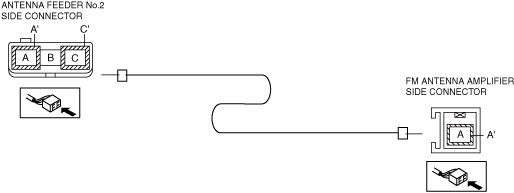

am6zzw00017503

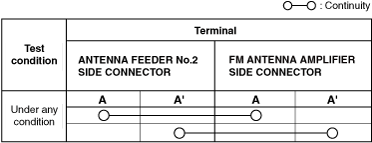

am6zzw00017504

With DAB antenna amplifier, With FM antenna amplifier

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

22.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

23.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

24.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

25.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

26.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

27.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

28.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.3.

4.  Disconnect the center roof antenna connector.

5.  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

―  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

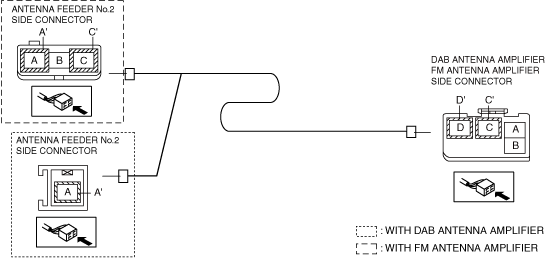

am6zzw00017541

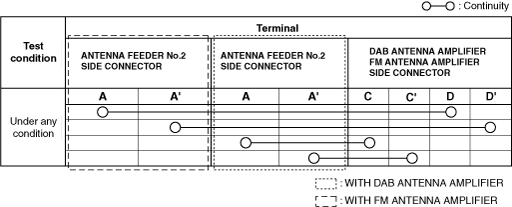

am6zzw00017506

WGN

Without DAB antenna amplifier, Without FM antenna amplifier

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.3.

4.  Disconnect the center roof antenna connector.

5.  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

―  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

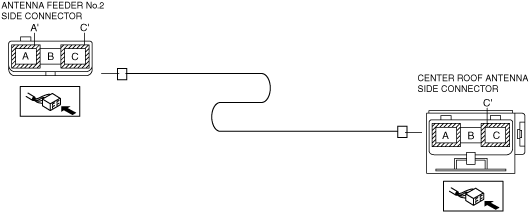

am6zzw00017507

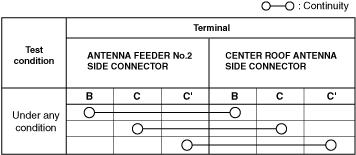

am6zzw00017508

With DAB antenna amplifier, Without FM antenna amplifier

•  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

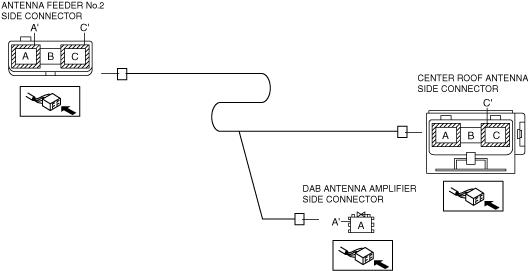

•  Disconnect antenna feeder No.3.

•  Disconnect the center roof antenna connector.

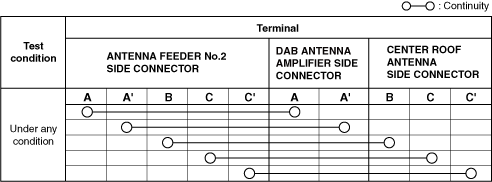

•  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

―  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

am6zzw00017509

am6zzw00017510

Without DAB antenna amplifier, With FM antenna amplifier

•  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

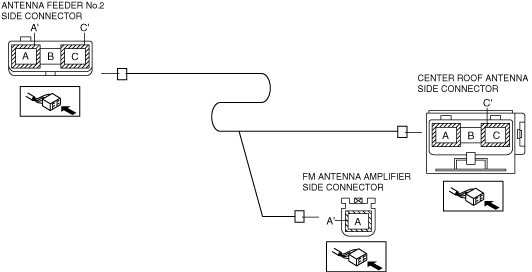

•  Disconnect antenna feeder No.3.

•  Disconnect the center roof antenna connector.

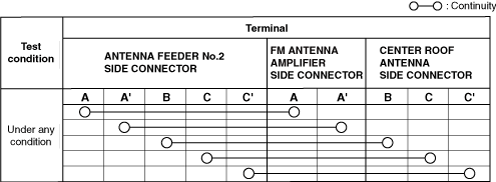

•  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

―  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

am6zzw00017511

am6zzw00017512

With DAB antenna amplifier, With FM antenna amplifier

•  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

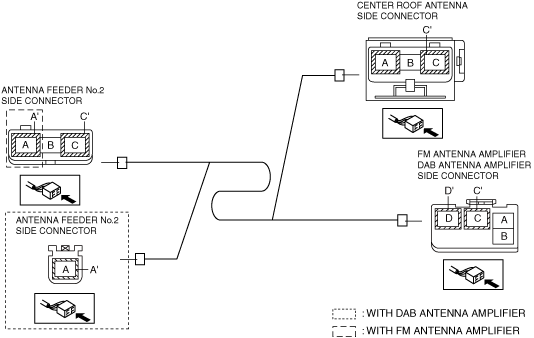

•  Disconnect antenna feeder No.3.

•  Disconnect the center roof antenna connector.

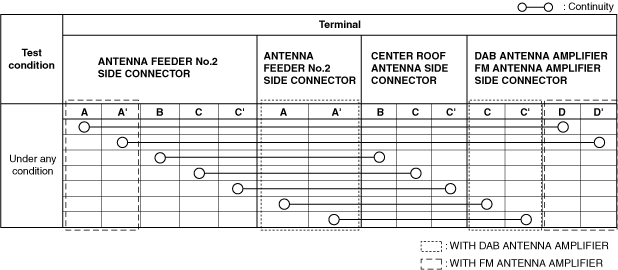

•  Verify that the continuity between antenna feeder No.3 terminals is as indicated in the table.

―  If not as indicated in the table, replace antenna feeder No.3. (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.)

am6zzw00017513

am6zzw00017514
