ANTENNA FEEDER NO.2 INSPECTION
id092000812500
4SD
Without center display
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (9) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (10) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (11) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (12) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (13) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (14) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (16) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (17) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)
-
- (18) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (20) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (21) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
-
- (22) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
-
- (23) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (24) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
-
- (25) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (26) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (27) Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (28) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

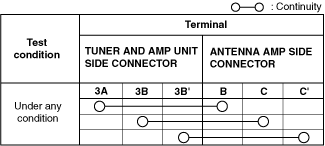

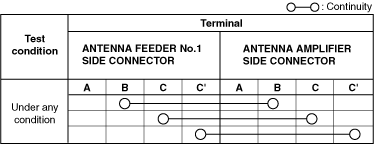

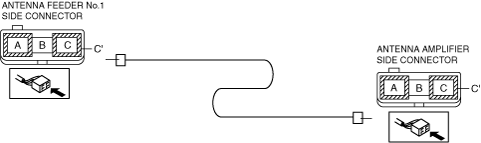

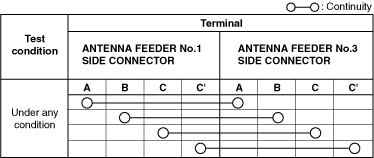

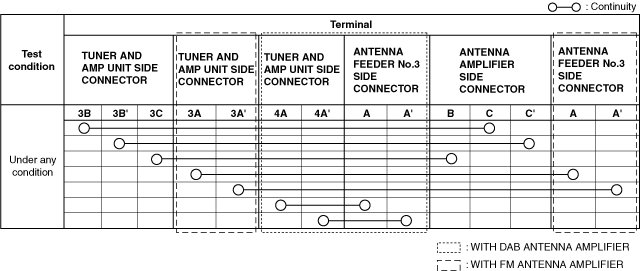

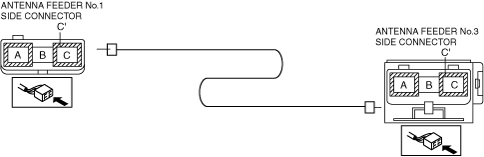

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
• If not as indicated in the table, replace antenna feeder No.2.
With center display
-
Without DAB antenna amplifier, without FM antenna amplifier
-
2. Remove the following parts:
-

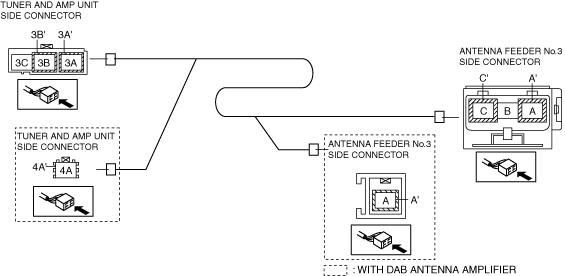

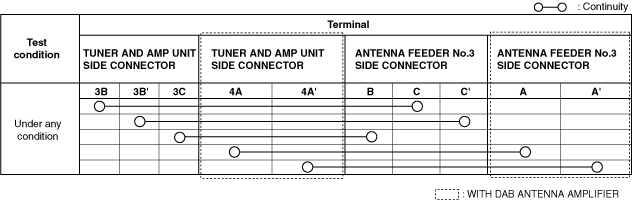

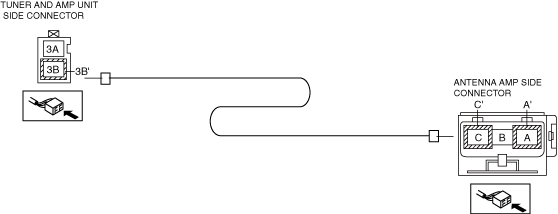

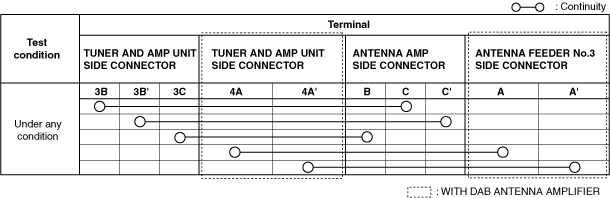

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
With DAB antenna amplifier, without FM antenna amplifier
-
2. Remove the following parts:
-

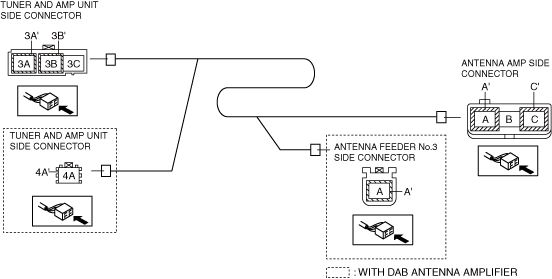

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
Without DAB antenna amplifier, with FM antenna amplifier
-
2. Remove the following parts:
-

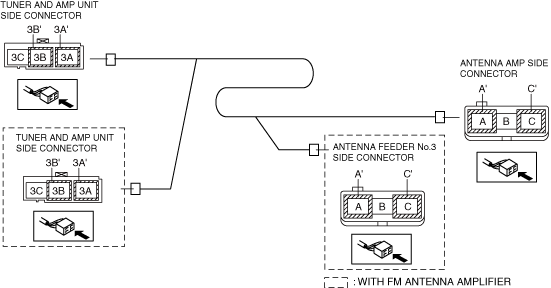

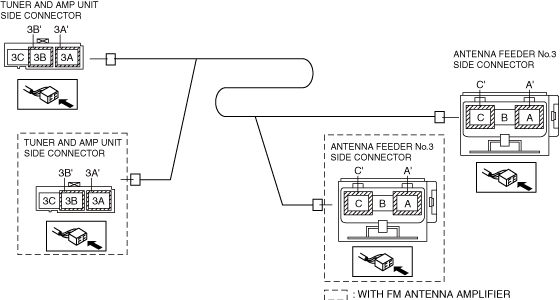

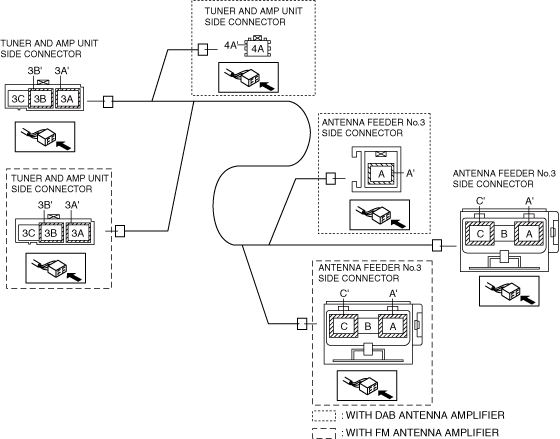

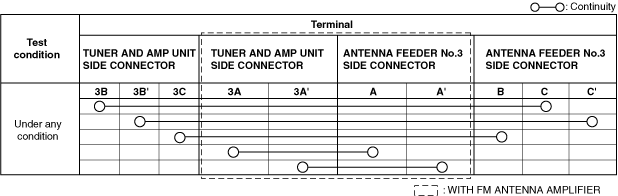

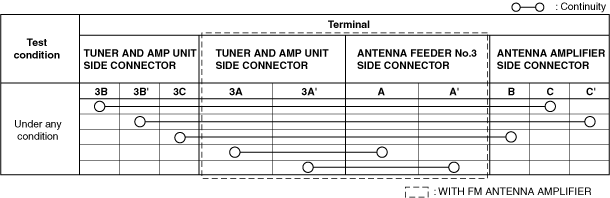

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
Without DAB antenna amplifier, with FM antenna amplifier
-
2. Remove the following parts:
-

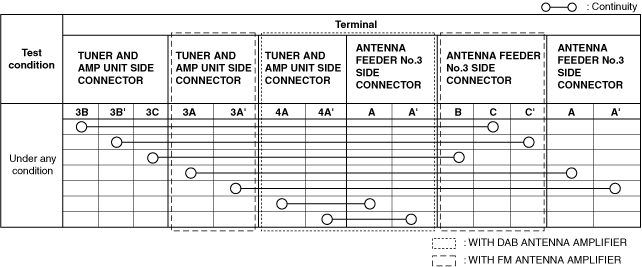

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
WGN
Without center display
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (7) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (9) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (11) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (12) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (13) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (14) Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)
-
- (15) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (16) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (17) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (18) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (19) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (20) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (21) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

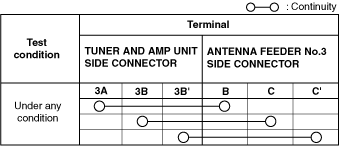

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
With center display
-
Without DAB antenna amplifier, without FM antenna amplifier
-
2. Remove the following parts:
-

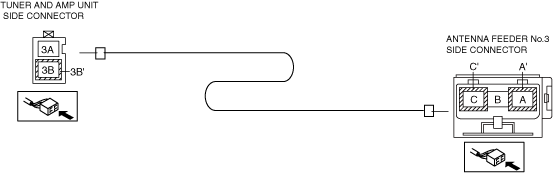

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
With DAB antenna amplifier, without FM antenna amplifier
-
2. Remove the following parts:
-
3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
Without DAB antenna amplifier, with FM antenna amplifier
-
2. Remove the following parts:
-

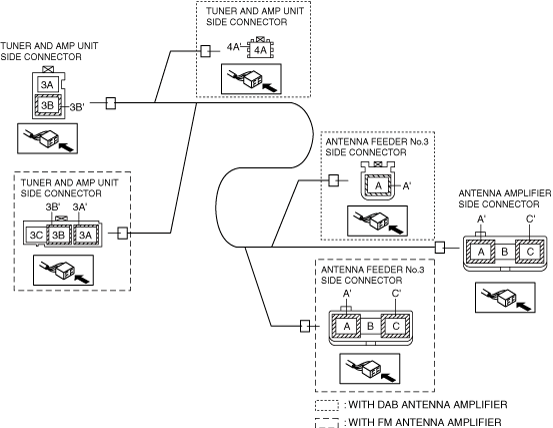

3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
-
With DAB antenna amplifier, with FM antenna amplifier
-
2. Remove the following parts:
-
3. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
