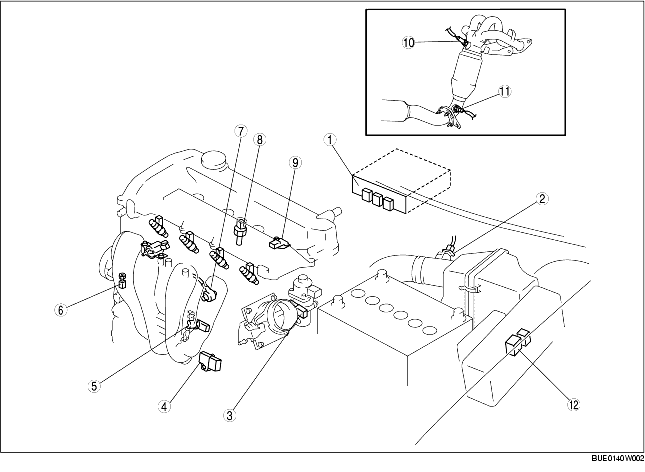

1
|
PCM
(See PCM INSPECTION [L3 R.H.D.].)
(See PCM CONFIGURATION [L3].)
|
|
2
|
Mass air flow/Intake air temperature (MAF/IAT) sensor
|
|
3
|
Throttle position (TP) sensor
|
|
4
|
Manifold absolute pressure (MAP) sensor
|
|
5
|
Engine coolant temperature (ECT) sensor
|
|
6
|
Crankshaft position (CKP) sensor
|
|
7
|
Camshaft position (CMP) sensor
|
|
8
|
Knock sensor (KS)
|
|
9
|
HO2S (with heater)
|
|
10
|
Power steering pressure (PSP) switch
|
|
11
|
Main relay
(See RELAY INSPECTION.)
|
|
1
|
PCM
(See PCM CONFIGURATION [L3].)
|
|
2
|
Mass air flow/Intake air temperature (MAF/IAT) sensor
|
|
3
|
Throttle position (TP) sensor
|
|
4
|
Manifold absolute pressure (MAP) sensor
|
|
5
|
Crankshaft position (CKP) sensor
|
|
6
|
Power steering pressure (PSP) switch
|
|
7
|
Knock sensor (KS)
|
|
8
|
Cylinder head temperature sensor
|
|
9
|
Camshaft position (CMP) sensor
|
|
10
|
Front HO2S (with heater)
|
|
11
|
Rear HO2S (with heater)
|
|
12
|
Main relay
(See RELAY INSPECTION.)
|
