SECURITY AND LOCKS LOCATION INDEX

id091400510000

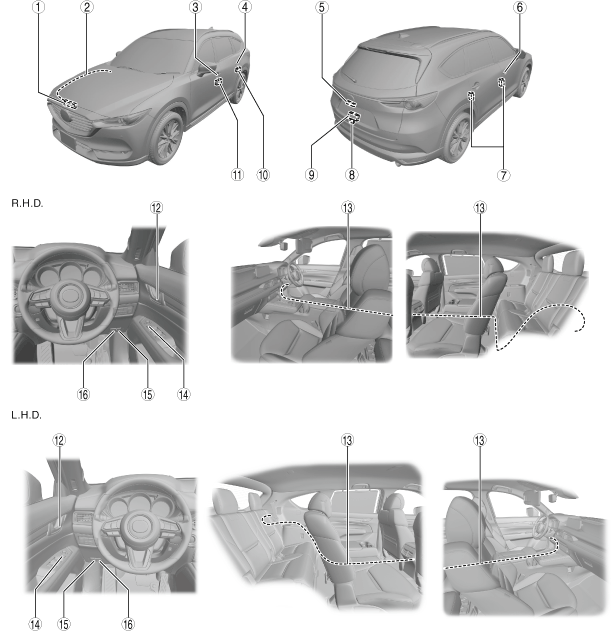

Locks And Openers

ac8wzw00000014

1
Bonnet latch
(See BONNET LATCH REMOVAL/INSTALLATION.)
(See BONNET LATCH SWITCH INSPECTION.)
2
Bonnet release cable
(See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
3
Front outer handle
(See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
(See OUTER HANDLE DISASSEMBLY/ASSEMBLY.)
4
Rear outer handle
(See REAR OUTER HANDLE REMOVAL/INSTALLATION.)
(See OUTER HANDLE DISASSEMBLY/ASSEMBLY.)
5
Liftgate opener switch
(See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
(See LIFTGATE OPENER SWITCH INSPECTION.)
6
Front door key cylinder
(See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)
7
Door lock striker
(See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)
8
Liftgate lock striker
(See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
9
Liftgate latch and lock actuator
(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LOCK ACTUATOR INSPECTION.)
(See LIFTGATE/POWER LIFTGATE (PLG) LATCH SWITCH INSPECTION.)
10
Rear door latch and lock actuator
(See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
11
Front door latch and lock actuator
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LATCH SWITCH INSPECTION.)
(See FRONT DOOR LOCK-LINK SWITCH INSPECTION.)
12
Inner handle
(See INNER HANDLE REMOVAL/INSTALLATION.)
13
Fuel-filler lid opener cable
(See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION.)
14
Door lock switch
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)
(See DOOR LOCK SWITCH INSPECTION.)
15
Fuel-filler lid opener lever
(See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
16
Bonnet release lever
(See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

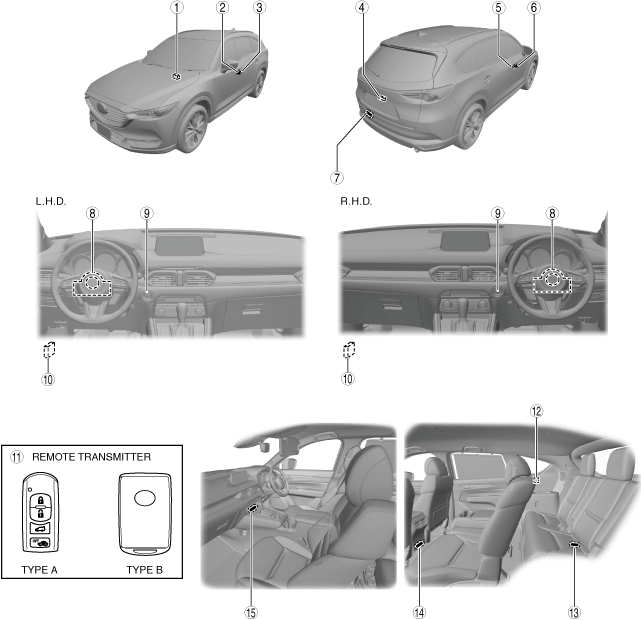

Advanced Keyless Entry System / Push Button Start System / Immobilizer System

ac8wzw00000015

1
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(See KEYLESS BEEPER INSPECTION.)
2
Keyless antenna (exterior, LF))
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
3
Request switch (LF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
4
Request switch (liftgate)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
5
Request switch (RF)
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
6
Keyless antenna (exterior, RF))
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
7
Keyless antenna (exterior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
8
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
9
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)
10
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION.)
11
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
12
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)
13
Keyless antenna (interior, rear)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
14
Keyless antenna (interior, center)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
15
Keyless antenna (interior, front)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)

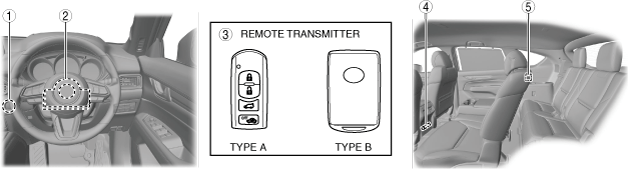

Keyless Entry System / Push Button Start System / Immobilizer System

ac8wzw00000016

1
Push button start
(See PUSH BUTTON START REMOVAL/INSTALLATION.)
(See PUSH BUTTON START INSPECTION.)
2
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
3
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
4
Keyless antenna (center)
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
(See KEYLESS ANTENNA INSPECTION.)
5
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)

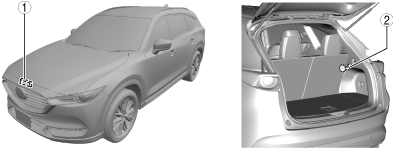

Theft-deterrent System

ac8wzw00003456

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT HORN INSPECTION.)
