INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

Interior

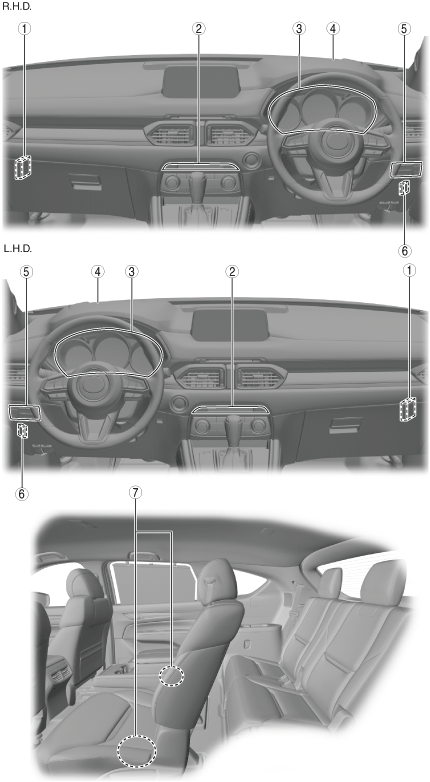

ac8wzw00003886

1	Parking assist unit (See PARKING ASSIST UNIT REMOVAL/INSTALLATION..) (See PARKING ASSIST UNIT INSPECTION.)
2	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.,)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
4	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
5	Parking sensor switch (See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR SWITCH INSPECTION.)
6	Front parking sensor buzzer (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See FRONT PARKING SENSOR BUZZER INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
7	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [2WD].) (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].)

Exterior

ac8jjw00000164

1	Horn (See HORN REMOVAL/INSTALLATION) (See HORN INSPECTION.)
2	Front ultrasonic sensor short cord (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
3	Rear ultrasonic sensor short cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
4	Rear parking sensor buzzer (See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See REAR PARKING SENSOR BUZZER INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
5	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR INSPECTION.)
6	Front ultrasonic sensor (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR INSPECTION.)
