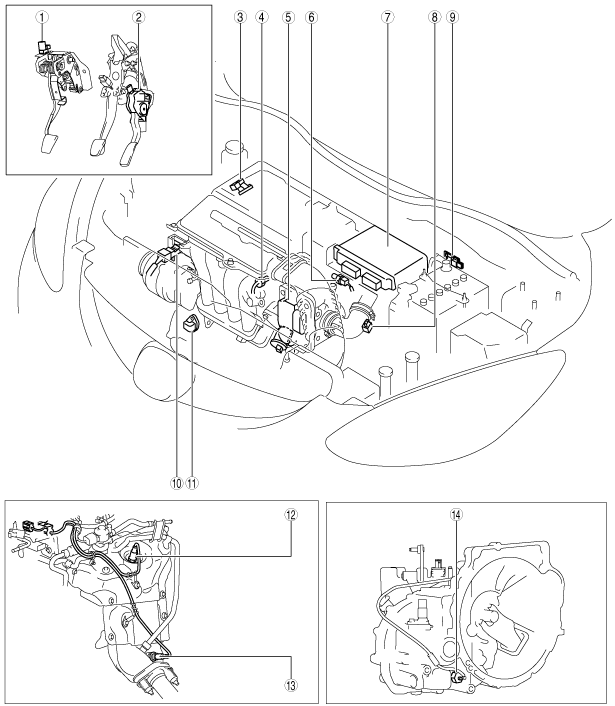

CONTROL SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id0140e6804100

am2zzw00006073

1	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 1.3, MZR 1.5].) (See CLUTCH PEDAL REMOVAL/INSTALLATION [F35M-R].)
2	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
3	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
4	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See KNOCK SENSOR (KS) INSPECTION [MZR 1.3, MZR 1.5].)
5	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
6	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
7	PCM (PCM temperature sensor) (See PCM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See PCM INSPECTION [MZR 1.3, MZR 1.5].) (See PCM CONFIGURATION [MZR 1.3, MZR 1.5].) (See PCM TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See PCM TEMPERATURE SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
8	MAF/IAT sensor (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZR 1.3, MZR 1.5].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
9	Current sensor (If equipped) (See CURRENT SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CURRENT SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
10	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
11	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
12	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
13	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZR 1.3, MZR 1.5].)
14	Neutral switch (MTX) (See NEUTRAL SWITCH INSPECTION [MZR 1.3, MZR 1.5].) (See NEUTRAL SWITCH REMOVAL/INSTALLATION [F35M-R].)
