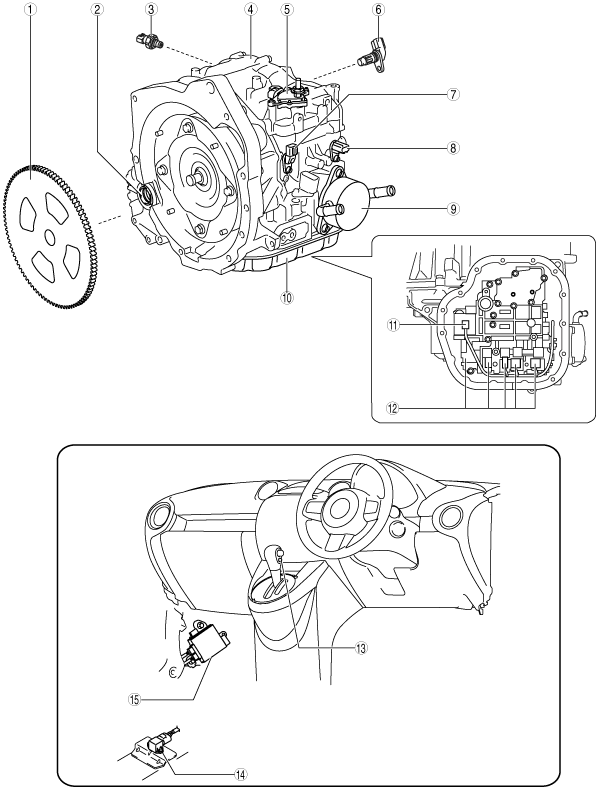

CVT (CONTINUOUSLY VARIABLE TRANSAXLE) LOCATION INDEX [DJVA-EL]

id051901285000

am2zzw00004301

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [DJVA-EL].)
2	Oil seal (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [DJVA-EL].)
3	Oil pressure sensor (See OIL PRESSURE SENSOR INSPECTION [DJVA-EL].) (See OIL PRESSURE SENSOR REMOVAL/INSTALLATION [DJVA-EL].)
4	CVT (See MECHANICAL SYSTEM TEST [DJVA-EL].) (See ROAD TEST [DJVA-EL].) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) FLUID INSPECTION [DJVA-EL].) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) FLUID REPLACEMENT [DJVA-EL].) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) FLUID LEVEL ADJUSTMENT [DJVA-EL].) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) REMOVAL/INSTALLATION [DJVA-EL].)
5	TR switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [DJVA-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [DJVA-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [DJVA-EL].)
6	Secondary pulley speed sensor (See SECONDARY PULLEY SPEED SENSOR INSPECTION [DJVA-EL].) (See SECONDARY PULLEY SPEED SENSOR REMOVAL/INSTALLATION [DJVA-EL].)
7	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [DJVA-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [DJVA-EL].)
8	Primary pulley speed sensor (See PRIMARY PULLEY SPEED SENSOR INSPECTION [DJVA-EL].) (See PRIMARY PULLEY SPEED SENSOR REMOVAL/INSTALLATION [DJVA-EL].)
9	Oil cooler (See OIL COOLER FLUSHING [DJVA-EL].) (See OIL COOLER REMOVAL/INSTALLATION [DJVA-EL].)
10	Oil pan (See OIL PAN REMOVAL/INSTALLATION [DJVA-EL].)
11	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [DJVA-EL].)
12	Solenoid valve (See SOLENOID VALVE INSPECTION [DJVA-EL].)
13	SS mode switch (See SS MODE SWITCH INSPECTION [DJVA-EL].)
14	Grade sensor (See GRADE SENSOR INSPECTION [DJVA-EL].) (See GRADE SENSOR REMOVAL/INSTALLATION [DJVA-EL].)
15	TCM (See TCM INSPECTION [DJVA-EL].) (See TCM LEARNING [DJVA-EL].) (See TCM REMOVAL/INSTALLATION [DJVA-EL].)
