ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION
id092000812900
L.H.D.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)
2. Remove the following parts:
- (1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (4) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (5) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (7) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (8) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (9) Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION)
- (10) Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (11) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (12) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (13) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (14) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (15) Center lower panel (Vehicles without audio unit) (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
- (16) Audio unit (Vehicles with audio unit) (See AUDIO UNIT REMOVAL/INSTALLATION.)
- (17) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (18) A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

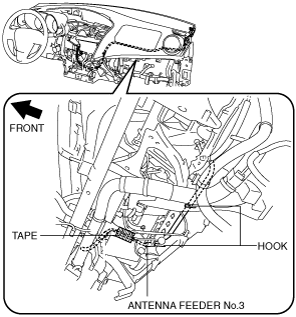

3. Partially peel back the hook.
4. Remove the clip A.
5. Peel off the tape.
6. Partially peel back the hook.
7. Remove the clips B.
8. Remove the antenna feeder No.3.
9. Install in the reverse order of removal.
R.H.D.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)
2. Remove the following parts:
- (1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (5) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (6) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (7) Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (8) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (9) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (10) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (11) Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION)
- (12) Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (13) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (14) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (15) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (16) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
- (17) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (18) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (19) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
- (20) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
- (21) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (22) Center lower panel (Vehicles without audio unit) (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
- (23) Audio unit (Vehicles with audio unit) (See AUDIO UNIT REMOVAL/INSTALLATION.)
- (24) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (25) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (26) Center cover (See CENTER COVER REMOVAL/INSTALLATION.)
- (27) Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)
- (28) Hole cover (See HOLE COVER REMOVAL/INSTALLATION.)
- (29) Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.)
- (30) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (31) Ventilator grilles (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
- (32) Shower duct (passenger-side) (See A/C UNIT REMOVAL/INSTALLATION.)
- (33) Parking sensor control module (Vehicles with parking sensor) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.)
- (34) Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (35) Dashboard panel (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
3. Remove the clips A and B.
4. Remove the antenna feeder No.3.
5. Install in the reverse order of removal.
