ANTENNA FEEDER NO.1 INSPECTION

id092000812400

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(6)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)

(7)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(8)  Center panel (without audio system) (See CENTER PANEL REMOVAL/INSTALLATION.)

(9)  Audio unit (with audio system) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(10)  Car-navigation unit (with car-navigation system) (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(11)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.2.

am6zzw00001983

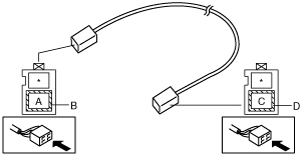

4.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

With audio system

am6zzw00006807

With car-navigation system

am6zzw00001679

•  If not as indicated in the table, replace antenna feeder No.1.

am6zzw00006808

5HB/WGN

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(6)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(7)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)

(9)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(10)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(11)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

(12)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(13)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(14)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(15)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(16)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(17)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(18)  Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(19)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(20)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(21)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)

(22)  Center panel (without audio system) (See CENTER PANEL REMOVAL/INSTALLATION.)

(23)  Audio unit (with audio system) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(24)  Car-navigation unit (with car-navigation system) (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(25)  Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(26)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(27)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(28)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(29)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(30)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

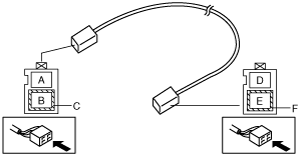

3.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

With audio system

am6zzw00006809

With car-navigation system

am6zzw00001677

•  If not as indicated in the table, replace antenna feeder No.1.

With audio system

am6zzw00006810

With car-navigation system

am6zzw00006811
