ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

id092000812300

4SD

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(11)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(17)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(18)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(21)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(22)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(23)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(24)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(25)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(26)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(27)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

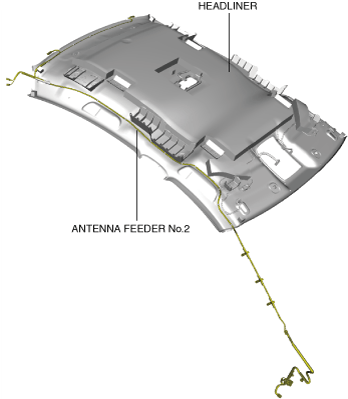

3.  Peel off the tape and remove antenna feeder No.2.

am6zzw00016702

Installation

1.  Affix tape shown in the figure and install antenna feeder No.2.

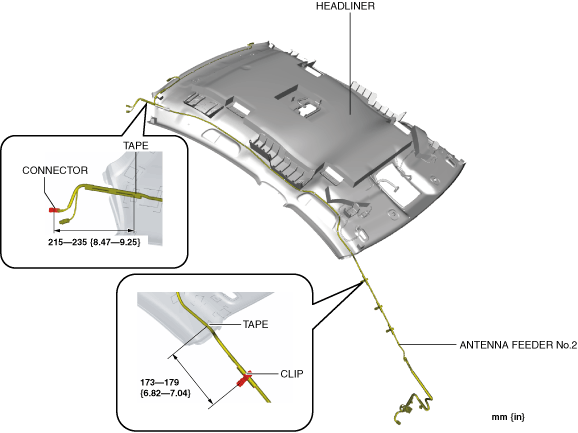

Without sunroof

am6zzw00016703

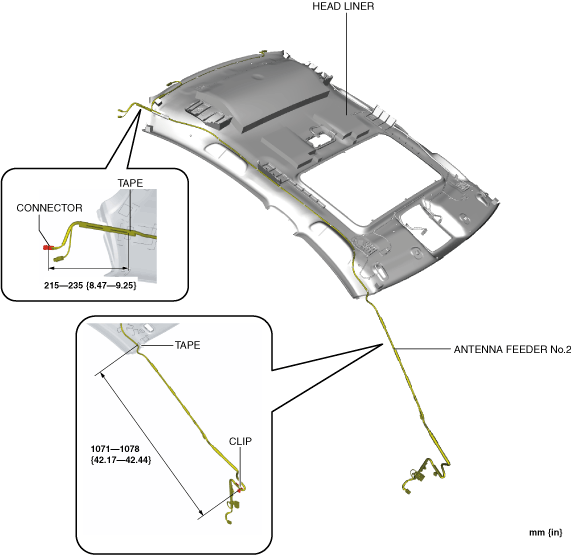

With sunroof

am6zzw00016704

2.  Install the following parts:

(1)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(2)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(5)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(7)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(11)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(12)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(13)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(16)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(17)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(18)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(19)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(20)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(21)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(22)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(23)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(24)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(25)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(26)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(27)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(28)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

WGN

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

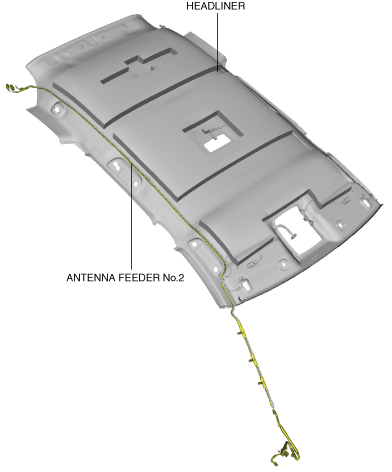

3.  Peel off the tape and remove antenna feeder No.2.

am6zzw00016705

Installation

1.  Affix tape shown in the figure and install antenna feeder No.2.

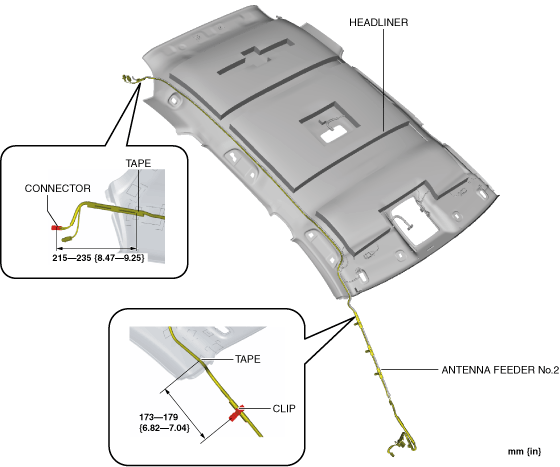

Without sunroof

am6zzw00016706

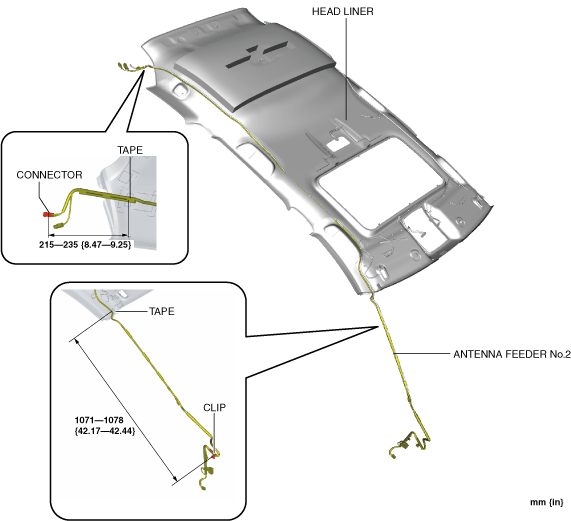

With sunroof

am6zzw00016707

2.  Install the following parts:

(1)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(2)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(7)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(8)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(9)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(13)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(14)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(15)  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(16)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(17)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(18)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(19)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(20)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(21)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
