ROOF CARRIER BRACKET REMOVAL/INSTALLATION

id091600801700

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(11)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(17)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(18)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(21)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(22)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(23)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(24)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(25)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(26)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(27)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(28)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(29)  Curtain air bag module (with curtain air bag module) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

3.  Remove the nuts.

am6zzw00015886

4.  Remove the roof carrier brackets.

5.  Install in the reverse order of removal.

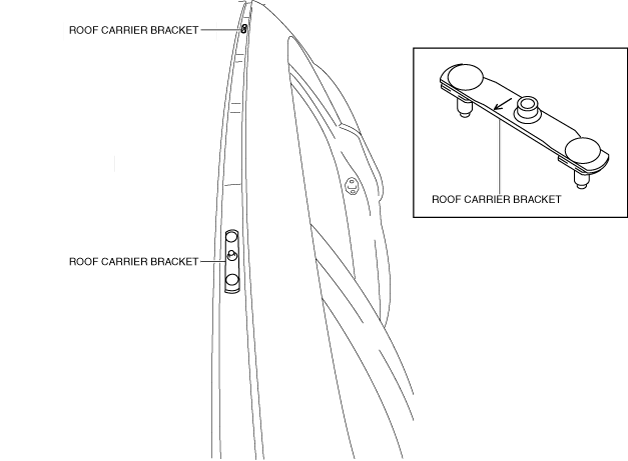

Note

•  Install the roof carrier bracket so that the arrow on it faces inward.

am6zzw00015887

WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(10)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(13)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(14)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(15)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(16)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(17)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(18)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(19)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(20)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(21)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(22)  Curtain air bag module (with curtain air bag module) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

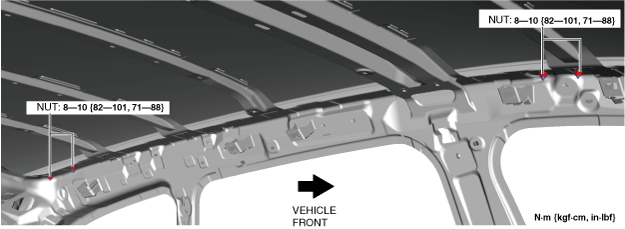

3.  Remove the nuts.

am6zzw00015888

4.  Remove the roof carrier brackets.

5.  Install in the reverse order of removal.

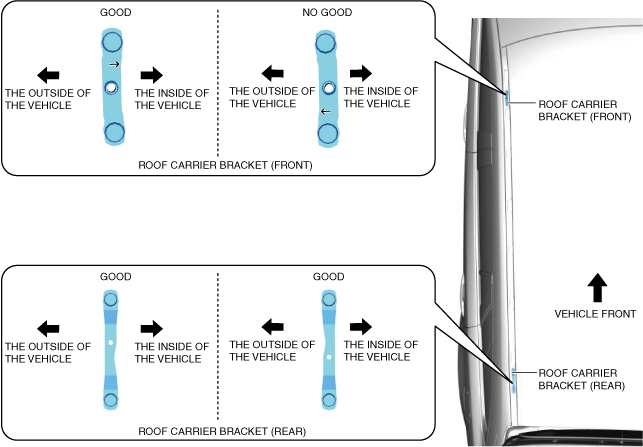

Note

•  Install the roof carrier bracket (front) so that the arrow on it faces inward.

•  The roof carrier bracket (rear) can be installed in either direction shown in the figure.

am6zzw00015889
