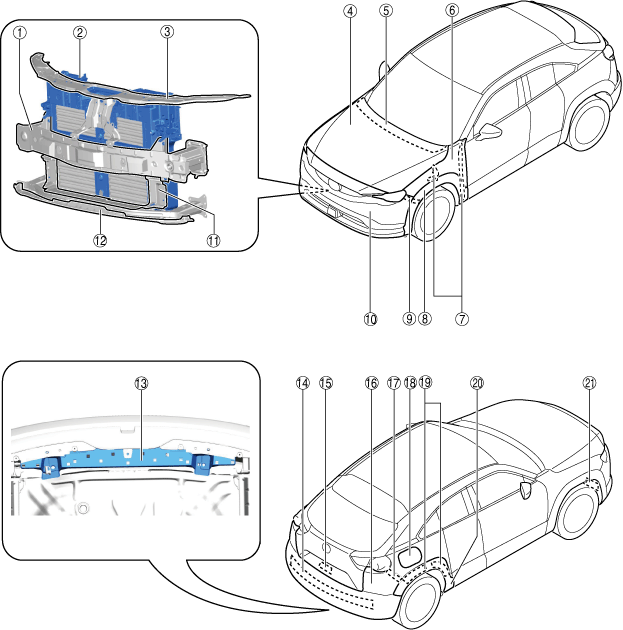

BODY PANELS LOCATION INDEX [(E)]

id0910000401x2

a30zzw00000421

1	Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION [(E)].)
2	Shroud panel (See SHROUD PANEL REMOVAL/INSTALLATION.)
3	Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION.)
4	Hood (See HOOD REMOVAL/INSTALLATION.) (See HOOD DISASSEMBLY/ASSEMBLY.) (See HOOD ADJUSTMENT.)
5	Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)
6	Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
7	Front fender insulator (See FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION.) (See FRONT FENDER INSULATOR No.2 REMOVAL/INSTALLATION.)
8	Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
9	Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)
10	Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].) (See FRONT BUMPER DISASSEMBLY/ASSEMBLY [(E)].)
11	Intake air guide (See INTAKE AIR GUIDE REMOVAL/INSTALLATION.)
12	Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION.)
13	Rear bumper stay (See REAR BUMPER STAY REMOVAL/INSTALLATION.)
14	Rear bumper reinforcement (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION [(E)].)
15	Rear bumper bracket (See REAR BUMPER BRACKET REMOVAL/INSTALLATION.)
16	Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.) (See REAR BUMPER DISASSEMBLY/ASSEMBLY [(E)].)
17	Rear bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)
18	Charge lid (See CHARGE LID REMOVAL/INSTALLATION.)
19	Rear over fender bracket (See REAR OVER FENDER BRACKET REMOVAL/INSTALLATION.)
20	Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)
21	Front fender stay (See FRONT FENDER STAY REMOVAL/INSTALLATION.)
