DASHBOARD REMOVAL/INSTALLATION

id091700800300

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION.)

(7)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(8)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(10)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(12)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(13)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(14)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(15)  Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(16)  Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(17)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(18)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(19)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(20)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(21)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(22)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(23)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(24)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(25)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(26)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(27)  CD player (with CD player) (See CD PLAYER REMOVAL.)

(28)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.)

(29)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(30)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(31)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(32)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(33)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(34)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(35)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(36)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)

(37)  Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(38)  Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(39)  Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(40)  Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

3.  Remove the electric parking brake control module bracket. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

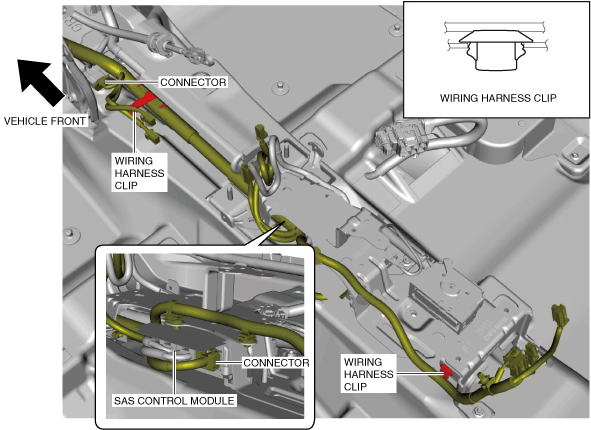

4.  Remove the wiring harness clips.

am6xuw00011753

5.  Disconnect the connectors.

6.  Remove the wiring harness clip A, B, and C.

With Center Display

am6zzw00017945

Without Center Display

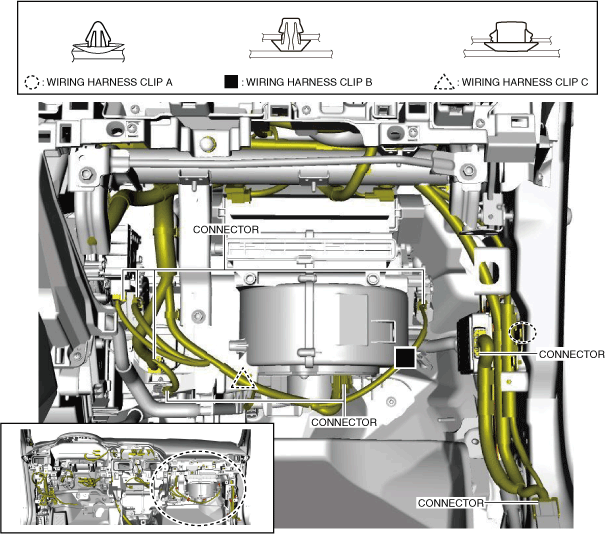

am6zzw00016762

7.  Disconnect the connectors.

8.  Disconnect the connectors.

am6xuw00011755

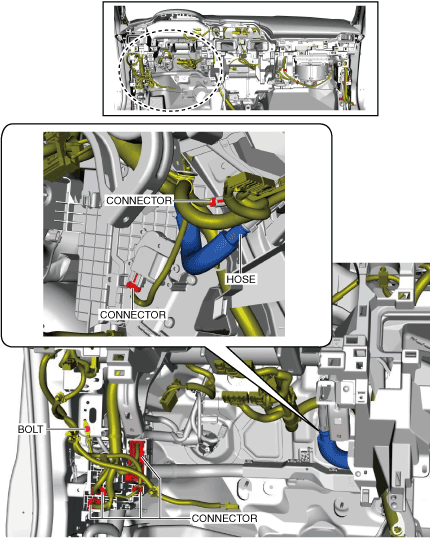

9.  Remove the bolt.

10.  Remove the hose.

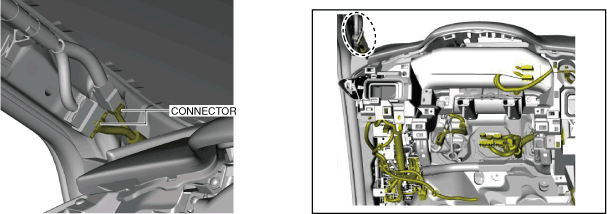

11.  Disconnect the connectors.

am6xuw00011756

12.  Remove the bolts.

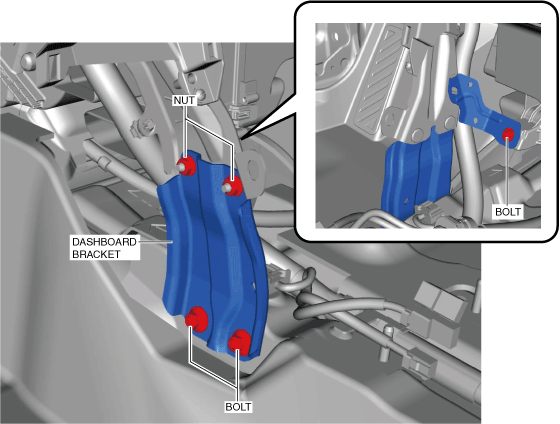

am6xuw00011757

13.  Remove the nuts.

14.  Remove the dashboard bracket.

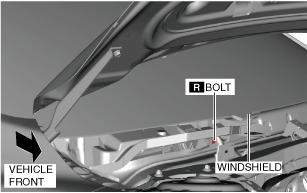

15.  Remove the bolt.

am6xuw00011758

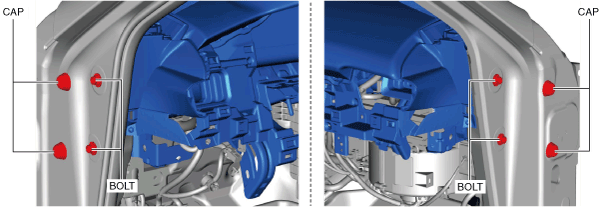

16.  Remove the caps and the bolts.

am6xuw00011759

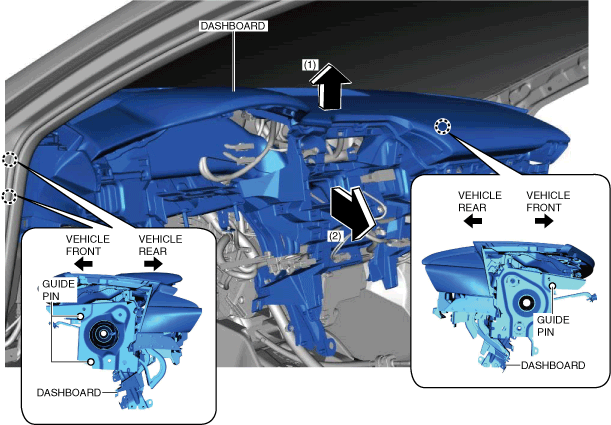

17.  Move the dashboard in the direction of the arrow in the order of (1), (2) shown in the figure, then remove the guide pin.

am6xuw00011760

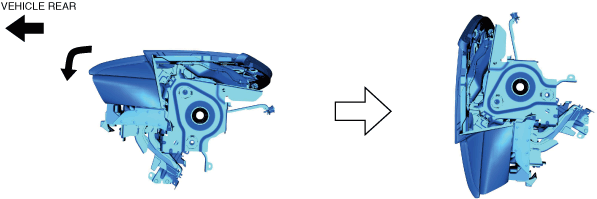

18.  While rotating the dashboard in the direction shown in the figure, pull it out toward the vehicle rear side.

am6xuw00011761

19.  Take the dashboard off from the front driver-side door or front passenger-side door opening.

Installation

1.  Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.

Caution

•  After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.

•  If the plate nuts are tightened completely when installing bolts, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.

Note

•  If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

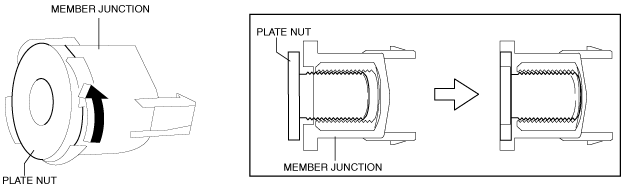

ac5uuw00003609

2.  Verify that the member junction tabs are engaged to the dashboard.

Caution

•  If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged.Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

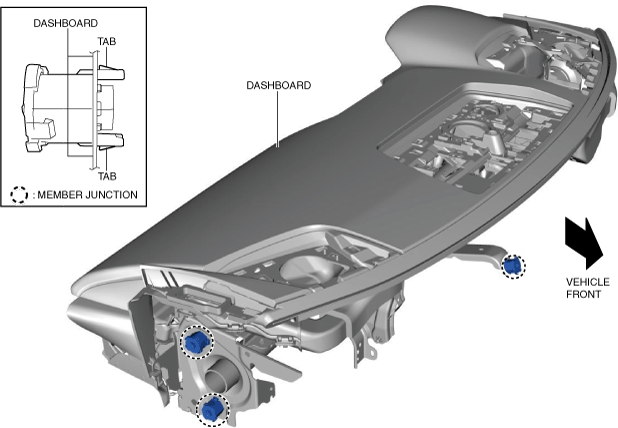

am6xuw00011762

3.  Insert the dashboard from the front driver-side door or front passenger-side door opening.

4.  Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and set it.

Note

•  Visually verify the installation condition of the guide pins on the vehicle body sides and the dashboard from the position shown in the figure.

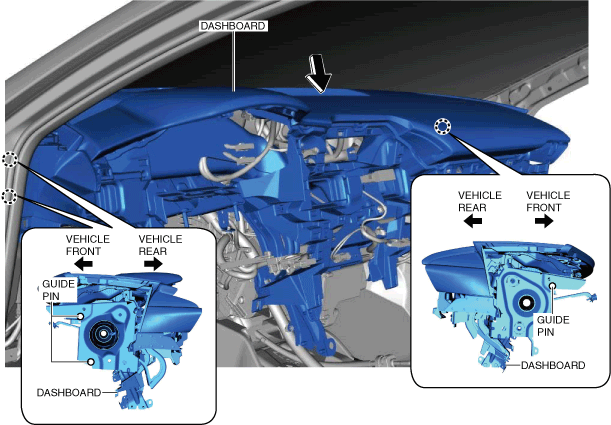

am6xuw00011763

5.  Insert the bolts on the passenger-side.

Note

•  Tighten the bolts to the specified torque after positioning the member junction.

am6xuw00011764

6.  Tighten the bolts on the driver-side temporarily.

am6xuw00011765

7.  Tighten the bolts on the passenger-side temporarily.

Note

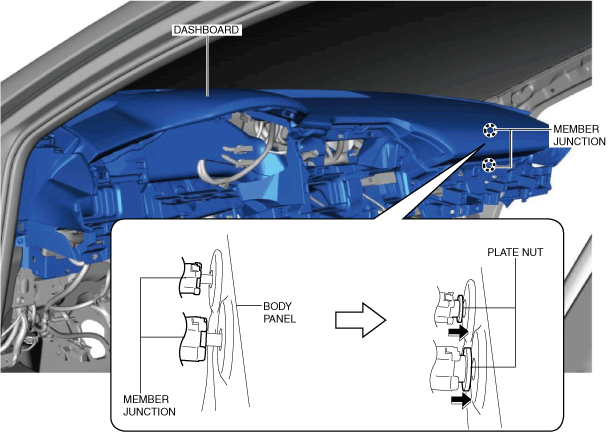

•  After bolts are seated, rotate the plate nuts of the member junctions and visually inspect them from the lower side of the dashboard on the passenger-side to verify that they emerge in the direction of the body panels.

am6zzw00017946

8.  Verify that the bolt holes on the vehicle side and the bolt insertion position of the member junctions are aligned.

Note

•  If the bolt hole on the vehicle side and the bolt insertion position of the member junctions are not aligned, remove the bolt on the driver’s and passenger-sides and repeat from Step 5.

am6xuw00011767

9.  Tighten the new bolts temporarily.

Caution

•  If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.

am6xuw00011758

10.  Tighten the bolts on the driver-side to the specified torque and install the caps.

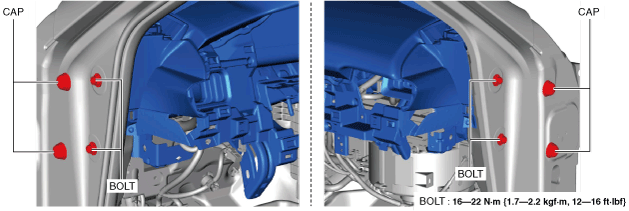

am6xuw00011899

11.  Tighten the bolts on the passenger-side to the specified torque and install the caps.

12.  Tighten the bolts to the specified torque.

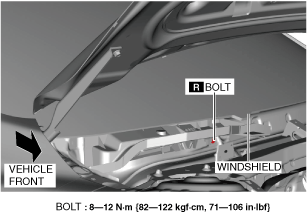

am6xuw00011769

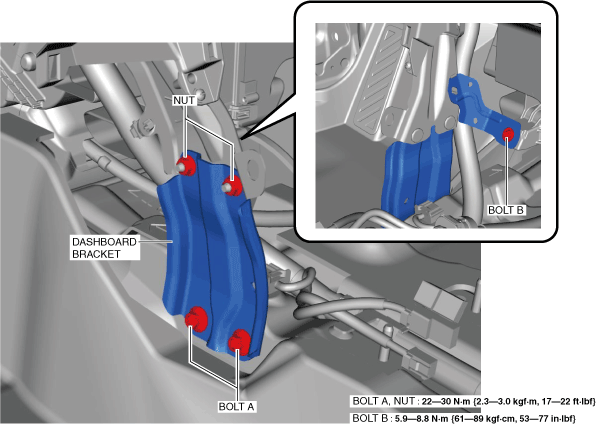

13.  Install the dashboard bracket.

am6xuw00011900

14.  Install the nuts.

15.  Install the bolts A and B.

16.  Connect the connectors.

am6xuw00011756

17.  Install the hose.

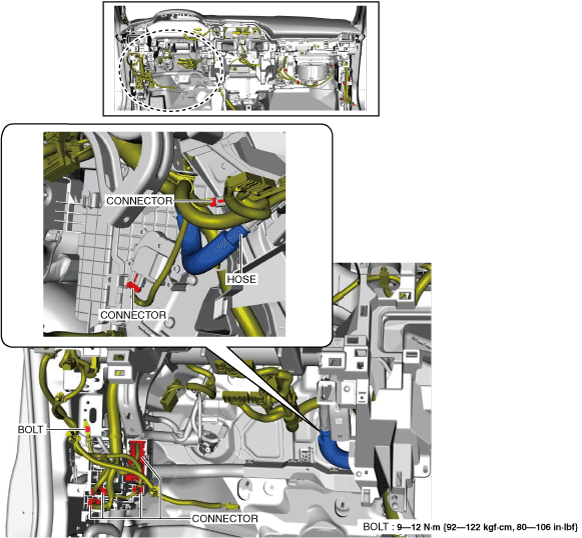

am6xuw00011771

18.  Install the bolt.

19.  Connect the connectors.

20.  Connect the connectors.

With Center Display

am6zzw00017945

Without Center Display

am6zzw00016762

21.  Install the wiring harness clip A, B, and C.

22.  Install the wiring harness clips.

am6xuw00011753

23.  Connect the connector.

24.  Install the electric parking brake control module bracket. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

25.  Install the following parts:

(1)  Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

(2)  Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION.)

(3)  Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(4)  Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(5)  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)

(6)  Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(7)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(8)  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

(9)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(10)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(11)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(12)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(13)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER INSTALLATION.)

(14)  CD player (with CD player) (See CD PLAYER INSTALLATION.)

(15)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(16)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(17)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(18)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(19)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(20)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(21)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(22)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(23)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(24)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(25)  Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(26)  Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION.)

(27)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(28)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(29)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(30)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(31)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(32)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(33)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(34)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(35)  Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION.)

(36)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(37)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(38)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(39)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(40)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

26.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
