AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]

id051721802000

am6zzw00002662

am6zzw00002663

1	Oil cooler (See OIL COOLER FLUSHING [FS5A-EL].) (See OIL COOLER REMOVAL/INSTALLATION [FS5A-EL].) (See OIL COOLER DISASSEMBLY/ASSEMBLY [FS5A-EL].)
2	Automatic transaxle (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FS5A-EL].)
3	Secondary control valve body (See SECONDARY CONTROL VALVE BODY REMOVAL [FS5A-EL].) (See SECONDARY CONTROL VALVE BODY INSTALLATION [FS5A-EL].)
4	Solenoid valve (Secondary) (See SOLENOID VALVE INSPECTION (SECONDARY CONTROL VALVE BODY) [FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION (SECONDARY CONTROL VALVE BODY) [FS5A-EL].)
5	Transaxle fluid temperature (TFT) sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [FS5A-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
6	Primary control valve body (See PRIMARY CONTROL VALVE BODY REMOVAL [FS5A-EL].) (See PRIMARY CONTROL VALVE BODY INSTALLATION [FS5A-EL])
7	Solenoid valve (Primary) (See SOLENOID VALVE INSPECTION (PRIMARY CONTROL VALVE BODY) [FS5A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION (PRIMARY CONTROL VALVE BODY) [FS5A-EL].)
8	Oil seal (See OIL SEAL REPLACEMENT [FS5A-EL].)
9	Vehicle speed sensor (See VEHICLE SPEED SENSOR (VSS) INSPECTION [FS5A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [FS5A-EL].)
10	Intermediate sensor (See INTERMEDIATE SENSOR INSPECTION [FS5A-EL].) (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
11	Transaxle range (TR) switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH INSTALLATION [FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL [FS5A-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FS5A-EL].)
12	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
13	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION [FS5A-EL].) (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [FS5A-EL].)
14	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FS5A-EL].)

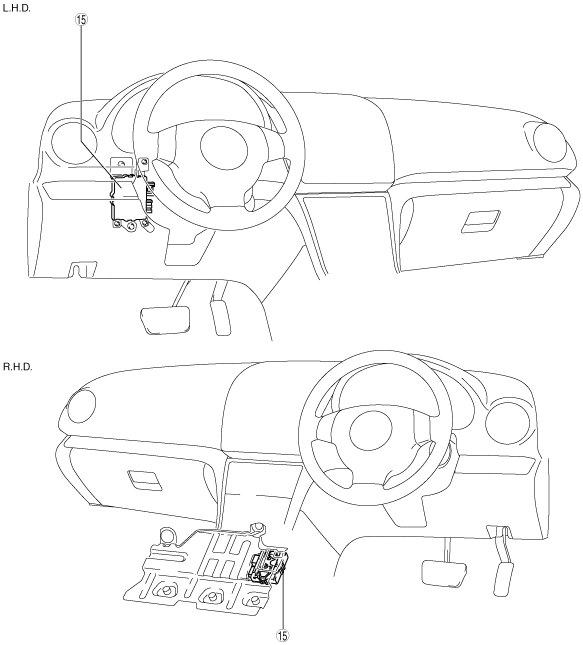

15	TCM (See TCM INSPECTION [FS5A-EL].) (See TCM REMOVAL/INSTALLATION [FS5A-EL].)
