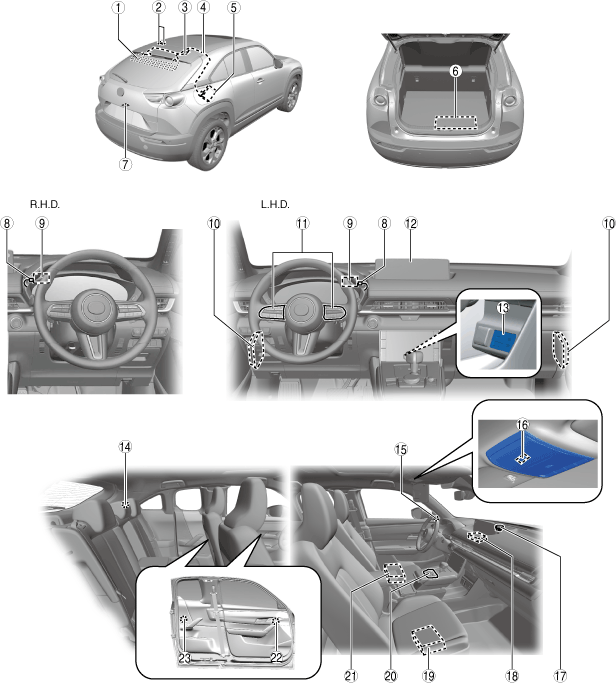

ENTERTAINMENT LOCATION INDEX [(E)]

id0920007000x2

a30zzw00006006

1	Glass antenna (See GLASS ANTENNA INSPECTION.)
2	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
3	Antenna feeder No.2 Antenna amplifier DAB antenna amplifier (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See ANTENNA AMPLIFIER INSPECTION.) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION [(E)].) (See DAB ANTENNA AMPLIFIER INSPECTION [(E)].)
4	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION [(E)].)
5	Remote tuner (RT) (See REMOTE TUNER (RT) REMOVAL/INSTALLATION [(E)].) (See REMOTE TUNER (RT) INSPECTION.)
6	Bass Box (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
7	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
8	Global positioning system (GPS) antenna feeder (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION [(E)].)
9	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION [(E)].)
10	Cowl side woofer (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].) (See SPEAKER INSPECTION.)
11	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
12	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)
13	USB port/SD card slot hub (See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See USB PORT/SD CARD SLOT HUB INSPECTION.)
14	Rear speaker (With Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
15	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
16	Microphone (See MICROPHONE REMOVAL/INSTALLATION [(E)].) (See MICROPHONE INSPECTION [(E)].)
17	Front center speaker (With Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
18	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION [(E)].) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See CONNECTIVITY MASTER UNIT (CMU) INSPECTION.) (See Bluetooth® PAIRING PROCEDURE.) (See VEHICLE STATUS MONITOR SETTING.)
19	Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION [(E)].) (See AUDIO AMPLIFIER INSPECTION.)
20	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.) (See COMMANDER SWITCH INSPECTION.)
21	Parking assist unit (optical) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].) (See PARKING ASSIST UNIT (OPTICAL) INSPECTION.)
22	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
23	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See SPEAKER INSPECTION.)
