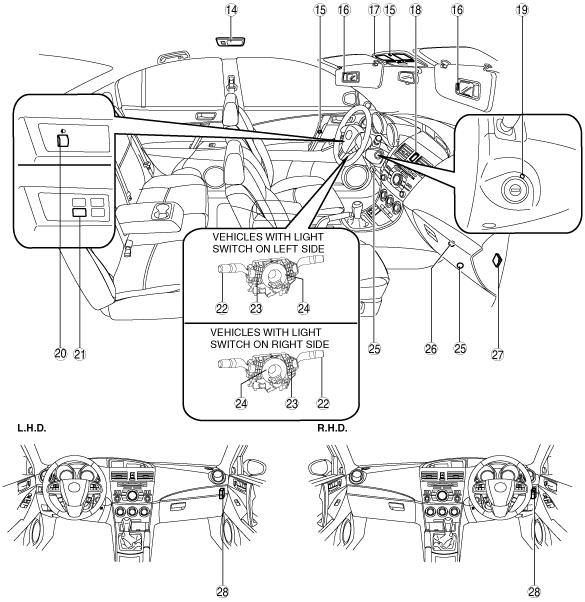

LIGHTING SYSTEMS LOCATION INDEX
id091800800100
am3zzw00007715
|
am3zzw00007716
|
1
|
Auto light sensor
|
2
|
Side turn light
(See SIDE TURN LIGHT INSPECTION.)
|
3
|
Back-up light switch
|
4
|
Auto leveling sensor (Vehicles with auto leveling system)
|
5
|
Front combination light
(See HEADLIGHT AIMING.)
|
6
|
Front fog light
(See FRONT FOG LIGHT AIMING.)
|
7
|
Discharge headlight control module
|
8
|
Trunk compartment light
|
9
|
Rear combination light
|
10
|
Inboard light
|
11
|
License plate light
|
12
|
High-mount brake light
|
13
|
Cargo Compartment Light
|
14
|
Interior Light
|
15
|
Indirect illumination
|
16
|
Vanity mirror illumination
|
17
|
Map light
(See MAP LIGHT INSPECTION.)
|
18
|
Hazard warning switch
|
19
|
Ignition key illumination
|
20
|
Headlight leveling switch (with headlight leveling system)
|
21
|
AFS (Adaptive Front Lighting System) OFF switch (with AFS (Adaptive Front Lighting System))
|
22
|
Light switch
(See LIGHT SWITCH INSPECTION.)
|
23
|
Combination switch
|
24
|
Steering angle sensor
|
25
|
Foot light
|
26
|
Glove compartment light
|
27
|
AFS (Adaptive Front Lighting System) control module (with AFS (Adaptive Front Lighting System))
|
Auto leveling control module (without AFS (Adaptive Front Lighting System))
|
|
28
|
Auto light/wiper control module (with auto light/wiper system)
|
