LIGHTING SYSTEMS LOCATION INDEX

id091800800100

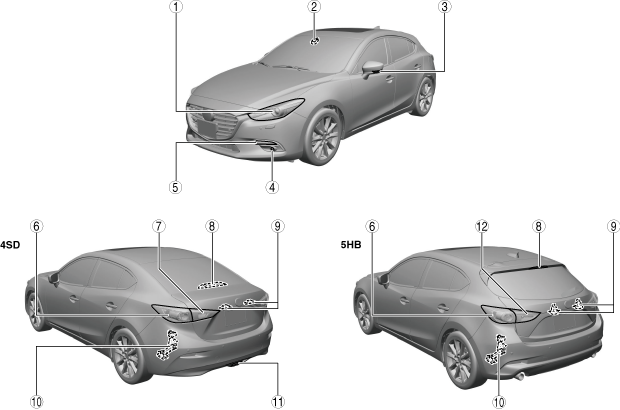

Exterior

aaxjjw00020304

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING ACTUATOR INSPECTION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
4	Front fog light (with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT INSPECTION [LED TYPE].) (See FRONT FOG LIGHT AIMING.)
5	Front turn light (See FRONT TURN LIGHT REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT SHORT CORD INSPECTION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT/TAILLIGHT BULB REMOVAL/INSTALLATION.) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
7	Trunk lid light (4SD) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TRUNK LID LIGHT REMOVAL/INSTALLATION.)
8	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
9	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
10	Auto leveling sensor (with headlight auto leveling system) (See AUTO LEVELING SENSOR INSPECTION.) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
11	Rear fog light (4SD) (with rear fog light) (See REAR FOG LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.) (See REAR FOG LIGHT SHORT CORD REMOVAL/INSTALLATION.)
12	Liftgate light (5HB) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION.)

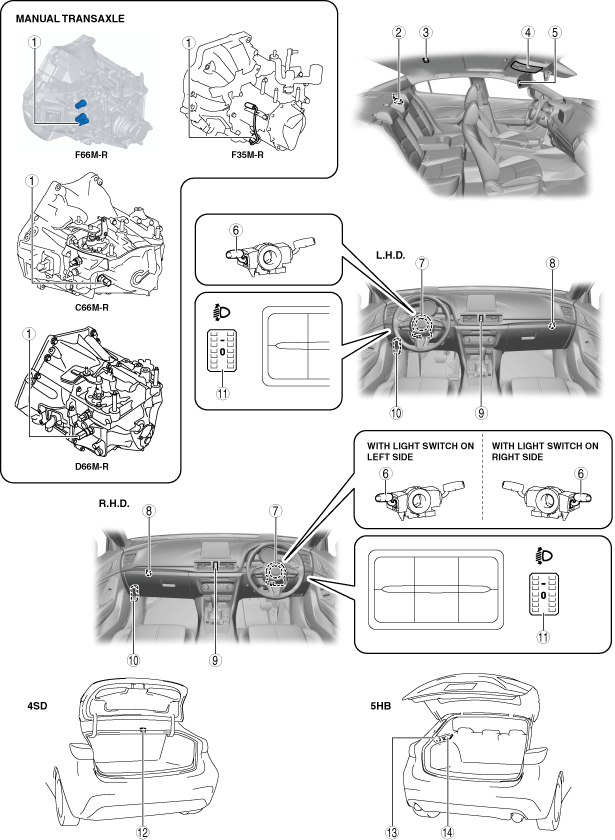

Interior

aaxjjw00020305

1	Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH INSPECTION.)
2	Brake light unit (4SD) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
3	Rear map light (with rear map light) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.) (See REAR MAP LIGHT REMOVAL/INSTALLATION.)
4	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT INSPECTION.)
5	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
6	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
7	Steering angle sensor (with adaptive front lighting system (AFS), adaptive LED headlights, or smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
8	Glove compartment light (with glove compartment light) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
9	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
10	Auto leveling control module (with headlight auto leveling system) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
11	Headlight leveling switch (with headlight manual leveling system) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
12	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
13	Brake light unit (5HB) (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION.) (See BRAKE LIGHT UNIT INSPECTION.)
14	Cargo compartment light (5HB) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
