INSTRUMENTATION/DRIVER INFO. LOCATION INDEX [(E)]

id0922007008x2

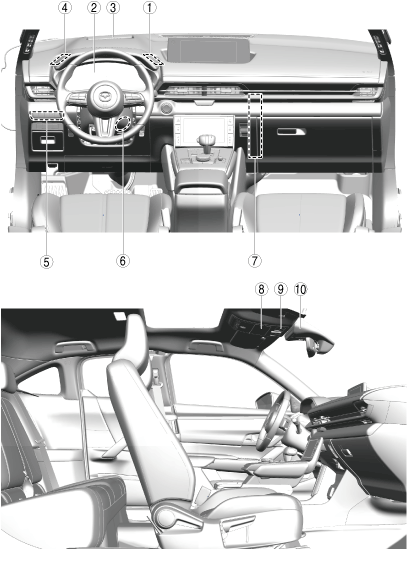

Interior

a30zzw00003927

1	TEL antenna No.1 (With emergency call system) (See TEL ANTENNA REMOVAL/INSTALLATION [(E)].) (See TEL ANTENNA INSPECTION [(E)].)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
3	Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
4	TEL antenna No.2 (With emergency call system) (See TEL ANTENNA REMOVAL/INSTALLATION [(E)].) (See TEL ANTENNA INSPECTION [(E)].)
5	Parking sensor OFF switch (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR OFF SWITCH INSPECTION.)
6	Front notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
7	Emergency call unit (With emergency call system) (See EMERGENCY CALL UNIT REMOVAL/INSTALLATION [(E)].) (See EMERGENCY CALL UNIT INSPECTION [(E)].) (See ACTIVATING REMOTE CONTROL BY SMART PHONE.) (See EMERGENCY CALL UNIT INITIAL SETTING [(E)].) (See EMERGENCY CALL UNIT BATTERY REMOVAL/INSTALLATION [(E)].) (See EMERGENCY CALL UNIT BATTERY RESET PROCEDURE [(E)].)
8	Emergency call speaker/microphone (With emergency call system) (See EMERGENCY CALL SPEAKER/MICROPHONE REMOVAL/INSTALLATION [(E)].) (See EMERGENCY CALL SPEAKER/MICROPHONE INSPECTION [(E)].)
9	Emergency call switch (With emergency call system) (See EMERGENCY CALL SWITCH REMOVAL/INSTALLATION [(E)].) (See EMERGENCY CALL SWITCH INSPECTION [(E)].)
10	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)

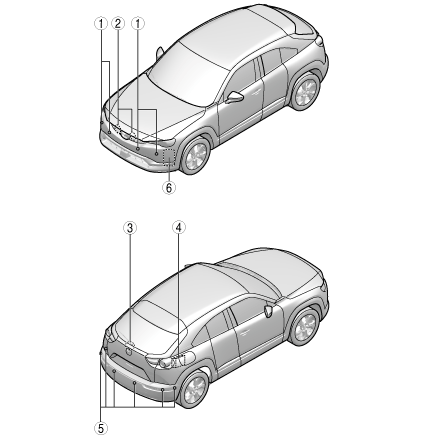

Exterior

a30zzw00003928

1	Front ultrasonic sensor (With front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR INSPECTION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
2	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
3	Rear Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
4	Parking assist unit (Ultrasonic) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION.)
5	Rear ultrasonic sensor (With parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION [(E)].) (See REAR ULTRASONIC SENSOR INSPECTION.) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION [(E)].)
6	Approaching vehicle audible system (AVAS) device (See APPROACHING VEHICLE AUDIBLE SYSTEM (AVAS) DEVICE REMOVAL/INSTALLATION.) (See APPROACHING VEHICLE AUDIBLE SYSTEM (AVAS) DEVICE INSPECTION.)
