SECURITY AND LOCKS LOCATION INDEX

id091400510000

Locks and Openers

am3zzw00005279

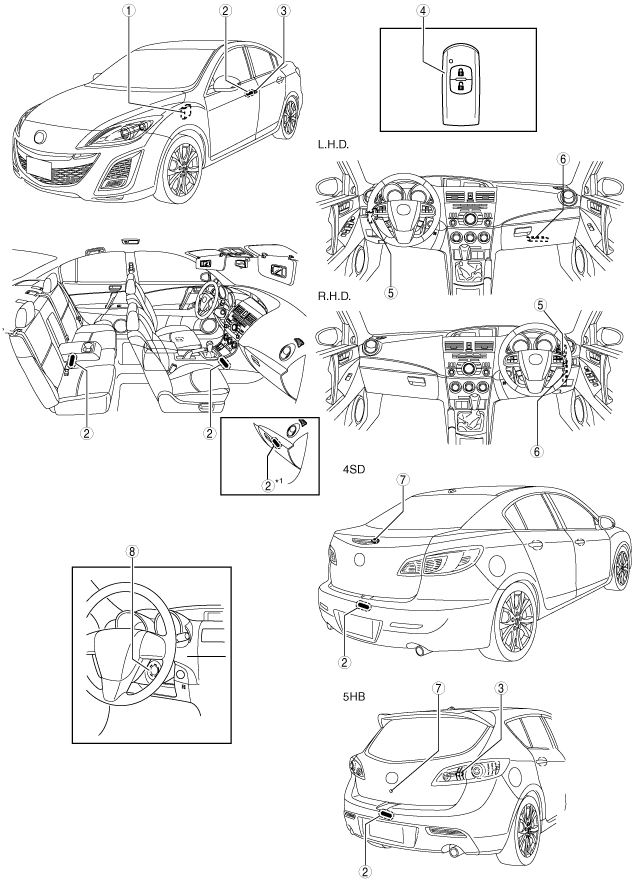

Advanced Keyless Entry And Push Button Start System/Immobilizer System

am3uuw00002755

*1 :Keyless antenna (interior front) Applied VIN (assumed):

• JMZ BLA2A60# 100001—132284

• JMZ BLA2G60# 100001—132284

• JMZ BL12Z20# 100001—132284

• JMZ BL12Y20# 100001—132284

• JMZ BL14Z20# 100001—132284

• JMZ BLA4360# 100001—132284

• JMZ BLA4F70# 100001—132284

• JMZ BLA4G60# 100001—132284

• JMZ BLA4C60# 100001—132284

• JMZ BLA4A60# 100001—132284

• JMZ BL14Y20# 100001—132284

• JM7 BL04F**# 100001—133678

• JMZ BLA2C60# 100001—132284

• JMZ BLA2F70# 100001—132284

• JMZ BL12Z50# 100001—132284

• JMZ BL12F70# 100001—132284

• JMZ BL12F60# 100001—132284

• JMZ BL14Z50# 100001—132284

• JMZ BL14F70# 100001—132284

• JMZ BL14F60# 100001—132284

• JM7 BL12Z**# 100001—133678

• JM7 BL22Z**# 100001—133678

• JM7 BL14Z**# 100001—133678

• JM7 BL24Z**# 100001—133678

• JM6 BL1051*0 100001—133678

• JM6 BL10Z1*0 100001—133678

• JM6 BL10F1*0 100001—133678

• JM6 BL1031*0 100001—133678

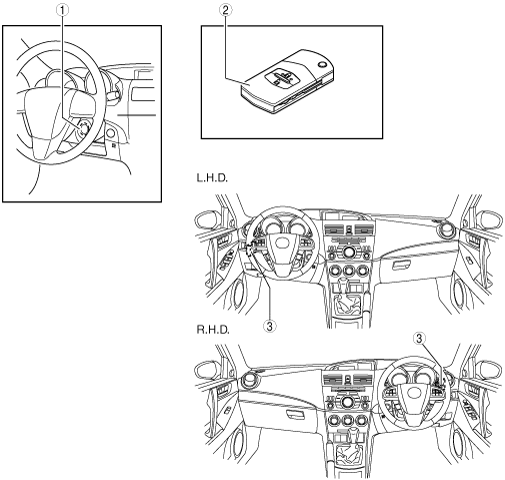

Keyless Entry System/Immobilizer System

am3zzw00005999

1

Coil antenna

(See COIL ANTENNA REMOVAL/INSTALLATION.)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM].)

2

Transmitter

(See TRANSMITTER DISASSEMBLY/ASSEMBLY.)

(See TRANSMITTER ID CODE REGISTRATION.)

3

Keyless receiver

(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)

(See KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM].)

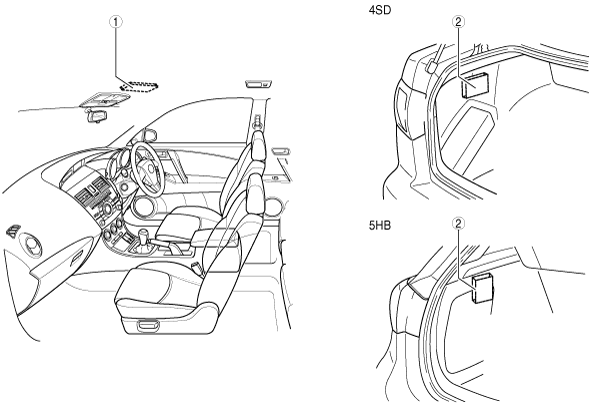

Theft-deterrent System

am3zzw00005160

1

Intruder sensor

(See INTRUDER SENSOR REMOVAL/INSTALLATION.)

(See INTRUDER SENSOR INSPECTION.)

2

Theft-deterrent siren

Tilt sensor

(See THEFT-DETERRENT SIREN AND TILT SENSOR REMOVAL/INSTALLATION.)

(See THEFT-DETERRENT SIREN AND TILT SENSOR INSPECTION.)

1	Bonnet latch (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.) (See BONNET LATCH SWITCH INSPECTION.)
2	Bonnet release cable (See BONNET RELEASE CABLE REMOVAL/INSTALLATION.)
3	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
4	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.) (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)
5	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
6	Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
7	Trunk lid opener cable (4SD) (See TRUNK LID OPENER CABLE REMOVAL/INSTALLATION.)
8	Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.) Trunk lid opener lever (4SD) (See TRUNK LID OPENER LEVER REMOVAL/INSTALLATION.)
9	Fuel-filler lid opener cable (See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION.)
10	Liftgate latch and lock actuator (5HB) (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.) (See LIFTGATE LOCK ACTUATOR INSPECTION.) (See LIFTGATE LATCH SWITCH INSPECTION.)
11	Liftgate lock striker (5HB) (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
12	Trunk lid latch and release actuator (4SD) (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.) (See TRUNK LID LATCH AND RELEASE ACTUATOR INSPECTION.) (See TRUNK LID RELEASE ACTUATOR INSPECTION.) (See TRUNK LID LATCH SWITCH INSPECTION.)
13	Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
14	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.) (See REAR DOOR LOCK ACTUATOR INSPECTION.) (See REAR DOOR LATCH SWITCH INSPECTION.)
15	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION.) (See FRONT DOOR LOCK ACTUATOR INSPECTION.) (See FRONT DOOR LATCH SWITCH INSPECTION.)
16	Trunk lid lock striker (4SD) (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)

1	Keyless beeper (See KEYLESS BEEPER REMOVAL/INSTALLATION.) (See KEYLESS BEEPER INSPECTION.)
2	Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
3	Request switch (See REQUEST SWITCH REMOVAL/INSTALLATION.) (See REQUEST SWITCH INSPECTION.)
4	Advanced key (See ADVANCED KEY DISASSEMBLY/ASSEMBLY.) (See ADVANCED KEY ID CODE REGISTRATION.) (See CLEARING ADVANCED KEY.)
5	Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION.) (See KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
6	Keyless control module (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.) (See KEYLESS CONTROL MODULE INSPECTION [L.H.D.].) (See KEYLESS CONTROL MODULE INSPECTION [R.H.D.].) (See KEYLESS CONTROL MODULE CONFIGURATION.) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See PERSONALIZATION FEATURES SETTING PROCEDURE.)
7	Liftgate opener switch (5HB) (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.) (See LIFTGATE OPENER SWITCH INSPECTION.) Trunk lid opener switch (4SD) (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.) (See TRUNK LID OPENER SWITCH INSPECTION.)
8	Coil antenna (See COIL ANTENNA REMOVAL/INSTALLATION.)

1	Coil antenna (See COIL ANTENNA REMOVAL/INSTALLATION.) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM].)
2	Transmitter (See TRANSMITTER DISASSEMBLY/ASSEMBLY.) (See TRANSMITTER ID CODE REGISTRATION.)
3	Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION.) (See KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM].)

1	Intruder sensor (See INTRUDER SENSOR REMOVAL/INSTALLATION.) (See INTRUDER SENSOR INSPECTION.)
2	Theft-deterrent siren Tilt sensor (See THEFT-DETERRENT SIREN AND TILT SENSOR REMOVAL/INSTALLATION.) (See THEFT-DETERRENT SIREN AND TILT SENSOR INSPECTION.)
