REAR WASHER HOSE REMOVAL/INSTALLATION

id091900801600

Replacement Part

Rear Washer Hose A (Front Fender)

1.  Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

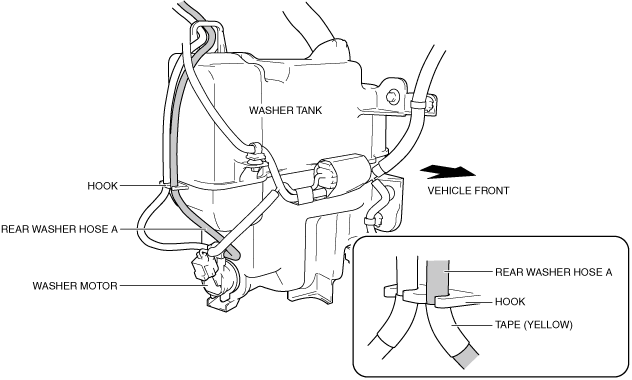

2.  Disconnect the rear washer hose A from the washer motor.

am6zzw00016641

3.  Remove the rear washer hose A from the washer tank hook.

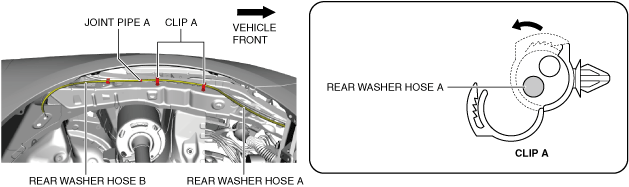

4.  Remove the rear washer hose A from clips A.

am6zzw00016642

5.  Disconnect the rear washer hose B from the joint pipe A.

6.  Remove the rear washer hose A.

7.  Install in the reverse order of removal.

Rear Washer Hose B (Front Fender—A-Pillar Trim)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the rear washer hose B from clip B.

am6zzw00016643

4.  Disconnect the rear washer hose B from the joint pipe A.

5.  Remove the following parts:

L.H.D.

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

4.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

5.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

6.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

7.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

8.  Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

R.H.D.

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

4.  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

5.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

6.  Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

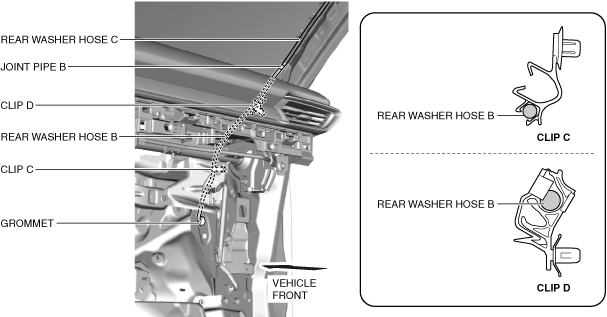

6.  Remove the grommet from the body.

am6zzw00016644

7.  Remove the rear washer hose B from clips C and D.

8.  Disconnect the rear washer hose C from the joint pipe B.

9.  Remove the rear washer hose B.

10.  Install in the reverse order of removal.

Rear Washer Hose C (Headliner)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

4SD

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

22.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

23.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

24.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

25.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

26.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

27.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

28.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

WGN

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Remove the tape shown in the figure.

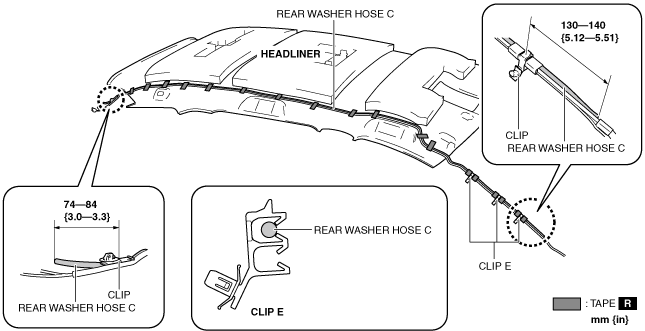

Without sunroof

am6zzw00016645

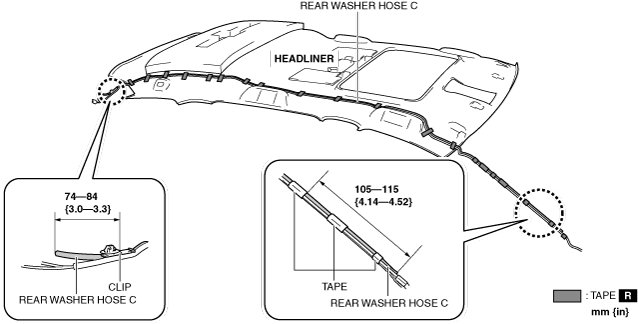

With sunroof

am6zzw00016646

4.  Remove the rear washer hose C from clips E.

5.  Remove the rear washer hose C.

6.  Install in the reverse order of removal.

Rear Washer Hose D (Headliner—Rear Washer Nozzle)

Note

•  The rear washer hose D can be removed without having to remove the headliner from the vehicle.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

4SD

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

12.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

13.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

14.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

15.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

16.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

17.  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

18.  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

21.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

22.  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

23.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

24.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

25.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

26.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

27.  Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION.)

28.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

WGN

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

8.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

9.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

10.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

11.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

12.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

13.  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

14.  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

15.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

16.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

17.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

18.  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

19.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

20.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

21.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

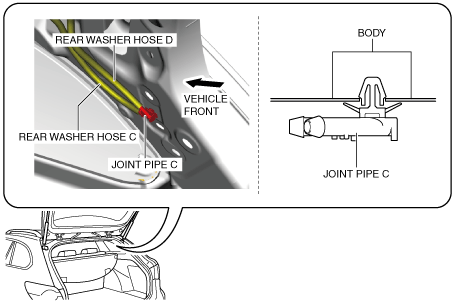

3.  Disconnect the rear washer hose C from the joint pipe C.

am6zzw00016647

4.  Remove the joint pipe C from the body.

5.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

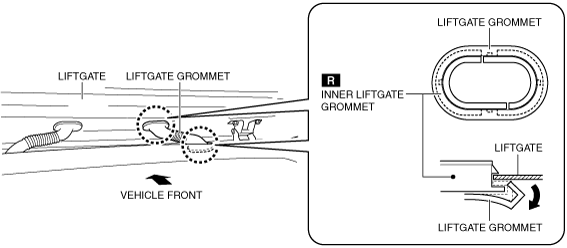

6.  Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

am6zzw00016648

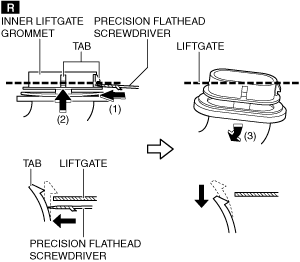

7.  Using a tape-wrapped flathead screwdriver, press the inner liftgate grommet tabs in the directions of arrows (1) and (2) shown in the figure and remove the inner liftgate grommet from the liftgate in the direction of arrow (3).

am6zzw00016649

8.  Remove the bolt. (With DAB antenna amplifier)

am6zzw00016650

9.  Remove the fastener. (With DAB antenna amplifier)

10.  Set the DAB antenna amplifier aside in the direction of the arrow shown in the figure. (With DAB antenna amplifier)

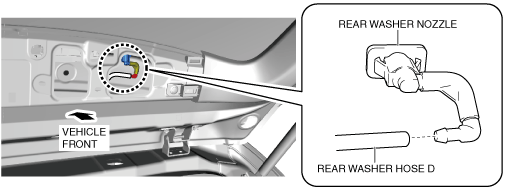

11.  Disconnect the rear washer hose D from the rear washer nozzle and remove it.

am6zzw00016651

12.  Install in the reverse order of removal.
