ENTERTAINMENT LOCATION INDEX

id092000800100

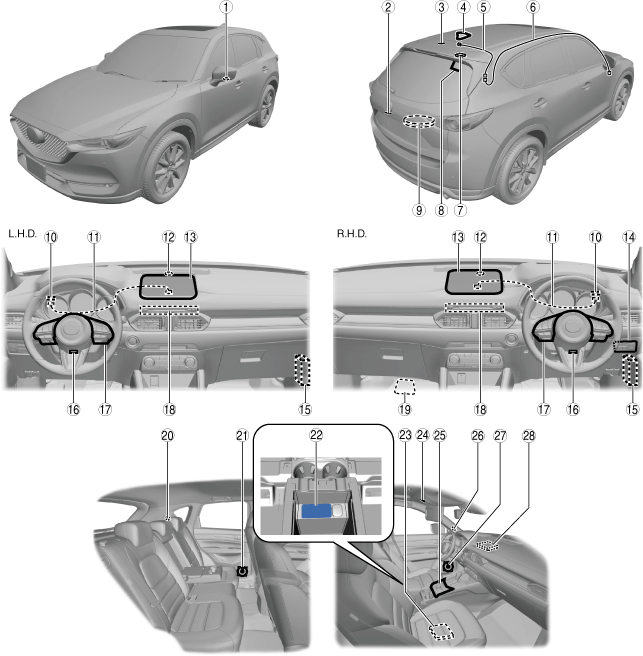

With Center Display

ac5wzw00009942

1	Side camera (with parking assist system) (See SIDE CAMERA REMOVAL/INSTALLATION.) (See SIDE CAMERA INSPECTION.) (See SIDE CAMERA AIMING.)
2	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)
3	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
4	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
5	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
6	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
7	DAB antenna amplifier (with DAB radio) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
8	Glass antenna (with DAB radio) (See GLASS ANTENNA INSPECTION.)
9	Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.) (See BASS-BOX INSPECTION.)
10	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
11	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
12	Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See FRONT CENTER SPEAKER INSPECTION.)
13	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
14	Monitor switch (See MONITOR SWITCH REMOVAL/INSTALLATION.) (See MONITOR SWITCH INSPECTION.)
15	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)
16	AudioPilot ® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION.)
17	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
18	CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)
	DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL/INSTALLATION.)
19	Parking assist unit (optical) (with parking assist system) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION.)
20	Rear speaker (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
21	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
22	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
23	Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
24	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
25	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
26	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
27	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
28	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)

Without Center Display

ac5wzw00010194

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
3	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
4	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
5	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
6	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
7	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
8	Bluetooth® unit (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
9	CD player (with CD player) (See CD PLAYER REMOVAL/INSTALLATION.)
10	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
11	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
12	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
13	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
